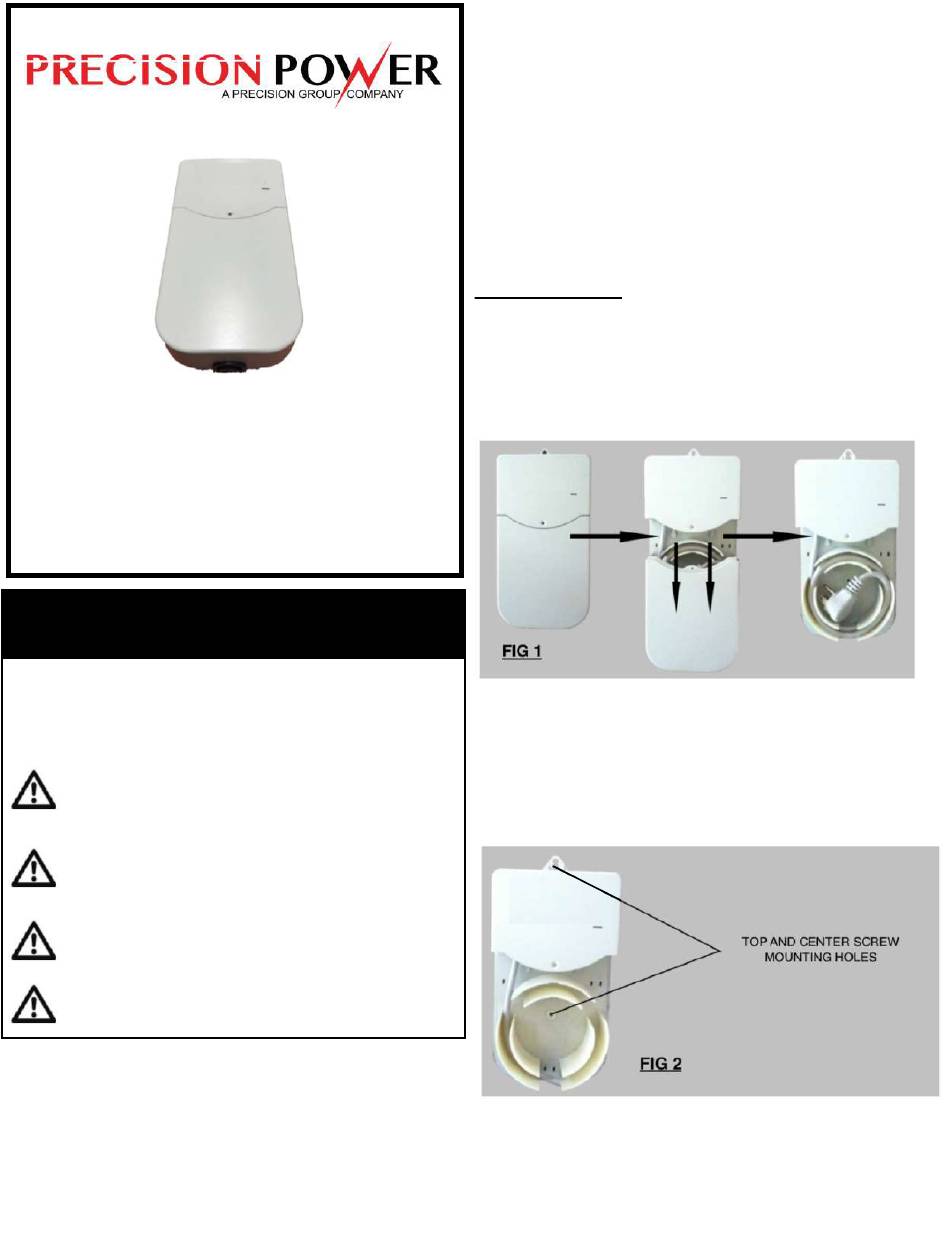

Precision Power PP36PB-12-EX User Manual

USER'S MANUAL FOR
Precision Power
Model Number: PP36PB-12-EX
Review the following important safety warnings to avoid bodily
injury or damage to equipment during installation or operation of
this device.
Read ALL instructions before attempting to install or operate this
device.
This device is intended for indoor use only. To prevent
the risk of fire or eletrical shock, install in dry location
free from damp or wet environment, or potentially damp
or wet environment.
Adhere to all acceptable operating environment
limitations as listed to prevent the risk of of fire or
electrical shock (see user specifications within User's
Manual)
NO user-replaceable parts within this device. To avoid
bodily injury, risk of fire or electrical shock do not attempt
to remove cover of device.
Device is not designed for use with any alternate
connection to AC power than as stated within user
specifications of this user's manual.
NOTE: The reference to "PB36-EX" within this User Manual
refers to Precsion Power Model PP36PB-12-EX and all
package accessories as listed below.
CONTENTS OF NXGM PACKAGE
NOTE: Please verify all standard contents are accounted for
upon receipt of PB36-EX
STANDARD: (1) DC Outdoor Rated Power Supply;(3) Cable
Ties; (1) 3- Pin Connector; (1) User's Manual
WARNINGS

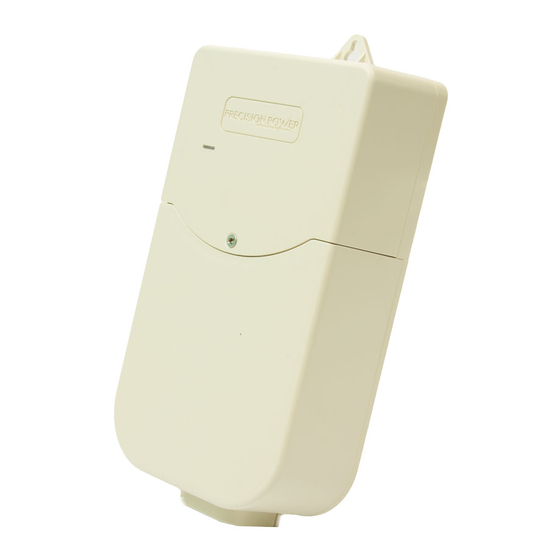

PB36 INTRODUCTION
The PB36-EX is designed and intended for use as an indoor or
outdoor rated, compact, wall mountable Vdc power supply for
devices with max rating of 12Vdc 36Watts. Specifically for use
with Indoor or Outdoor Rated 12Vdc Optical Network
Terminals. The PB36-EX is designed to provide constant
supply of 12Vdc output power during normal operating
conditions. PB36-EX is also designed with internal charging
functionality equipped to supply direct DC power and battery
INSTALLATION
STEP 1: INSPECT PACKAGE TO VERIFY ALL STANDARD CONTENTS ARE
ACCOUNTED FOR. REVIEW "CONTENTS OF NXGM-EX PACKAGE" FOR LIST OF
STANDARD CONTENTS
STEP 2: REMOVE CABLE STORAGE AND MANAGEMENT COVER (SEE FIG 1)
STEP 3: SECURE PB36-EX TO INTERIOR OR EXTERIOR WALL USING #8 OR #10
SCREWS (NOT INCLUDED). PLACE SCREWS IN TOP AND CENTER SCREW
MOUNTING HOLES ON PB36-EX (SEE FIG 2).
NOTE: ENSURE PB36-EX IS SECURED TO FLAT AND EVEN SURFACE. WALL
ANCHORS (NOT INCLUDED) MAY BE NEEDED FOR INSTALLING ON DRY WALL
FOR PROPER SECUREMENT.
