Summary of Contents for Renewal Technologies LaserTouchOne

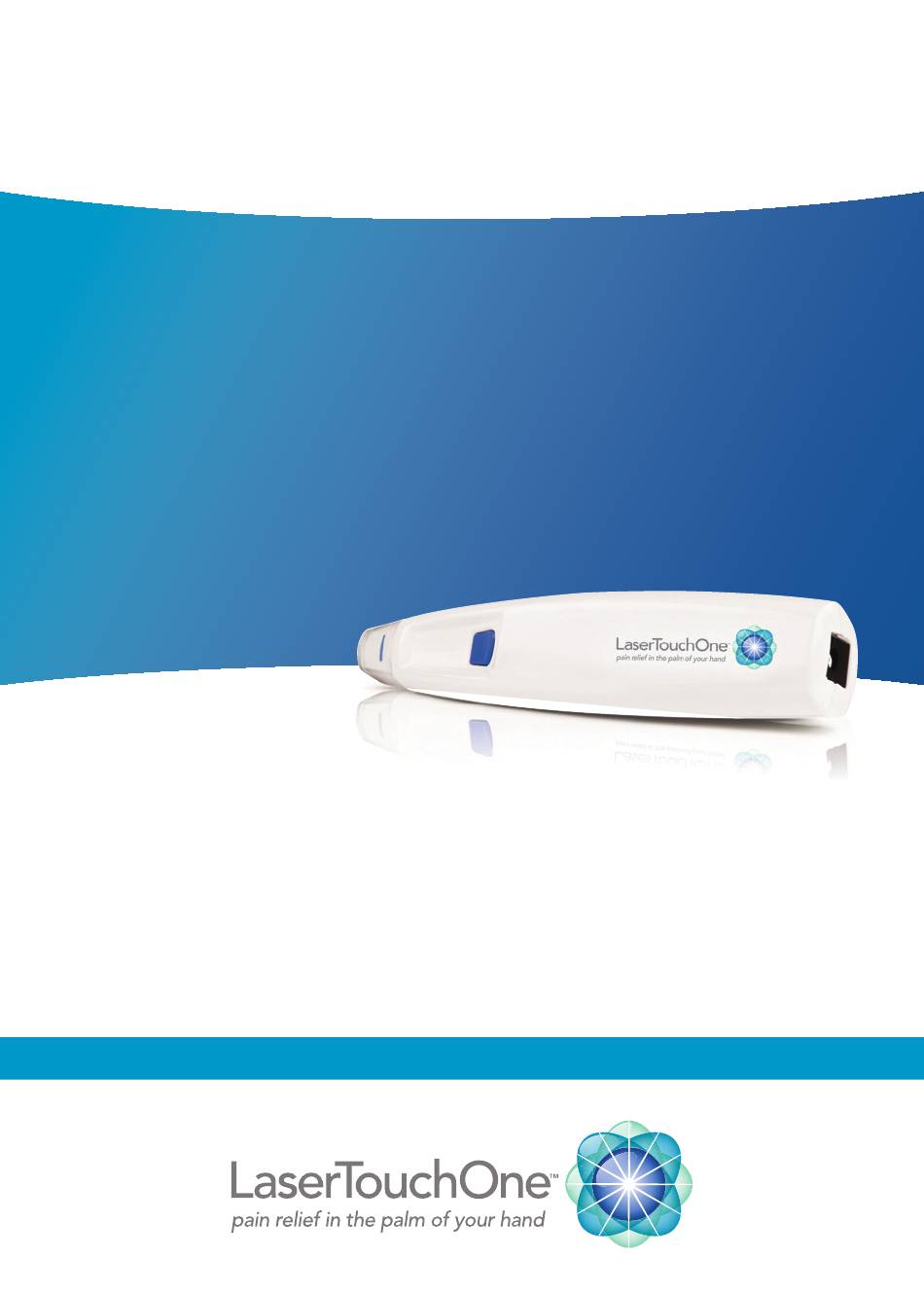

- Page 1 User Manual...
-
Page 2: Table Of Contents
User Manual Table of Contents Introduction – The LaserTouchOne™ ........3 Device Features and Controls (Photo of device) ..... 4 Product Contents ..............4 Laser Safety ................4 Electrical Safety ..............5 Instructions for Using the LaserTouchOne™ Charging the Unit ..............5 Holding the Device .............. -
Page 3: Introduction - The Lasertouchone
Introduction – The LaserTouchOne™ (OTC) The LaserTouchOne™(OTC) (referred to further as simply LTO) is a rechargeable hand-held pain therapy device. It has a single diode laser for delivery of low level laser therapy, referred to by some as a ‘cold laser’ or LLLT. The single laser source is extremely low power (<... -

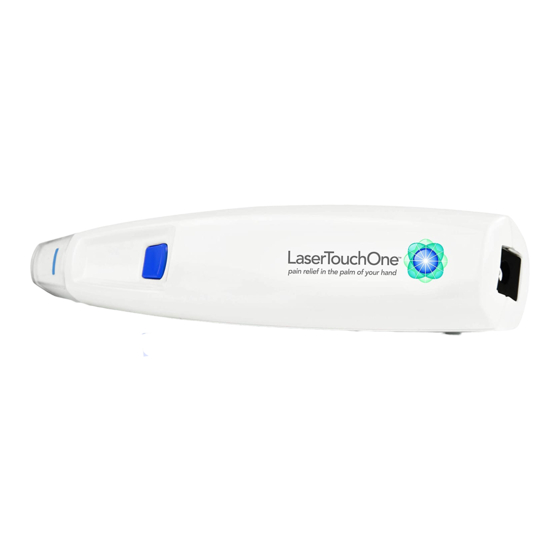

Page 4: Device Features And Controls (Photo Of Device)
Laser Output in Center Electrode Contacts on each side of laser Product Contents The shipping box should contain the following device components: • LaserTouchOne™ treatment unit • Power cord for recharging the battery • Tube of electroconductive gel • Warranty card • User Manual Inspect contents to ensure there is no obvious damage to the LTO treatment device or the gel tube. -
Page 5: Electrical Safety
Electrical Safety – Use care when plugging the power cord into the wall outlet for recharging the LTO device. See the picture below for the power charging unit which is provided with the device. It is UL certified as safe for use with this device. Instructions For Use: Charging the Unit The device will need to be fully charged for at least 5 hours prior... -
Page 6: Treatment Steps
Step 2: Apply Gel Apply a small amount of gel to the area you wish to treat. Step 3: Turn on the LaserTouchOne™ Push the on/off button on the LTO once. Step 4: Apply the LaserTouchOne™ Use a paint-stroke or circular motion to treat the painful area. - Page 7 NOTES REGARDING SETTING THE ELECTRICAL STIMULATION INTENSITY: • If you have limited or no skin sensitivity in the area you plan to treat, test the intensity of the stimulation on a sensitive area (such as between your thumb and first finger, or on top of your hand) before starting treatment. This will ensure that you do not turn the setting too high. • Effective treatment can be achieved with only a slight tingle sensation of the micro-current electrical stimulation.
-
Page 8: Areas To Avoid
Indications for Use The LaserTouchOne™ device combines a low level laser and micro-current electrical stimulation. This combination of low level light and electrical stimulation provides symptomatic relief of chronic,... -
Page 9: Warnings
Warnings • Because the device contains a laser, do not shine it directly into your eyes or look directly at the laser light. Do not point the LTO device at your or another person’s eyes. Do not look • The safety of TENS devices on pregnant women has into the laser not been established. light and do not point • The device should be applied only to normal, intact the light at... -
Page 10: Precautions
Precautions • If you have a suspected or diagnosed heart condition (such as irregular heart beat, cardiac arryhthmia) or epilepsy, you should consult with your physician before using the LTO device to treat any pain condition. • The long-term effects of prolonged exposure to non-thermal laser and electrical stimulation are unknown. • Electrical stimulation (TENS) is not known to be effective in treating pain of central origin, including headache. -
Page 11: Care And Maintenance
Care and Maintenance Like any electronic product, the LTO requires proper care and handling. The following is recommended: • Do not disassemble the device. Do not try to remove the clear cover at tip of unit. • Do not drop the device or handle it roughly. • Do not immerse the device in water or any liquid. • Use the gel sparingly – only a small amount is needed on the skin. • After each treatment, wipe the treatment end of the device clean of any gel with a slightly damp cloth. • If using the device on more than one person, carefully decontaminate the treatment end, including the stainless steel electrodes with a moist... -
Page 12: Warranty
Warranty The LaserTouchOne™ carries a 1-year warranty. If your device should malfunction due to defective materials and/or workmanship, it is fully guaranteed for one year from the date of purchase, providing: • the enclosed warranty card is mailed to Renewal Technologies within 10 days of purchase; • the LTO is returned for servicing to Renewal Technologies;... -
Page 13: More Questions
More Questions? Call or e-mail Renewal Technologies for any additional information at 877-751-7665 or info@renewaltechnologies.com. View instructional videos at www.LaserTouchOne.com. -
Page 14: Technical Specifications
LaserTouchOne™ Specifications Laser LASER Type Laser Diode Wavelength 670nm +/- l0nm Power 1.2mW Transcutaneous Electrical Nerve Stimulation Waveform, shape Pulsed, rectangular Maximum output 15V @ 500 ohm load voltage 150V @ 10K ohm load Maximum output 30 mA peak at 500 ohm current load Pulse width 6 –... -
Page 15: Glossary
Glossary ADJUNCTIVE TREATMENT – Treatment used together with the primary treatment. Its purpose is to assist the primary treatment. CARDIAC ARRHYTHMIA – An abnormal rate of muscle contractions in the heart. CONTRAINDICATIONS – To make (a treatment or procedure) inadvisable. DIODE –... - Page 16 Renewal Technologies 3315 West Buckeye Road, Suite A Phoenix, AZ 85009 Phone: 480-588-7887 info@renewaltechnologies.com www.LaserTouchOne.com...
