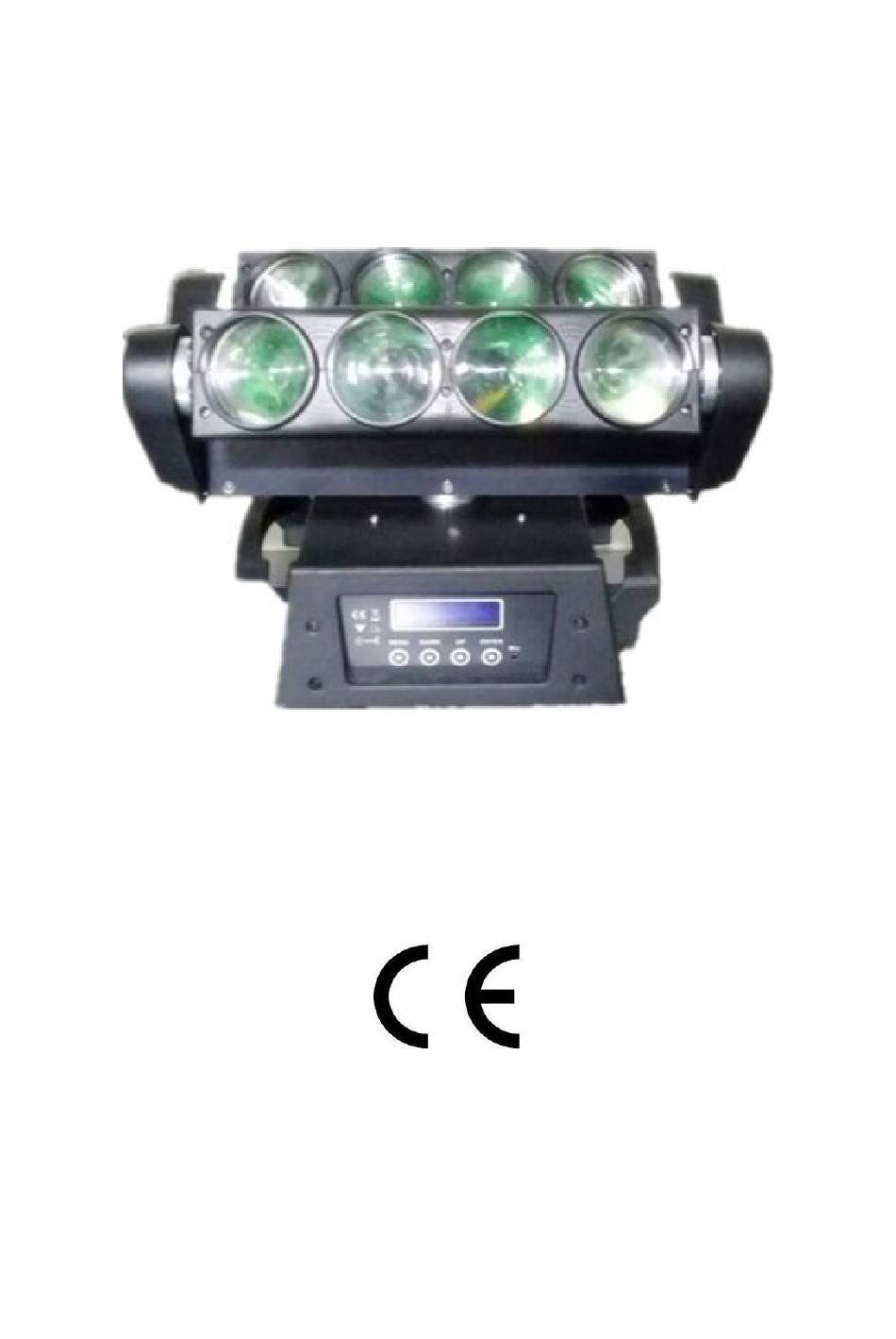

  • Page 1 LED Moving Head Beam 8 eyes Light USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...
  • Page 2 Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
  • Page 3 Please check carefully that there is no damage caused by transportation. Should there be any, please consult your dealer and don’t install this device. 2 Mounting and installation 2.1 Cautions: for added protection mount the fixyures in areas outside walking paths ,seating areas,or in areas were the fixture might be reached by unauthorized personnel.
  • Page 4 installation material and the fixture. If you lack these qualifications , Do not attempt the installation yourself ,improper installation can result in bodily injury. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. 2.3 Clamp mounting : The LED moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included ‘omega bracket’...
  • Page 5 2.4 DMX-512 control connection Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking.

  • Page 6: Technical Parameters

    fixture in the chain. Please see illustrations below. 3 TECHNICAL PARAMETERS POWER SUPPLIE Input power:AC100-240V 50/60 Hz LED:8PCS 10W high power RGBW LED DMX channel:13/46channels Movement:Pan/Tilt:X axis540degree, Y1 axis 120degree, Y2 axis120degree Control mode:DMX512/Master-Slave/Auto run Display:Blue blueground LCD display Beam angle:3degree Pan/tilt speed:3 selectable for High, medium and low speed WEIGHT&SIZE N.W: 9kgs...

  • Page 7: Menu Function

    4 :MENU FUNCTION 1DMX Address Address =001 2DMX Mode DMX Mode .=DMX 13 Channel .=DMX 46 Channel 3Run Mode Run Mode .=Master .=Slave 4 Auto Play Internal Program .=001 .=002 .=003 .=004 .=005 .=006 .=007 .=008 5Sound Ctrl Mode .=OFF .=ON 6Reverse .=OFF...
  • Page 8 Dimmer Dimmer =000 =000 PAN-Fine PAN-Fine =000 X MoveSpeed X MoveSpeed =000 TILT1 TILT1 =000 TILT2 TILT2 =000 Y Move Speed Y Move Speed =000 Dimmer Dimmer =000 Strobe Strobe =000 Manual Control 3 Red1 Red1 =000 Green1 Green1 =000 Blue1 Blue1 =000...
  • Page 9 5:Function Mode 5.1 DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. Select via the encoder. Press the encoder, adjust the DMX address by turning the encoder. Press the encoder to confirm. Press the Mode/Esc-button in order return to the main menu. Set DMX address Display the DMX 512 value of each channel With this function you can display the DMX 512 value of each channel.

  • Page 10: Dmx Channels

    With this function you can reverse the Pan-movement. 5.7 Tilt 1 Reverse With this function you can reverse the Tilt 1-movement. 5.8 Tilt 2 Reverse With this function you can reverse the Tilt 2-movement. 5.9:Reset With this function, you can reset the device via the Control Board.You can select the different reset function by turning the encoder.
  • Page 11 Channel DMX Value Function 000 - 255 000 - 255 000 - 255 000-255 Dimmer(0-100%) 000-9 Shutter closed 010-250 Strobe effect slow to fast 251-255 Shutter open 000-255 R(ALL) 000-255 G(ALL) 000-255 B(ALL) 000-255 W(ALL) 000-007 Empty 008-017 R1,2,3,4 018-027 R5,6,7,8 028-037 G1,2,3,4...
  • Page 12 138-163 X/Y auto run 6 164-189 X/Y auto run 7 190-240 X/Y auto run 8 241-255 X/Y sound 46 channel definition table Channel DMX Value Function 000 - 255 000 - 255 X Fine 000 - 255 X Motor Speed 000 - 255 000 - 255 Y1 Fine...
  • Page 13 000-255 Blue5 000-255 White5 000-255 Red6 000-255 Green6 000-255 Blue6 000-255 White6 000-255 Red7 000-255 Green7 000-255 Blue7 000-255 White7 000-255 Red8 000-255 Green8 000-255 Blue8 000-255 White8 000-007 Empty 008-017 R1,2,3,4 018-027 R5,6,7,8 028-037 G1,2,3,4 038-047 G5,6,7,8 048-057 B1,2,3,4 058-067 B5,6,7,8 068-077...
  • Page 14 086-111 X/Y auto run 4 112-137 X/Y auto run 5 138-163 X/Y auto run 6 164-189 X/Y auto run 7 190-240 X/Y auto run 8 241-255 X/Y sound...
