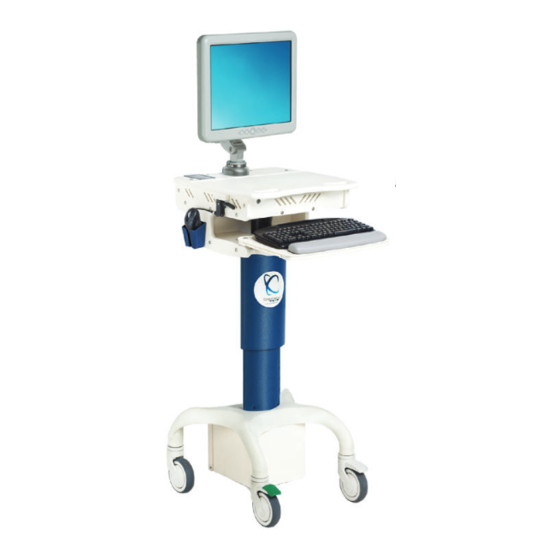

CompuCaddy Fusion Hybrid Series Owner's Manual

Mobile computer cart
Hide thumbs
Table of Contents

Advertisement

Quick Links

CompuCaddy
®

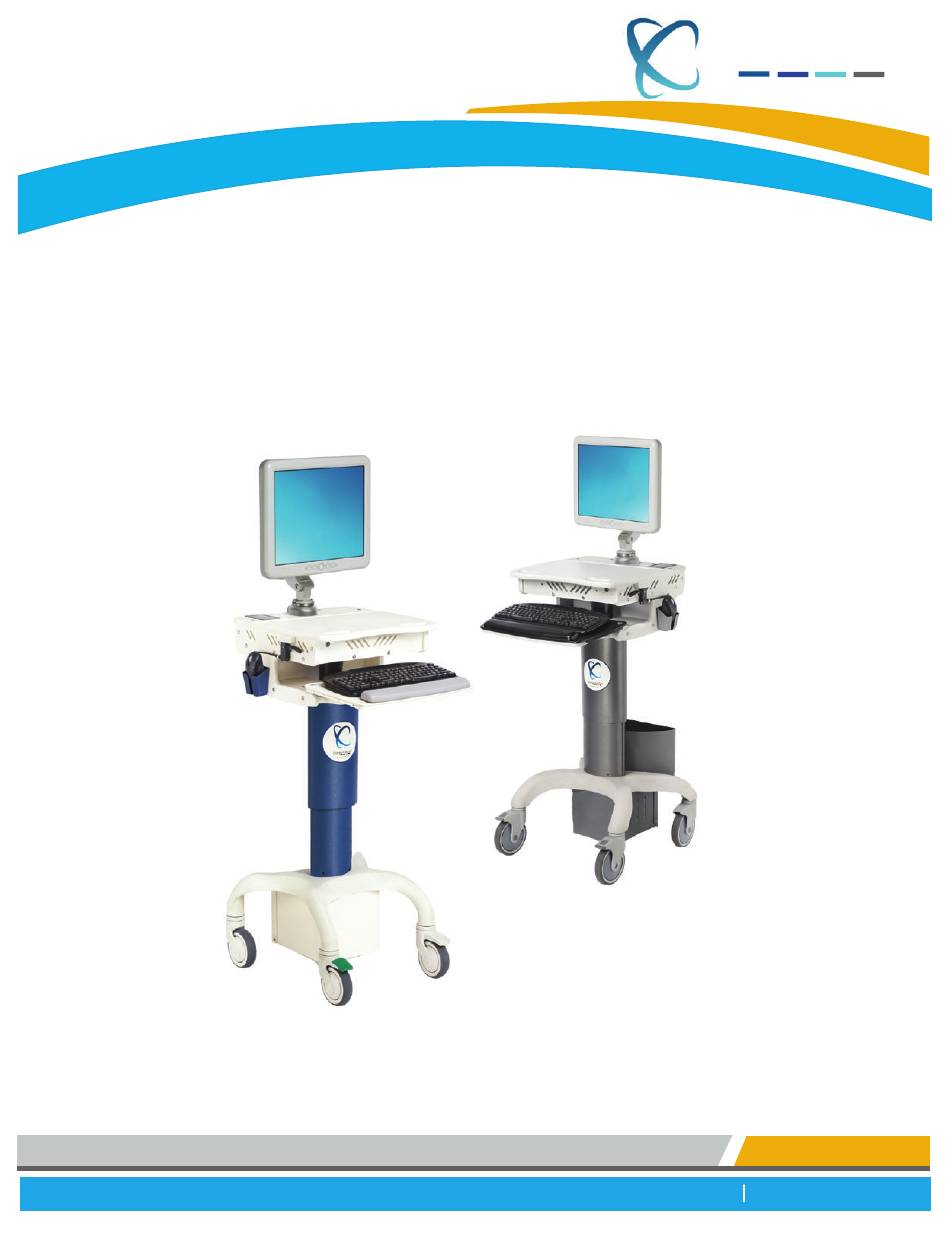

CompuCaddy Mobile Computer Cart
Owner's Manual
Fusion & Cynergy Series Hybrid Cart
MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS
www.compucaddy.com
502.561.0732

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fusion Hybrid Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CompuCaddy Fusion Hybrid Series

  • Page 1 CompuCaddy ® CompuCaddy Mobile Computer Cart Owner's Manual Fusion & Cynergy Series Hybrid Cart MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 2 Our Quality is Guaranteed... Our goal at CompuCaddy is to maintain high standards of quality and therefore we continue to invest significant resources in research, product development and production. Our products are carefully designed, well built and thoroughly tested. Of course, design is all about looking good, but good design also means safety in use and ease of cleaning/maintenance.
  • Page 3 All rights reserved. DISCLAIMER While every precaution has been taken to ensure the accuracy of the contents of this guide, CompuCaddy assumes no responsibility for errors or omissions. Specifications and product functionality may change without notice. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 4: Table Of Contents

    3.1 Lithium Iron Phosphate Start up 3.2 SLA Set up 3.3 Battery Software Installation 4. Cart and Power System Features 4.1 Cart Features 4.2 Add on Drawer 4.3 Power Meter Features MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 5 Table of Contents 5. Cart Care & Troubleshooting 5.1 Cart Care 5.2 Cart Troubleshooting 6. Specifications 6.1 Cart Specification Sheet 7. Warranty 7.1 Cart Warranty 7.2 Power System Warranty MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...

  • Page 6: Safety

    DO NOT use any type of cleaning solvent or cloth to clean the mobile cart's power system. Failure to do so can result in injury and/or death. Contact CompuCaddy immediately if a problem arises with the mobile cart. ** (502) 561-0732 or techsupport@compucaddy.com ** MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 7: Cart Storage

    If storing the cart for future deployment: Step 1. Power down all computer equipment and peripherals on cart. (if applicable) Step 1. Ensure cart is stored in a safe and dry location. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...

  • Page 8: General Information

    General Information Locate Your Cart's Serial No. CompuCaddy ® Phone: (502) 561-0732 www.compucaddy.com Input : 120Vac 50/60Hz Output : 12Vdc 20Adc Battery : 12V 38.4Ah (2x19.2Ah) Rechargeable Lithium Iron Phosphate Circuit 2x AGC 20amp / 32 VAC Fuse Protection :...

  • Page 9: Unpacking The Cart

    CompuCaddy ® Unpacking the Cart IMPORTANT!! Inspect contents immediately for damage. Contact CompuCaddy @ ( immediately if damage is discovered. *Keep original packaging for return of damaged goods.* Contents: (1) Mobile Computer Cart Start-up Kit (1) Monitor Arm ( 1 Kit per 10 carts) Note: monitor arm is not included with Laptop Cart.

  • Page 10: Start Up Kit Contents

    Fuse Cap and Fuse - MUST be inserted into side of battery box prior to initializing power system (2) for 38.4amp - See Initial Power System Start Up instructions (3) for 57.6amp MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...

  • Page 11: Initial Cart Setup

    Step 3. Secure the mounted monitor to the monitor arm via the slider knob. See Figure D turn slider knob clockwise to secure vesa plate with monitor to monitor arm Figure D MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...

  • Page 12: Connecting Hardware

    Step 4. Using provided wire management clips, secure excess keyboard and mouse cords inside cart top. This will prevent obstruction to the retractable keyboard tray. See Figure C Figure C MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 13 (located behind the keyboard tray) See Figure C Power "Snap" Box monitor connection DC output connection ("Snap" Box) located behind keyboard tray wire panel. Figure C MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 14 Step 1. Connect the computer's AC power cord to the computer and the other end to the AC Module. See Figure B AC output connection computer connection located inside cart compartment Figure B MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...

  • Page 15: Wire Management

    Step 2. Wrap end "B" of the (2) monitor arm wire management clip around loose cables and fasten into end "A". Cables are now secured to the monitor arm. See Figure B Figure B MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 16: Lithium Iron Phosphate Start Up

    Note: if the PowerTrac Battery Meter is not AC / TIME TO CHARGE working as described in Step 2 and/or Step 3 -- : -- contact CompuCaddy Tech Support @ (502 561 0732 DC / TIME REMAINING if the PowerTrac Battery Meter is working properly, CompuCaddy proceed to Step 4.
  • Page 17 3 months while cart is being stored. Failure to do so could permanently damage the battery and void the battery warranty. For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 18: Sla Set Up

    Note: if the PowerTrac Battery Meter is not -- : -- working as described in Step 2 and/or Step 3 DC / TIME REMAINING contact CompuCaddy Tech Support @ (502 561 0732, CompuCaddy if the PowerTrac Battery Meter is working properly, proceed to Step 4.
  • Page 19 3 months while cart is being stored. Failure to do so could permanently damage the battery and void the battery warranty. For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 20: Battery Software Installation

    IT personnel easy access to vital power system information and a true state of charge. To utilize the full potential of the cart's power system, CompuCaddy strongly recommends installing the Battery Monitoring Software upon intial setup of the mobile cart. Please refer to the Power System Manual for detailed information regarding the Battery Monitoring Software.
  • Page 21 Step 5. Select "Next". See Figure B Figure B Step 6. Allow program to load. See Figure C Figure C For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 22 Battery Monitoring Software has successfully been installed. Continue to Step 9 for instruction on accessing the Advanced Screen. Figure C For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 23 Note: for detailed explanation of Advanced Screen Button functions, refer to the CompuCaddy Power System Manual. Figure A Advanced Screen For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 24 Step 17. Boot the host computer up and the on-screen PowerTrac Battery Meter will automatically pop-up. Note: if you continue to get the "No USB Detected" error, contact CompuCaddy Tech Support @ (502) 561-0732. For further power system information refer to the CompuCaddy Power System Instruction Manual.
  • Page 25 MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS CompuCaddy ® 502.561.0732 FEATURES AT-A-GLANCE FUSION HYBRID 50° MONITOR ARM 360° TILT SWIVEL 1. Loosen (4) screws on monitor mounting plate 1. Turn monitor to left/right for shared/private viewing. using a phillips screwdriver.
  • Page 26 MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS CompuCaddy ® 502.561.0732 FEATURES AT-A-GLANCE CYNERGY HYBRID 50° MONITOR ARM 360° TILT SWIVEL 1. Loosen (4) screws on monitor mounting plate 1. Turn monitor to left/right for shared/private viewing. using a phillips screwdriver.

  • Page 27: Add On Drawer

    Lift drawer tray out of drawer. See Figure C Note: If drawer comes completely off slides, Figure C realign left and right slide sections and firmly push drawer back into drawer housing. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com...

  • Page 28: Power Meter Features

    A "Real Time" clock is featured to CompuCaddy provide complete accuracy for time remaining until discharge or time remaining to full charge. For further power system information refer to the CompuCaddy Power System Manual. MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 29 - Insure all areas of the cart are completely dry before inserting cart's power cord plug into a wall outlet. Maintaining Your Mobile Cart To keep your mobile cart in optimal condition, CompuCaddy recommends performing the following: (including, but not limited to) Daily - Sanitize the cart from top to bottom - Ensure the cart is given a "Full Charge"...
  • Page 30 Casters should be checked periodically to insure they are free of any debris for proper functioning. These guidelines are ONLY for cleaning the mobile cart. See manufacturer's manual for cleaning instructions of other devices (keyboard/mouse, monitor, scanners, etc.) MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 31 The casters on my cart are not rolling 1. Check for any debris buildup in or around casters. properly. 1. Call a CompuCaddy Account Manager for a replacement key. I have lost the key to the computer compartment of my Hybrid or Laptop cart.
  • Page 32 1. Ensure the AC inverter is turned ON and plugged into the hypertronics connection. 2. Using a Multi-Meter, check the voltage at the hypertronics connection located on the cart sleeve. 3. If power is sufficient to the hypertronics and the AC inverter is turned ON, call CompuCaddy Tech Support for further diagnostics.
  • Page 33 AC wall outlet. 2. If the coiled/retractable cord is working properly, call CompuCaddy Tech Support for further diagnostics. 1. Ensure the external fuse on the battery box is in place and not There are no lights displaying on the blown.
  • Page 34 180° tilt, 360° swivel, 30 lb capacity 180° tilt, 360° swivel, 30 lb capacity 20.5" W x 13" D Worksurface Area 20.5" W x 13" D Worksurface Height 36.5" to 48.5" 35" to 44" MOBILE COMPUTER CARTS, POWER SYSTEMS, AND WALL MOUNTS www.compucaddy.com 502.561.0732...
  • Page 35 CompuCaddy mobile computer carts excluding CompuCaddy Power System, accessories, and or additions made to the cart that are not installed by CompuCaddy, will have a 5 year guarantee from the purchase order date. This warranty is applicable for all parts. In addition, this warranty is only applicable to the labor that is performed on the work premises of CompuCaddy and therefore does not cover any labor charge incurred elsewhere.
  • Page 36 CompuCaddy Power System Components & Accessories Warranty All power system components & accessories manufactured or supplied by CompuCaddy are warranted to be free from defects in material and workmanship under normal use and service. The following items with their applicable warranty timeframe are as follows.
  • Page 37 CompuCaddy Power System Components & Accessories Warranty (cont.)  This warranty is applicable for parts and labor performed only at the work premises of CompuCaddy and therefore does not cover any labor charge incurred elsewhere. CompuCaddy will pay for shipping charges on items that are covered under warranty.
