Summary of Contents for Attacus Star2

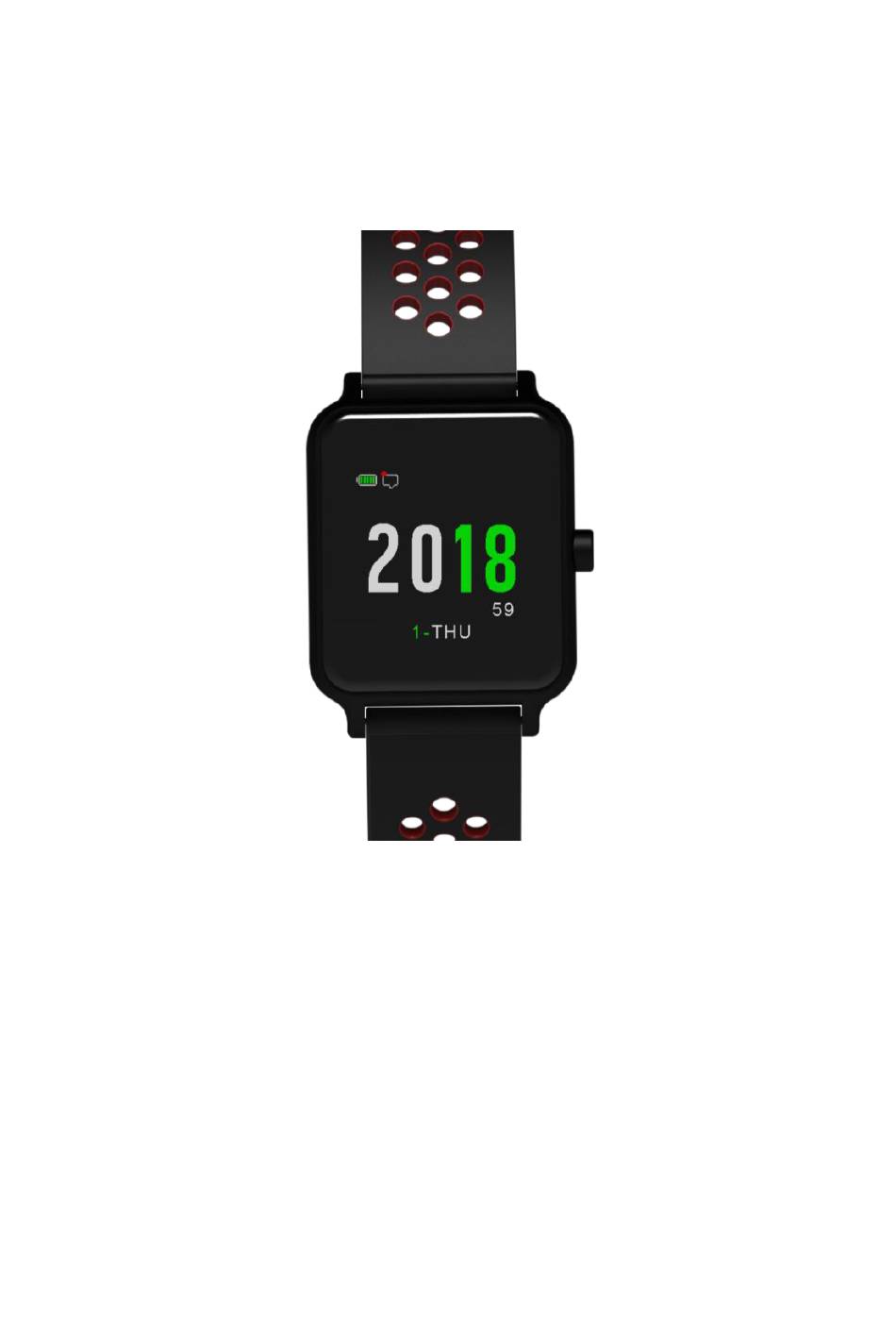

- Page 1 Star2 Star 2 GPS Sports Watch...
-
Page 3: Table Of Contents
Table of Contents Safety Precaution ............1 Icons for Safety Precautions ................1 Safety Precautions.................... 1 Set up Star 2 .............. 3 Installing the Watch Band ................3 Charging for Star 2 ................... 3 Setting up Star 2 ....................4 Pair with Ala Connect App ................ - Page 4 8.1.1 Activity Records ..................20 8.1.2 Best Records ...................20 8.1.3 Activity Totals ..................20 8.1.4 Daily Tracking Log ...................20 8.1.5 Delete .....................21 Activity Preference ..................21 Widget Settings ....................22 8.3.1 Widget Management ................22 8.3.2 Watch Face .....................22 8.3.3 Notification ....................22 8.3.4 Heart Rate ....................23 8.3.5 Step Tracking ..................23 8.3.6 Digital Compass ..................23 8.3.7 Altimeter ....................24...
-
Page 5: Safety Precaution
1 Safety Precaution 1.1 Icons for Safety Precautions Icon Definition This icon indicates actions that may cause serious injury or even Warning death if neglected and should be read prior to the use of the product. Indicates information that should be read prior to the use of the Attention product, if neglected may cause damage to the product. - Page 6 Operation Guide...
-
Page 7: Set Up Star 2
2 Set up Star 2 Please charge Star 2 before your initial use and install the Ala Connect App onto your device. Please update according to the instructions on screen for operations and system upgrade. 2.1 Installing the Watch Band The watch band has quick-release pins, slide the spring bar to the left to release or installing new band. -
Page 8: Setting Up Star 2
on, the longest battery life is up to 10 to 13 hours. Actual battery life may vary due to charge cycle or other factors. 2.3 Setting up Star 2 When turning on Star 2 for the first time, a tutorial for the screen and button operation will be displayed on the watch screen. -
Page 9: Update And Set Up Star 2
Please key in the accurate personal information so that the system could use the right data to provide personalized workout analysis and training menu. Your data is not public by default. 4) On your device, select Device > Add a Device, shown as [+] > select Star 2. You should be able to see the Star 2 image on screen for you to select. - Page 10 Ⓡ Wi-Fi or Bluetooth devices might be ineffective in an environment with wireless interference. If errors do occur during the downloading process, please consider the following steps: ⚫ Turn off the Bluetooth Ⓡ and Wi-Fi on your device and turn it back on. ⚫...
-
Page 11: Touch Screen And Button
3 Touch Screen and Button Star 2 has only one button, most operations can be done with the touch screen. For the screen: Select Press the Button Swipe Left/ Right Home (Time) Start Recording Lap Key Swipe Up/Down Swipe down from the top Press and Hold of the screen Pausing Record... -
Page 12: On The Menu
3.2 On the Menu ⚫ On the Time Screen, press and hold the button to enter Menu. ⚫ Swipe up or down to view. ⚫ Tap on the selected option. ⚫ Swipe left to enter more setting pages. ⚫ Swipe right to cancel and or return to the previous page. ⚫... -
Page 13: Optical Heart Rate Monitor
4 Optical Heart Rate Monitor 4.1 Optical Heart Rate Technology Star 2 has built-in optical heart rate sensor that uses light to measure the changes in tissue caused by blood circulation under the area of the sensor. When you are wearing Star 2, the optical heart rate monitor can track your heart rate and collect the changes throughout the day;... -
Page 14: Possible Reasons For Inaccurate Measurement
keep talking power Hard Feeling Increase speed strenuous, Get faster & 80~90 75~85 Anaerobic & lactate can’t talk stronger threshold comfortably Very Hard Out of breath & Maximum Explosive power Explosive power short heartbeat Effort 4.3 Possible Reasons for Inaccurate Measurement Optical heart rate sensor has been widely applied for its accuracy and applicable quality. -
Page 15: Icons
5 Icons Power off Low Power mode (in Control Center) Do not disturb Screen lock Low Battery Low Power Mode (on the Time Screen) Charging New (unread) notification Phone call Screen lock (on the Time Screen) Heart Rate Heart Rate Broadcast mode Ⓡ... -
Page 16: Display Breakdown
6 Display Breakdown At Time Screen Activities Menu Press and Hold Menu More Features History Activity Pref. Press Activities Menu Activity Records Widgets Cycling Activity Pref. 總距離 Press the Button to Go Pace in KM More Features 00'00" Total time 00:00:00 Press to Go TTL. -
Page 17: Widgets
7 Widgets Star 2 is built-in with many useful widgets. You can swipe up or down on the Time Screen to view them. ☞If you can’t see the following widgets, please see 8.3.1 Widget Management enable your widgets. ☞Some widgets have line graphs to indicate changes. You can see the most recent information on the right and the oldest on the left. -
Page 18: Heart Rate
⚫ Reset the Wi-Fi and Bluetooth Ⓡ on your mobile device. ⚫ Restart Ala Connect, make sure authorization for notification is enabled. ⚫ Make sure Ala Connect and Star 2 are successfully connected. If this icon shows, it A ✔ will appear when they means the connection is are connected successfully. -
Page 19: Heart Rate Broadcast Mode
ANT+ device or equipment has different paring method. Please consult each of its user manual. ⚫ Cycling computer ⚫ Fitness equipment, such as ATTACUS Treadmill, Spinning Bike, and Rower. ⚫ Mobile application, such as Wahoo Fitness and Nike Run Club. 7.3 Daily Step Count Daily Step Count collects your daily steps and moving distance. -
Page 20: Calories Tracking
1) On the Time Screen, swipe up to Daily Step Count. The page will collect your step count of the day in bigger numbers; the smaller number below is the step goal. 2) Swipe left to see the distance and elevation of the day. 3) Swipe left again to see your average step count of the past 7 days in a bar char, you can analyze your activity base by compare and contrast your daily performance. -
Page 21: Temperature
7.5 Temperature You can view the current temperature around the sensor and observe changes in Temperature throughout the past 4 hours 1) On the Time Screen, swipe up to Temperature. On the Temperature page, you will see icon and the current temperture beside it. -
Page 22: Altimeter
⚫ Antenna. ⚫ Motor of any kind. ⚫ Home use electronic device, such as TV, computer, and phone. 7.7 Altimeter Your current altitude is measure by the altimeter. 1) On the Time Screen, swipe up to Altitude. On the Altitude page, there is an icon with your current altitude beside it. - Page 23 ☞You can select your preferred units for barometric pressure: hPa, mbar mmHg. See 8.8 System Management Or set up on Ala Connect via Ala Connect > > Device > Device Setting > Units. For more information see 2.5 Update and Set up Star The changes will be overwritten to Star 2 in your next synchronization.
-
Page 24: Menu
8 Menu 8.1 History History keeps all your saved activity data and sorts them into best record, daily tracking, etc. When the memory is full, the system will begin to overwrite from the oldest records to accommodate the newly saved data. 8.1.1 Activity Records 1) On the Time Screen, press and hold the button to enter Menu. -
Page 25: Delete
8.1.5 Delete 1) On the Time Screen, press and hold the button to enter Menu. 2) Go to History> Delete, you can delete records according to your needs: Delete All History, Delete Best Records, Delete Activity Totals, Delete All Daily Tracking Logs. This action will delete the saved records on Star 2 for more memory, please be sure to synchronize all the data on your device before you delete anything on Star 2 (once synchronized, all the information will be store to your device). -
Page 26: Widget Settings
8.3 Widget Settings You can open or close the default widgets in Widget Settings. This is also where you calibrate your altimeter and digital compass. 8.3.1 Widget Management On the Time Screen, press and hold the button to enter Menu. 2) Go to Widget Settings >... -
Page 27: Heart Rate
8) Once you completed your settings, press the button to return to the Time Screen. ☞You can leave step 4 to 6 to your Ala Connect App to do the job for you. See step 5, 6, 8 on 2.5 Update and Set up Star 8.3.4 Heart Rate On the Time Screen, press and hold the button to enter Menu. -
Page 28: Altimeter
calibration. 8.3.7 Altimeter On the Time Screen, press and hold the button to enter Menu. 2) Go to Widget Settings > Altimeter. 3) Remove: You can remove Altimeter by selecting Remove; you can turn it back on in Widget Management. 4) Calibrate Elevation: ⚫... -
Page 29: Sensors
☞You can also set up your routine alarm clock via Ala Connect. See step 5, 6, 8 on 2.5 Update and Set up Star 8.5 Sensors Star 2 is compatible with other sensors. You can see wireless sensors by ALATECH below. Prior to your initial use, please pair the sensor with the watch. -
Page 30: Mobile Device
8.6 Mobile Device When you need to pair your watch with a new device, go to Ala Connect App > Device > Star 2 > select Remove the Device. And then, on the watch surface, follow the instructions below: On the Time Screen, press and hold the button to enter Menu. 2) Swipe down to User’s Setting;... - Page 31 Wikipedia, or 11.1 World Time Zone Table to set the right time zone manually. For instance, the time zone in Taiwan is UTC+8, select +UTC and key in 08:00. You can delete number by tapping [<]; once you are done, tap [OK]. 08:00 -UTC +UTC...
-
Page 32: Activities
9 Activities In Activities, you can start any of the following activity: Applications Swim Muscle Speed Cadence Altitude Activities Track Stroke Parts Cadence ○ ○ ○ ✕ ✕ ✕ ✕ Cycling ○ ○ ✕ ✕ ✕ ✕ ◎ Indoor ✕ ○... -
Page 33: Ending An Activity
2) Lap or Sets: ⚫ Run, Cycling, Swim: Press the button to manually count a lap. ⚫ Strength Training: Press the button to rest and start the next sets. 9.3 Ending an Activity If you would like to end an activity, press and hold the button to pause. You will be given the option of [Resume], [Save], or [Delete]. -
Page 34: Specification
10 Specification ⚫ Product Name: Star 2 GPS Sport Watch ⚫ Model: WB002 ⚫ Size: L43.4×W37.6×D13.3mm ⚫ Screen: Colored touch screen 176×176 pixel ⚫ Weight: 25.1g ⚫ Waterproof: 5 ATM ⚫ Operation Temperature: -10~60°C (14~140°F) ⚫ Charging temperature: 10~40°C (50~104°F) 、ANT+ ⚫... -
Page 35: Appendix
11 Appendix 11.1 World Time Zone Table Star 2 GPS Sports Watch... - Page 36 Image copyright is owned by TimeZonesBoy-CIA. Source: Wikipedia. Operation Guide...
-
Page 37: Wheel Size And Circumference
11.2 Wheel Size and Circumference Wheel size is usually marked on both sides of the wheel; you can use it to find the diameter in the chart below. Circumference Circumference ETRTO Wheel Size ETRTO Wheel Size (mm) (mm) 47-203 12×1.75 57-559 26×2.125 2070... - Page 38 ETRTO stands for European Tyre and Rim Technical Organisation. This organization operates a unified system ratified by the International Organization for Standardization (ISO 5775). Operation Guide...
- Page 39 a t t a c u s f i t n e s s . c o m Designed in Taiwan, made in China. 2020/02 V0.2 © 2020 ALATECH Technology Limited.
