Summary of Contents for Xtreme XBDM Series
- Page 1 XBDM-1520RHW 15A, 20A Models User & Installation Manual www.xpcc.com | © 2014 Xtreme Power Conversion Corporation. All rights reserved. (Rev 10/23/14)
-
Page 2: Table Of Contents
Bypass Distribution Description.......................6 System Configuration...................7 LED Description..........................8 Hardware Installation Guide.................9 Installation............................9 Wiring and Connecting................11 Initial Connection..........................11 Startup Sequence..........................11 User’s Operations..................12 Normal Operation..........................12 Bypass Operation...........................12 Specifications.....................14 Shipping List....................14 Obtaining Service..................15 Xtreme Power Conversion Limited Warranty..........16 Xtreme Power Conversion Corporation Page 2... - Page 3 If you experience a problem with the XBDM, please contact technical support. WARNING: Incorrect installation, operation, and/or modifications made to the XBDM will void the manufactures warranty. Xtreme Power Conversion is not liable for personnel or equipment damages as a result. Xtreme Power Conversion Corporation...
- Page 4 All servicing on this equipment must be carried out by qualified service personnel. The Xtreme Bypass Distribution Module (XBDM) is intended to allow replacement of the UPS connected without having to shut down the equipment connected to the load circuits on the XBDM. Caution should be observed as the XBDM is always supplied with power by either the UPS or UTILITY.
- Page 5 » Storage temperature: 0-65° C (+32 to +149° F) » Storage elevation: 0 to 15,000m (0 to +50,000 ft) • Provide protection for the equipment from moisture. • Space and ventilation requirements must be met. Xtreme Power Conversion Corporation Page 5...
-
Page 6: Introduction
Bypass Distribution Description The Xtreme Bypass Distribution Module (XBDM) is designed to operate with a single-phase UPS up to 30Amps in output capacity. The XBDM allows you to: • Replace or upgrade the UPS without losing power to the protected equipment •... -
Page 7: System Configuration

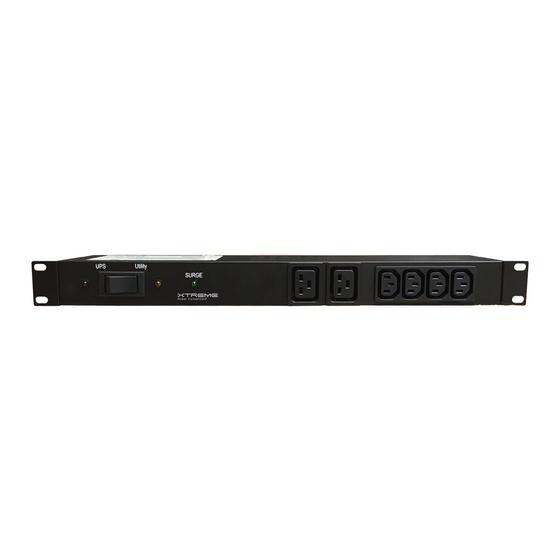

UPS is not in the circuit. Block Diagram without UPS System Configuration The diagrams shown give front, top and rear view of the XBDM. XBDM-15RHW/XBDM-20RHW Front View XBDM-1020LV Rear View XBDM-1015LV Top View Xtreme Power Conversion Corporation Page 7... -
Page 8: Led Description
Green LED = Surge Protection is available. XBDM Front Panel LED’s CAUTION: The Orange LED must be illuminated before transferring to BYPASS power. The Red LED must be illuminated before transferring to UPS power. XBDM Front Panel Bypass Switch Xtreme Power Conversion Corporation Page 8... -
Page 9: Hardware Installation Guide
1. Attach the two (2) XBDM horizontal mounting brackets (included) on each end of the XBDM using four (4) retaining screws (included). XBDM-15RHW/XBDM-20RHW Horizontal Mounting 2. Install the XBDM in a suitable horizontal location in the rack rail using four (4) user-provided mounting screws. Xtreme Power Conversion Corporation Page 9... - Page 10 XBDM using four (4) retaining screws (included) see Figure 2. 3. Install the XBDM in a suitable vertical location on the side of the rack rail with four (4) user provided mounting screws. Xtreme Power Conversion Corporation Page 10...
-
Page 11: Wiring And Connecting
7. Connect the UPS output receptacle to the XBDM-15RHW/XBDM-20RHW C20 plug labeled UPS OUTPUT using the appropriate 15 or 20A cord supplied with the XBDM-15RHW/XBDM-20RHW. 8. Assure that the distribution for the loads to be connected to the XBDM-15RHW/XBDM-20RHW is properly connected to the XBDM-15RHW/XBDM-20RHW. Xtreme Power Conversion Corporation Page 11... -
Page 12: User's Operations
1. If optional Extended Battery Packs or Modules are installed, reconnect the cable from the battery pack or module to the UPS, and turn on the circuit breaker on the battery back or module (if applicable) per the UPS manufacturers’ documentation. Xtreme Power Conversion Corporation Page 12... - Page 13 4. Start the UPS per the manufactures instructions. The red UPS available light should illuminate on the By- pass Distribution Module. 5. Toggle the Bypass Switch on the XBDM to UPS position. The XBDM is now powering your equipment from UPS power. Xtreme Power Conversion Corporation Page 13...
-
Page 14: Specifications
3 years (2 years outside of USA) INCLUDED IN BOX Standard 19" rack mounting hardware, user manual AVAILABLE OPTIONS Input cord sets and connectors Shipping List 1. (1) XBDM 2. Standard 19” rack mounting hardware 3. User’s Manual Xtreme Power Conversion Corporation Page 14... -
Page 15: Obtaining Service
2. Verify there are no circuit breakers tripped. 3. Call your dealer for assistance. If you cannot reach your dealer, or if they cannot resolve the problem, call Xtreme Power Conversion Corp Technical Support at 800.582.4524. Technical support inquiries can also be made at support@xpcc.com. -
Page 16: Xtreme Power Conversion Limited Warranty
Any technical advice furnished by XPC Corporation or a XPC Corpora- tion authorized representative before or after delivery with regard to the use or application of Xtreme Power Con- version equipment is furnished on the basis that it represents XPC Corporations best judgment under the situation and circumstances, but it is used at the recipient’s sole risk.
