Summary of Contents for EZE GO LCD DISPLAY

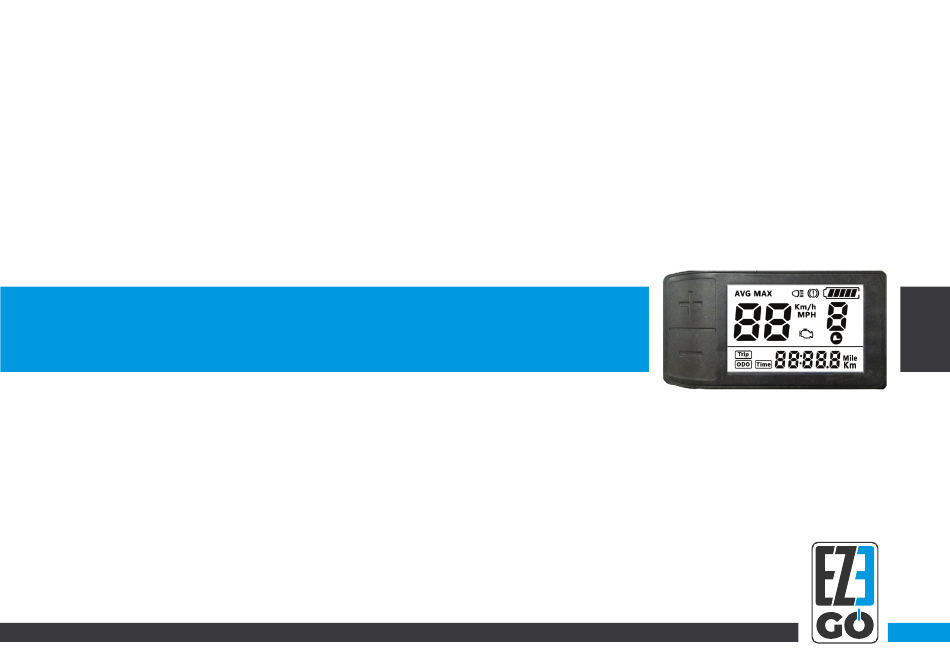

- Page 1 EZEGO LCD DISPLAY GUIDE...
- Page 2 EZEGO LCD DISPLAY GUIDE CONTENTS KEY FEATURES MAIN FUNCTIONS PARAMETER SETTINGS ERROR AND WARNING CODES...
- Page 3 EZEGO LCD DISPLAY GUIDE KEY FEATURES AVG Speed, MAX Speed, CURRENT Speed Odometer/Trip distance/Riding time Kilometer / Mile : Can be set according to your requirement Smart battery indicator 5-level assist...
- Page 4 EZEGO LCD DISPLAY GUIDE MAIN FUNCTIONS Power ON/OFF: Press and hold Power button for 1 ASSISTANCE UP / second to turn the display on/off . LIGHTS ON/OFF (HOLD) Assist Level Operation: Short press the + / - buttons to change the assist level.
- Page 5 EZEGO LCD DISPLAY GUIDE PARAMETER SETTINGS Press the M button (press no less than 2 seconds) to get into the setting menus. Short pressing the M button will then switch to next item. Pressing the M button (press no less than 2 seconds) will exit from menu.
- Page 6 EZEGO LCD DISPLAY GUIDE SETTINGS SCREEN 2 - SWITCH BETWEEN MPH AND KPH You will see the units your speed / distance is currently being Km/H displayed in flashing. Pressing the + or - buttons will switch between the two. Whichever is Mile flashing when you exit the...
- Page 7 EZEGO LCD DISPLAY GUIDE SETTINGS SCREEN 4 - AUTO SWITCH-OFF TIME You will see a number flashing in the bottom right hand side of your screen. Pressing + / - will change the auto power off time from 0 to 15. The number represents time (minutes) to shutdown, OFF means disable auto-off function, default value is 5 minutes.
- Page 8 EZEGO LCD DISPLAY GUIDE SETTINGS SCREEN 6 - VOLTAGE SETTING You will see the voltage setting in the bottom right hand side. Pressing + / - will switch between voltage setting. This is not recommended as it will cause the display to mis-read information from the system.
- Page 9 EZEGO LCD DISPLAY GUIDE ERROR AND WARNING CODES Our LCD display can show warning messages. The engine icon shows on the screen, with an error code at the bottom of the screen.
