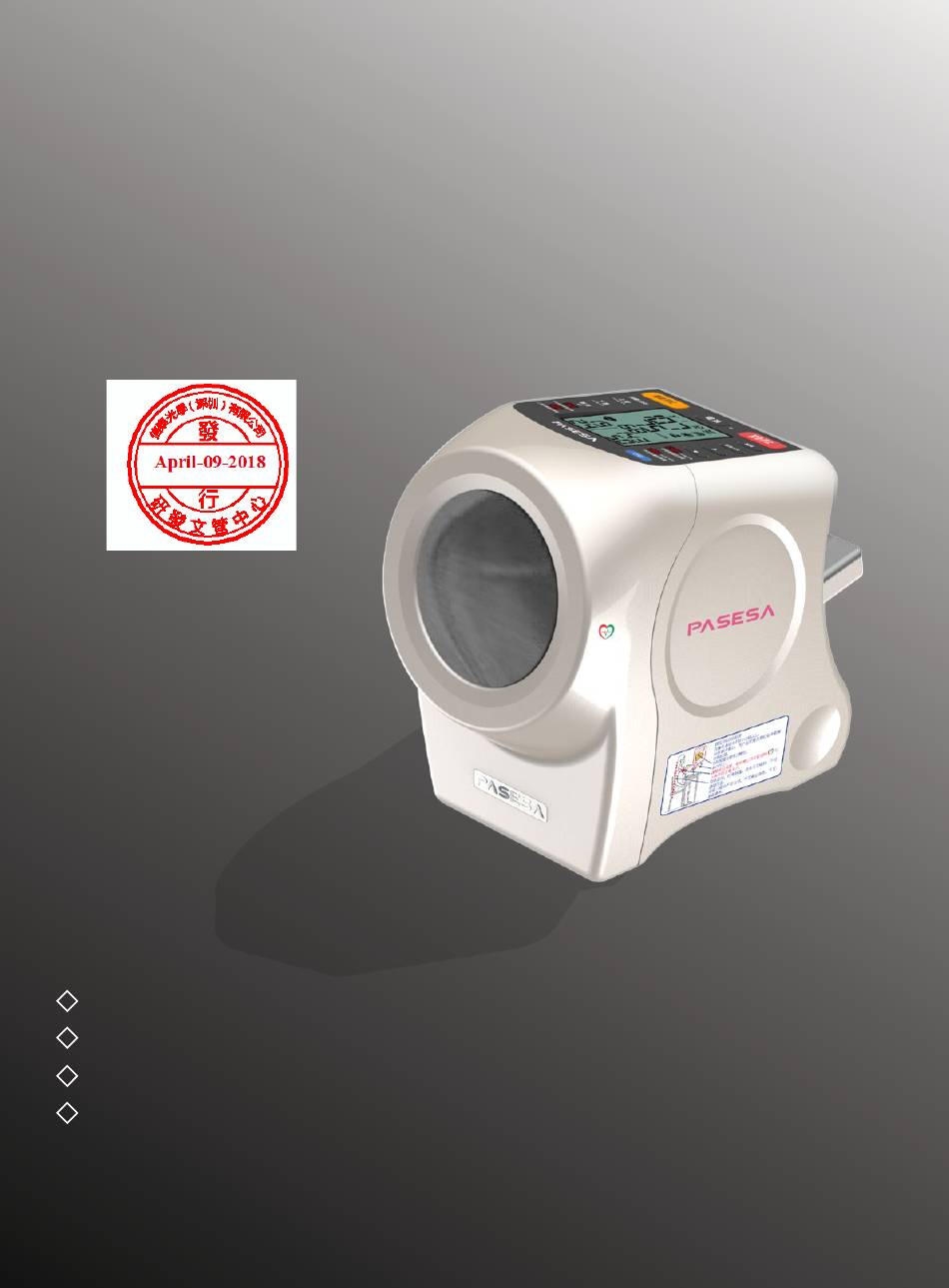

AVE-2000 Pro

Instruction for Use

To ensure the correct use of the device, please read the manual carefully.

Keep the manual near the device.

To measure accuracy, please use the device in an appropriate way.

The device can be used to measure AVI & API, CSBP & CAPP, Systolic & Diastolic blood pressure

and the P.R. of adults.

Registration Number

20182210170

Production Certificate

20162890

Table of Contents

Summary of Contents for Pasesa AVE-2000 Pro

Page 1 Production Certificate 20162890 Non-invasive Vascular Screening Device AVE-2000 Pro Instruction for Use To ensure the correct use of the device, please read the manual carefully. Keep the manual near the device. To measure accuracy, please use the device in an appropriate way.
Page 2: Read Before Use
Read before use <Preface> • Thank you for choosing the Non-invasive Vascular Screening Device AVE-2000 Pro. • The value of blood pressure measured by the device is equivalent to that picked up by the auscultatory method, and the error rate conforms to the requirements specified in YY 0667-2008. •...
Page 3 <Terminology> Blood Pressure The blood pressure is the pressure of the flowing blood against the vascular wall, and it also serves as the force to propel the blood flowing in the vessels. • High Blood Pressure (SYS, Systolic Blood Pressure) Systolic blood pressure refers to the maximum blood pressure appearing in an artery during systole when the heart contracts to drive blood into the arterial system.
Page 4 Youngsters Oldsters Pulse Arteries Stiﬀening by Aging Differential Pulse AVI = (Vr/Vf) x 20 • API (Arterial Pressure Volume Index) API is a new vascular index that developed jointly by AIST and Shisei Datum in Japan. Principle: The more elastic the arteries are, the more drastic the arterial volume changes when the cuff pressure decreases.
Page 5: Safety Precautions
Safety Precautions The symbols appearing in the manual are used to facilitate your correct and safe use of this device, and prevent the injury caused to you or others. <Symbol Description> Warning The sign shows that careless use may lead to injury or damage to the user. The sign shows that careless use may lead to inability for measuring or incorrect Caution measurements.
Page 6 Do not use it in case of receiving blood transfusion or intravenous drip. Do not use it when arteriovenous fistula is equipped for hemodialysis. Do not use it when there is possibility of thrombus formation due to blood flow obstruction or stagnation. Do not use it when there is possibility of peripheral circulation disorders due to blood flow obstruction or stagnation.
Page 7 AC adapter Precautions Do not disassemble, repair or modify the AC adapter. Please connect the AC adapter to AC 100-240V power supply. Do not use damaged power cable or plug. Avoid any damaging, processing, heating, bending with force, pulling, twisting Warning or pressing, etc.
Page 8: Preparation Before Use
Open the box to check the product composition before use. If anything is missing or appears to be damaged, please contact your local supplier. Main body Non-invasive Vascular Screening Device AVE-2000 Pro (Non-detachable) Accessories AC Adapter AA Alkaline battery × 4...
Page 9: Power Supply
3 Power Supply The device supports two methods of power supply, alkaline batteries and connection to power supply with AC adapter. 3-1 Battery Insertion Locate the back of the device with battery cover in front of you and take off the battery cover (Fig. ①, ②...
Page 10 Usage <Pre-usage> User preparation Content The device is designed and validated for measurements on arm diameter of 19 to 32 cm. Arm diameter higher or lower than the range may lead to incorrect measurements. Individuals should not eat, drink, smoke, exercise or take a bath/shower in 30 min before measuring. Measurement should be done with emptied bladder.
Page 11 How to Set Up Date and Time At power-off state, press the button and button simultaneously to enter the date and time setup screen. While the indicator of the Year and Time is flashing, press the buttons to adjust「Year」first, and then press the button to save the setting.
Page 12 Measurement 1. Open the Elbow holder as shown below. Fig. 4.1 2. Put the device on the center-left position near your body. 3. Relax, straighten your back, put your left hand through the arm cylinder, and place your elbow on the elbow holder with your palm facing up as shown below.
Page 13 ※ When measuring, please follow the instructions below: • Relax your body and sit upright as much as possible. If you are nervous, take a deep breath. • Keep your heart position in the same level as the heart symbol on the arm cylinder.
Page 14 4. Press the button, and the cuff will pressure up automatically, and the icon of cuff pressure will light up. When the device picks up the pulse, the icon will flicker. Fig. 4.6 During the measurement, certain degree of numbness in the arm can normally occur. If you feel ※...
Page 15 6. Check the measurements: this measurements will be shown on the LCD screen. Fig. 4.7 ※ If you have not input the age or the age is not in the valid range, the device is unable to provide CSBP or CAPP values. If the AVI or API picked up exceeded related range, the values will be not shown either.
Page 16 After specific measurement number is selected, the measurement number, date and time, age will loop display. 「Data Number」「Date and time」「Age」 Fig. 5.2 3. The device will return to standby screen if there is no operation for 30 seconds. 6 Measurements Printing 1.
Page 17 7 Measurements Analyzing Systolic and Diastolic Blood Pressure Blood pressure is subject to the influence of cardiac function, vascular tone, blood volume, nerves, body fluid, age, gender, season, climate and profession, etc. Exercise, emotional stress and constipation may lead to an increase in blood pressure, whereas, longtime rest and deep sleep may lower blood pressure.
Page 18 Pulse Rate Pulse rate is subject to the effect of many factors, such as age and gender. Exercise and emotional stress can elevate pulse rate, while rest and sleep can drop the pulse rate down. Normal range of pulse rate for healthy adults under normal resting conditions: 60 to 100 beats/ minutes.
Page 19 CSBP (Estimated Value) & CAPP (Estimated Value) CSBP (Estimated Value) rang is 19 to 300 mmHg (2.5 to 40 kPa), and its display resolution is 1mmHg (0.133kPa). CAPP (Estimated Value) range is 1 to 180 mmHg (0.1 to 24 kPa), and its display resolution is 1mmHg (0.133kPa).
Page 20: Power Off
8 Measuring Record Deleting At power-off status, press the button and button simultaneously to enter the setup screen, and then press the button and button simultaneously longer than 3 seconds to delete all measurements. Fig. 8.1 9 Power Off 1. Press the button to turn off the device, the power light turns off, and then close the elbow holder.
Page 21: Specifications
Appendix 1 Specifications Tab. 1.1 Specifications 1 Product Model AVE-2000 Pro Product Name Non-invasive Vascular Screening Device It is applicable for measuring blood pressure, Arterial Velocity Pulse Index (AVI), Arterial Pressure Volume Index (API), Central Application Scope Systolic Blood Pressure (CSBP,...
Page 22 Tab. 1.2 Specification Sheet 2 Tone Reminding Retention Time of the Set Clock 40 days Memory Function 400 cycle Printing Function Languages Support Simplified Chinese, Traditional Chinese Port DCIN Jack，Micro USB，RS232 USB Communication Yes（Numerical keypad） Communication Function RS232 Communication Yes（Thermal sensitive printer） Input: AC100-240 V 50-60 HZ AC Adapter Output: DC5.9 V/1.5 A...
Page 23: Error Codes
2 Error Codes When there is error in the device, the LCD screen will display a corresponding error code. In case of continuous occurrence of the same undesirable phenomenon, please restart the device for another confirmation. Tab. 2.1 Error Code 1 Error Cause Solution...
Page 24 Tab. 2.2 Error Code 2 Error Cause Solution Code It is displayed when there is an abnormality in the measurement relation at the device startup. It is displayed when there is a function error. Press the button to restart the device.
Page 25: Troubleshooting
3 Troubleshooting Tab. 3.1 Troubleshooting Abnormalities Cause Solution Replace with new batteries (See “Battery Battery exhausted due to no Insertion” in page 12 of the user manual for usage. details). Sudden power lost Poor contact between the AC Re-connect to the power supply (See “Connection in pressuring-up adapter, device and power of AC Adapter”...
Page 26: Safety Management
4 Solutions for Emergencies In case the arm is locked in the device because of sudden power loss, please press the red emergency release button at the bottom of the device. Emergency Release Button Fig. 4.1 ※ Do not press this button without emergencies. After taking out your arm, press the button to restart the device, and the internal components will reset, and the emergency release button will spring up to return to the reset state.
Page 27 Suggestions on maintenance: Regularly clean the device and related accessories. Generally once month, and the frequency is subject to adjustment according to the actual smudge status of the device. It is recommended that you clean it before each use. Notes on cleaning: •...
Page 28 Tab. 5.1 Regular Check Items Items Content No smudge, rust, deformity, damage, looseness, distortion and Appearance dampness. No damage or looseness. Emergency release button is in the pop-up reset state. You can Buttons press this button to release your arm in case your arm is locked in the device because of sudden power loss.
Page 29: Scope Of Warranty
Production Certificate: 20162890 Dealer: WINHORIZON LTD. Unit 1202, 12/F, No.29 Austin Road, Tsimshatsui, Kowloon, Hong Kong Service Time: Monday to Friday (except legal holidays) 09:00 a.m. to 12:00 p.m.; 1:00 p.m. to 6:00 p.m. Website: www.winhorizon.com.hk www.pasesa.com.hk OR397082699-1 Printed in China...
