Summary of Contents for SoundTree SoundKEY

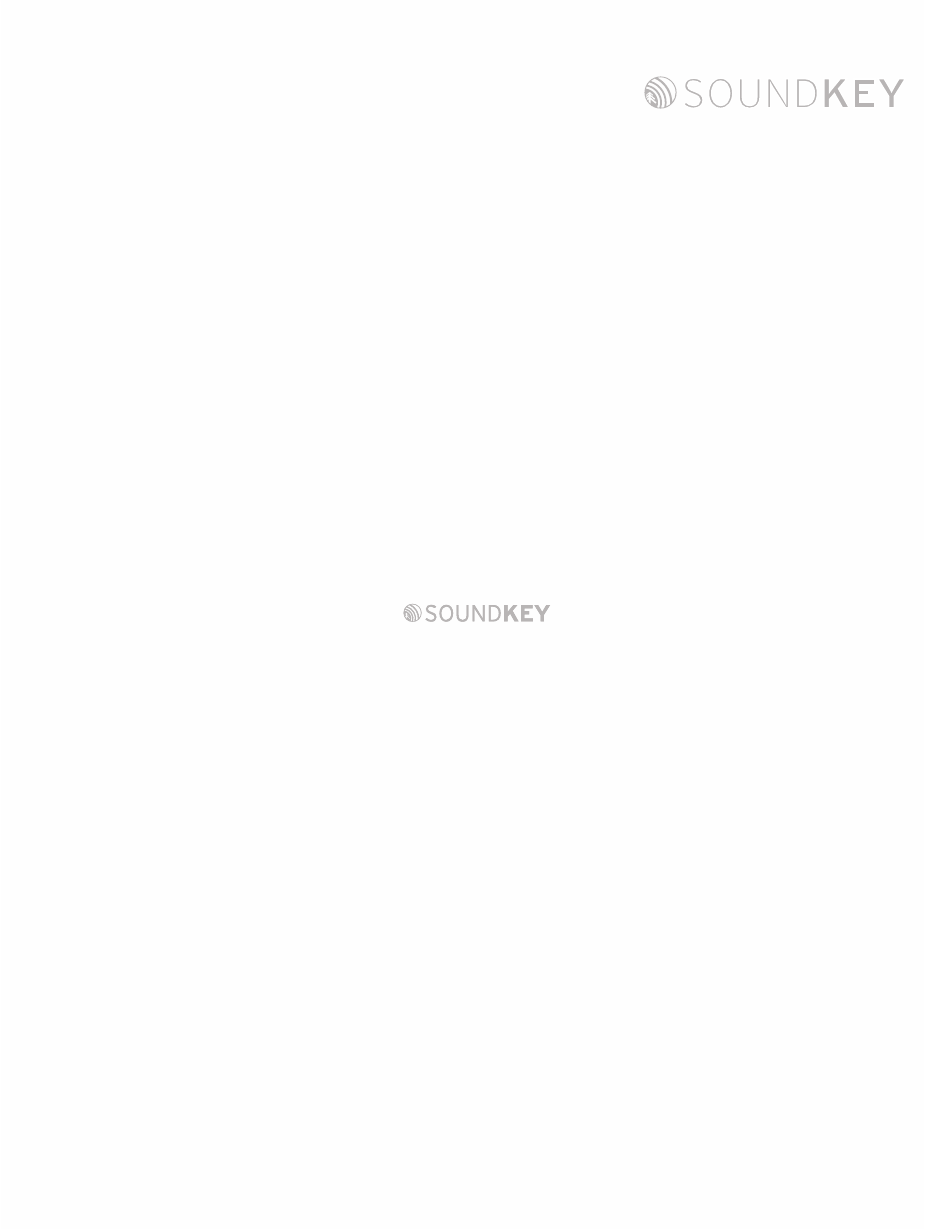

- Page 1 一 USER GUIDE www.SoundTree.com/SoundKEY...
-
Page 2: Components List

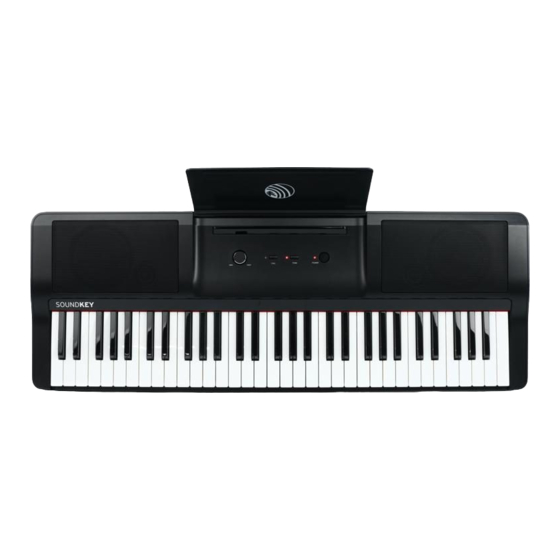

COMPONENTS LIST Thank you for purchasing the SoundKEY. Please check your box for the following items: Keyboard DC 12V power cord Data Cables The power cord is hidden on the side plastic foam. - Page 3 INTRODUCTION FRONT VIEW TOP VIEW BACK VIEW...
-
Page 4: Power Supply
SET UP This guide will help you set up and play your new instrument. Before turning on the power, please read the following instructions carefully. POWER SUPPLY Before turning on the instrument, adjust the volume to the lowest level both on the device and on any other connected systems. -
Page 5: Control Panel
CONTROL PANEL MAIN PANEL MASTER CONTROL VOLUME CONTROL Use the Master Control Volume Control to adjust the volume to an appropriate level. Rotate clockwise to increase, or counter-clockwise to decrease. This is a continuous knob, so if the volume sounds low, keep turning clockwise until you get the desired volume. -
Page 6: External Equipment
EXTERNAL EQUIPMENT CONNECTING A SMART DEVICE To bring endless fun to music and playing, connect a device! The SoundKEY is cross-platform compatible and can work with MIDI apps and software on your iOS, Android, Windows, AUX IN AUX OUT PEDAL GEC5 Chromebook or Mac device. -
Page 7: Connecting External Speakers
CONNECTING TO A GEC5 TEACHER UNIT AUX IN AUX OUT PEDAL GEC5 To create a group learning lab with your SoundKEY keyboards you only need Cat5/6 Ethernet cables and simple audio ca- bles. Please refer to page 8 for detailed instruction. - Page 8 Each Teacher Station can accommodate up to 32 Student Stations. When you are using 12 or lessSoundKEY keyboards, the Teacher Unit will power the keyboards and the power supplies are not necessary. Headsets should be plugged in the headphone input on the front of the SoundKEY. FRONT...
-
Page 9: Important Safety Information
IMPORTANT SAFETY INFORMATION Before you use this product, read the instructions carefully. Keep this manual to refer back to later. The functions of this product may be affected by strong electromagnetic interference. If this happens, simply follow the instructions to restart the system. If the functions still cannot work after rebooting, try to use the product in another location. -
Page 10: Specifications
SPECIFICATIONS NAME SPECIFICATIONS Appearance Portable smart piano Keyboard 61 non-weighted keys, standard piano keyboard texture Polyphony 128 Polyphony, Same note Sound Bank 20 built-in instrument sounds KORG GEC5 Seamlessly integrates with the KORG GEC5 Lab System using the RJ45 network input and Cat5/6 cables Pedals Note sustain function Device Connection... -
Page 11: Troubleshooting
There are 20 built-in sounds in the SoundKEY. The keyboard will default to Grand Piano, but when you touch the TONE button, the sounds will My keyboard doesn’t sound like a piano change. - Page 12 CONTACT US Email: info@soundtree.com Facebook: facebook.com/soundtree...
