Summary of Contents for JORGENSEN JORVET IV

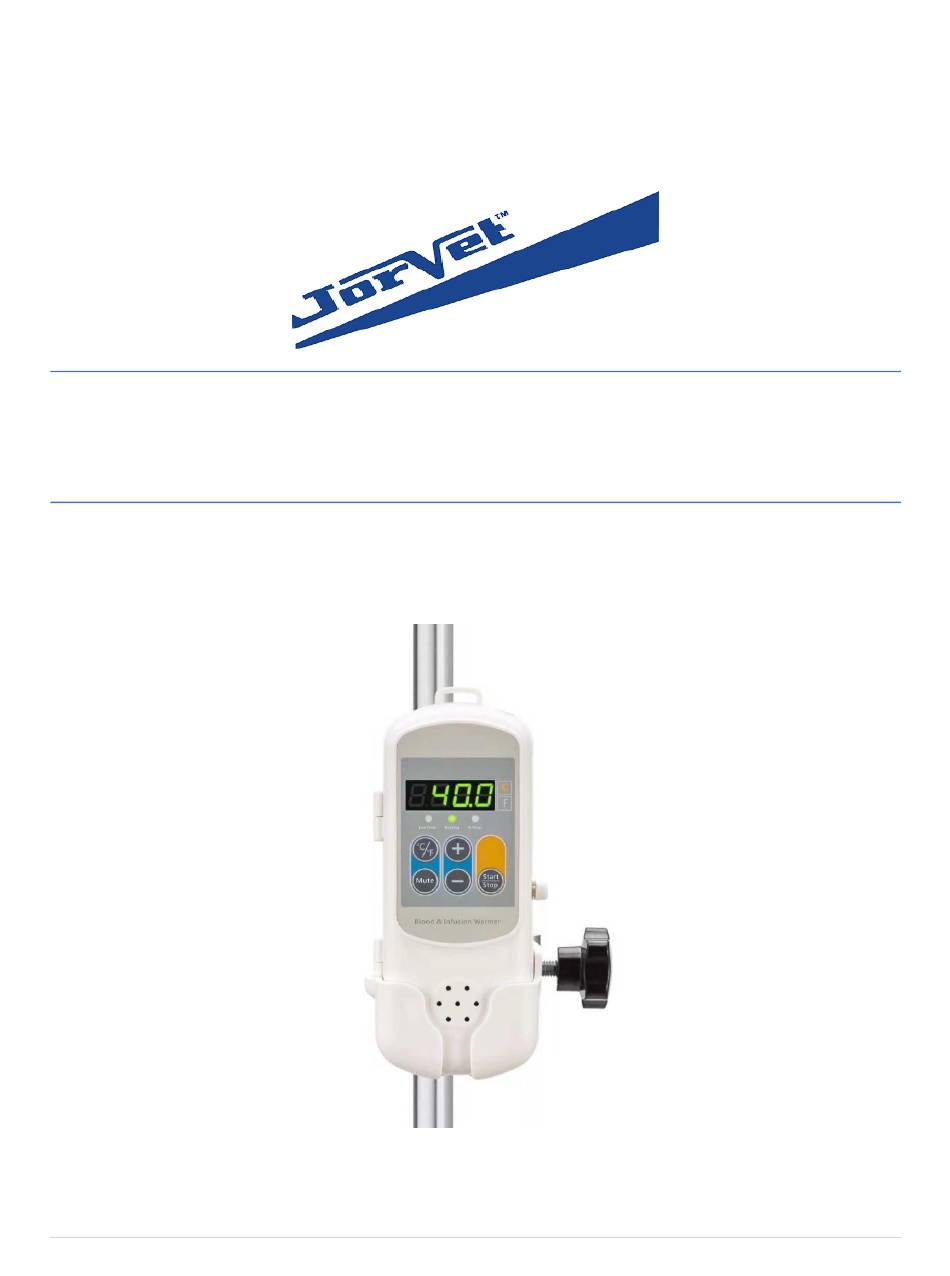

- Page 1 JORVET IV FLUID & BLOOD INFUSION WARMER Operation Manual JORGENSEN LABORATORIES PHONE 800-525-5614 FAX 970-663-5042 P a g e info@jorvet.com...
-
Page 2: Table Of Contents

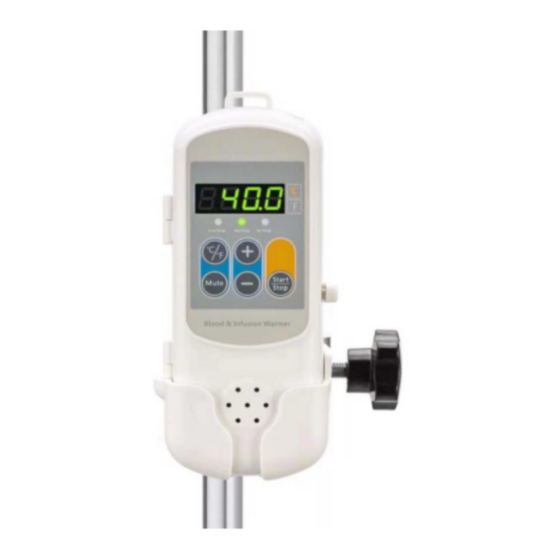

IV Fluid and Blood Transfusion Warmer ▪ Portable and light weight ▪ Warms IV fluid and Blood transfusion fluids ▪ Convenient strap to hang on an IV pole with an IV pole mount ▪ Temperature displayed appears either in Fahrenheit or Celsius ▪... -
Page 3: General Information
General Information The Jorvet IV Fluid and Blood Transfusion Warmer is a dry- heat device. This unit is designed to warm IV fluids safely through the heating plate. The Warmer does not control the fluid flow rate. Fluids can be warmed to temperatures between 95º-107.6º F (35ºC-42ºC) at flow rates 25ml/hr to 1000ml/hr. -
Page 4: Introduction
It is intended to provide continuous heating during the infusion and blood transfusion. Working Principle The Jorvet IV Fluid and Blood Transfusion Warmer is an indirect heating device (dry warmer). The IV fluids are heated as the fluids pass through the channel of the warmer. -
Page 5: Safety Compliance
Safety Compliance Protection against electric shocks, this includes the internal power supply Protection against leakage current Protection against splashing of fluid Working Mode: Continuous working mode Input Voltage: 100-240V Power: 85VA Physical Specification Device Dimension: 180mm x 70mm x 35mm Weight: ~ 0.2KG (without knob);... - Page 6 Temperature Controlling: Applicable IV set: Exclusive IV Set or standard single PVC IV Set (20 and 60 d/ml, with an outer diameter of 3.4 ~ 4.5mm) Temperature Range: 95º-107.6º F (35ºC-42ºC) Temperature Accuracy: ±1⁰C or ±1.8⁰F Warming up time: ≤ 2 minutes Overheat Protection: 48ºC Alarm: Overheat, low temperature, system error, door open and heating alarm P a g e...
-
Page 7: Outer Structure
Outer Structure Button and Function: 1. Lanyard- To hang the Jorvet IV Fluid and Blood Transfusion Warmer 2. Lanyard hole- To hang the lanyard 3. Display- To display the temperature and the alarm message 4. Running Light- Keep flashing during temperature rising and keep it on after reaching the set temperature 5. -
Page 8: Operation
User’s Operation Operation Steps: 1. Hang the warmer on the IV pole, adjust the strap to the appropriate length Note: If the infusion pump is being used, the IV Warmer should be placed slightly under the IV line’s exit from the infusion pump. 2. - Page 9 • Middle Heating path, heating length approximately 31cm • Short Heating Path, heating length approximately 25cm 6. Connect the power cord to the Warmer, the Warmer will automatically start once the power cord is connected to the warmer. Once the power cord is disconnected the Warmer will automatically turn off.
- Page 10 Press stop the warmer and restart it. If this issue continues contact Jorgensen Laboratories 800-525-5614. Low Temperature Alarm When the temperature decreases 2⁰C below the set temperature, the heating board will cause an alarm to sound intermittently and the overheat alarm light will keep flashing.
-
Page 11: Alarm
Alarm System Setting Press mute button to silence the alarm for 2 minutes, but it will not stop clear the alarm. Alarm Signal The red flashing light is the alarm and can be seen up to 13 feet of the Warmer. The audible alarm has an intensity of 45 decibels from 3 feet from the warmer. -
Page 12: Daily Check And Maintenance
▪ Unit and accessory mechanically functionable ▪ Alarms are functioning appropriately ▪ Accuracy with the Temperature in the standard range Please contact Jorgensen Laboratories if any are abnormal Clean and Sterilize • Use a low concentrated detergent or disinfectant • Use a soft cloth to wipe clean •... -
Page 13: Appendix
• H2O2 (3%) • Ethanol (70%) • Isopropyl Alcohol (70%) • Do not Sterilize with ETO or Formaldehyde Maintenance Regularly Routine Maintenance Interval Period Step As Hospital Cleaning Clean the surface completely before or after long Rules time storage Check at least one time 1.
