Summary of Contents for EVR Electronics GSM-THERMO CX36

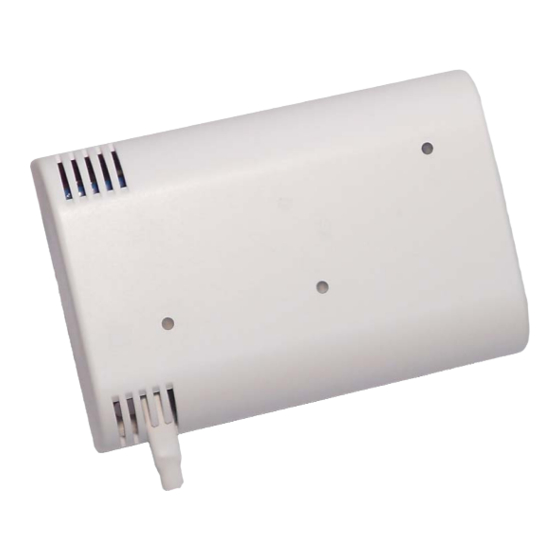

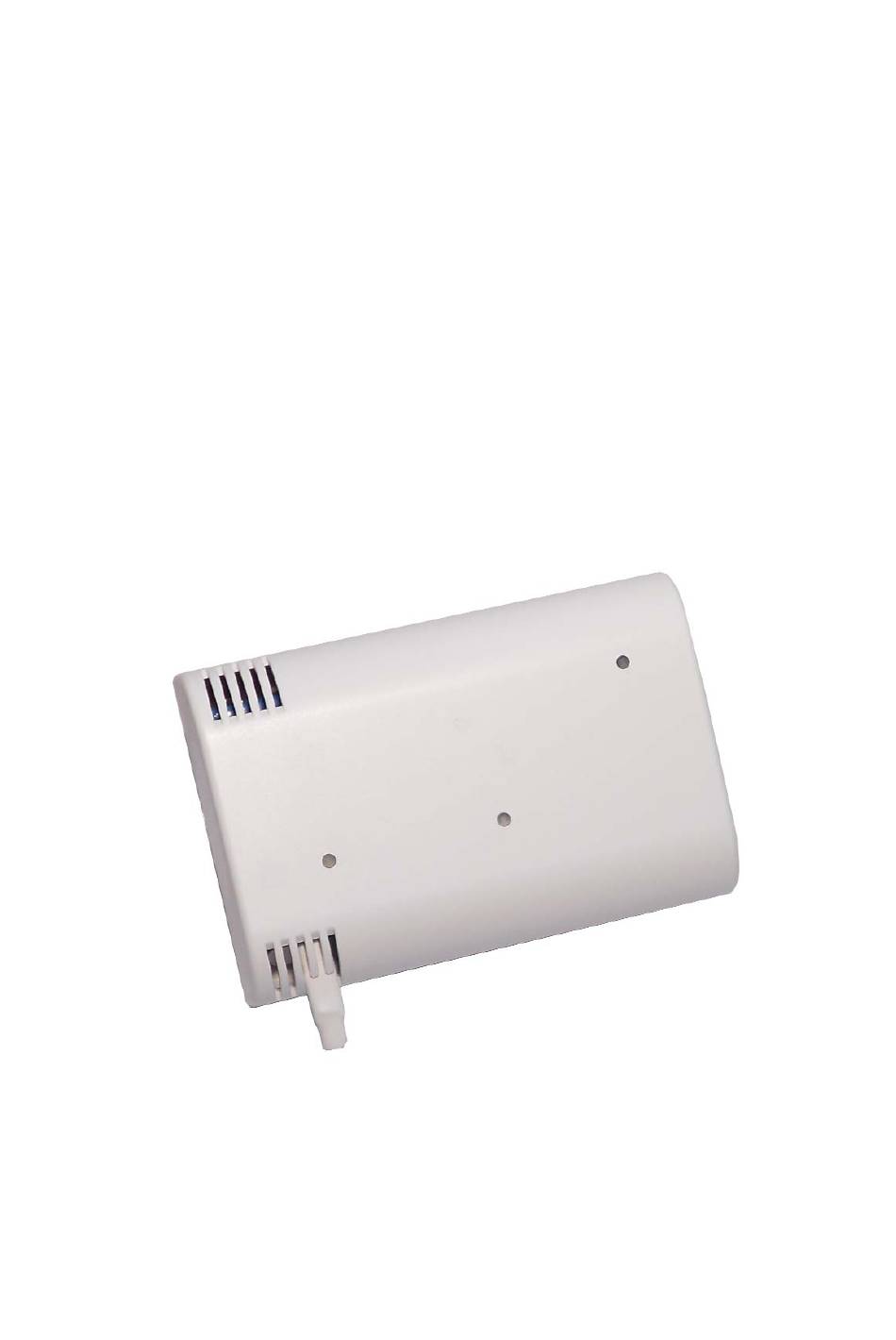

- Page 1 C L I M A C O N T R O L ROOM THERMOSTAT WITH GSM MODULE GSM-THERMO CX36 Manual of use and installation...
- Page 2 External antenna and Command N (Network) - Check Network pag. 13 Commands list pag. 14 Safety Instructions pag. 15 Technical features pag. 16 Warranty pag. 16 Technical support pag. 16 Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 3 When power network status Comfort (ON or OFF) is restored to the condition it was in before the power failure. To function requires a SIM of mobile telephony and a stabilized supply voltage to 12Vdc. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
-
Page 4: Installation
Use flat-head screws. Apply the tape to the metal heads of the screws to pre- vent accidental cause short circuits on the base address. Keep tabs opening down. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. -
Page 5: Temperature Probe
Protect the cables overlap the PCB. Press the cover on the base until it clicks. Place the device with the temperature probe facing downward. TEMPERATURE PROBE Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. -
Page 6: Power Supply
Check the manual of the pellet stove which is present a remote control input, or two legs which between them closed (short circuit), cause the ignition of the stove. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. -
Page 7: Sma Connector
Indicates the status of the relay: BOILER - Illuminated, relay activated, - Off, off relay. Note. The green LED inside is not significant, is used in the programming phase. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. - Page 8 Warning: therefore essential to install in any case a frost protection thermostat in the home or in the boiler. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 9 If the command is received correctly, the device replies with the following SMS: Setup Temperature OK Comfort T = 22 dgC Note: - To know the comfort temperature set to send the command T ?: 0000T? Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 10 - Always insert the country code before the number, +39 for Italy. - Carefully read the SMS response verifying that it is the memory location that the mobile phone number are correct. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 11 If the command is received correctly, the device replies with the following SMS: Setup Ring Alert ON If the function is disabled, the device will respond with the following SMS: Setup Ring Alert OFF Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 12 - The device's default password is 0000 (four zeros). - The password must contain only numbers and must have a fixed length of 4 numbers. - Note carefully the new device password. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
- Page 13 Text SMS Description 0000 Password of the device ID of the command If the command is received correctly, the CX36 replies with the following SMS: GSM signal: 20 Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
-
Page 14: Commands List
0000N Go back an SMS with number from 1 to 30 Echo SMS 0000EC1 Enables the Echo SMS Read firmware version 0000F Back an SMS with firmware version number Program Password 0000P12341234 Program 1234 as a new password Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. -
Page 15: Safety Instructions
/ or recycling of materi- als making up the equipment. Illegal dumping of the product by the owner involves the application of administrative sanctions provided by law. Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use. -
Page 16: Technical Features
Modello: GSM-CX36 File: GSM-CX36-R6-Instruction Data: 20 Ottobre 2015 Copyright©2015 EVR Electronics. www.gsmcontrol.biz All right reserved. Print only for private use.
Need help?
Do you have a question about the GSM-THERMO CX36 and is the answer not in the manual?
Questions and answers

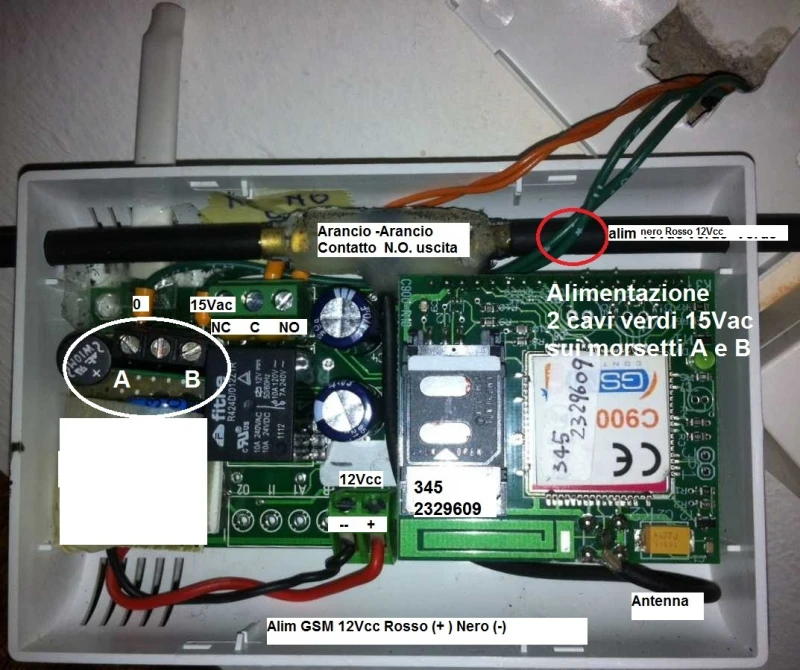

fate riparazione per un termostato GSM
