Pam Penyembur Galas
Knapsack Sprayer
(Operasi Bateri)
(Battery Operated)
Spesifikasi
Jenama (Model)
Kapasiti Tangki (Tank Capacity)
Berat Bersih (Nett Weight)
Ukuran (Measurement)
Jenis Motor Pam (Motor Pump Type)
Jenis Bateri (Battery Type)
Pengecas (AC/DC) [Charger (AC/DC)]
Masa Mengecas (Charging Time)
Bilangan boleh dicas semula (Rechargeable)
Jam berkerja (Working Hour)
Tekanan Memutus (Cut Off Pressure)
Tekanan bekerja (Working Pressure)
Kadar Aliran Nozel (Nozzle Flow Rate)
Maksimum Kadar Aliran yang dikeluarkan
(Maximum Flow Rate Discharge)
18, Jalan Lambak, P.O.Box 51, 86000 Kluang, Johor, Malaysia
Syarikat Jun Chong Sdn. Bhd. ©
(Specification)
SYARIKAT JUN CHONG SDN. BHD.
Tel: 07-7725188/9
Email: sales@junchong.com.my / sjcsb@junchong.com.my
Website: www.junchong.com.my
Diaphragm Pump [12V (9V – 15V)], 1.5 Amps
Sealed Lead-Acid Battery, 12 V, 8 AH
Input: 220 - 240V 50 – 60 Hz, 0.3A
Fax: 07-7724490
CAT IEM/EKATAK
IEM-EKATAK 16L
16L
5.70Kg
(400 x 235 x 543)mm
Output: 12 V DC 1200mA
4 – 5 Hours
> 100 Times
3.5 - 4 Hours
5.0 Bar
1.0 Bar – 2.0 Bar
0.98 L/Min - 1.45 L/Min
2.0 L/Min
CAT 100079-R2 2019
Advertisement

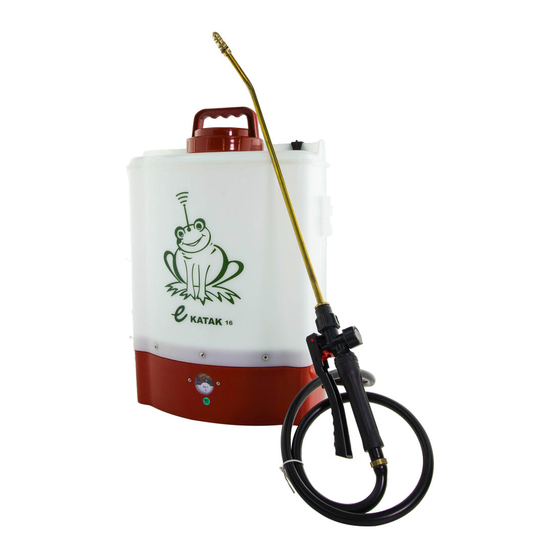

Summary of Contents for EKATAK IEM-EKATAK 16L
- Page 1 Pam Penyembur Galas Knapsack Sprayer (Operasi Bateri) (Battery Operated) Spesifikasi (Specification) Jenama (Model) IEM-EKATAK 16L Kapasiti Tangki (Tank Capacity) 5.70Kg Berat Bersih (Nett Weight) Ukuran (Measurement) (400 x 235 x 543)mm Diaphragm Pump [12V (9V – 15V)], 1.5 Amps Jenis Motor Pam (Motor Pump Type)
- Page 2 Panduan Penggunaan (Operating Instruction) 1.) Paip Penyembur (MB/46-20” 2G) dan Nozel (248-1/16”) diskrukan pada Pelepas Automatik [321/CPT(P1)]. (The Spraying Lance (MB/46-20” 2G) and nozzle 248-1/16” screwed on the Automatic Release [321/CPT(P1)].) 2.) Sebelum menyembur, pastikan semua bahagian telah disambung ketat dengan wasir untuk mengelakkan kebocoran. (Before spraying, check all the joints are tightened properly with washer to ensure no leaking.) 3.) Gunakan Mangkuk Penapis (IEM-DC11) semasa menuangkan racun ke dalam Tangki Penyembur supaya dapat menapiskan bahan kotoran dan mendapan.
- Page 3 IEM - EKATAK 16L SENARAI ALAT GANTI (SPARE PARTS LIST) 12 (a) 14 (a) Kod (Code) Perkara (Description) No. Kod (Code) Perkara (Description) 248 – 1/16” Nozel Kipas Boleh Laras IEM-DC1 Soket (Adjustable Fan Jet Nozzle) (Socket) MB/46-20” (2G) Paip Penyembur dengan Kepala Bengkok...
- Page 4 (Attn: Therefore, any replacement parts and services charges on the product will be paid by owner.) KAD WARANTI (WARRANTY CARD) _____________ Tarikh Pembuatan: (Date of Production) IEM-EKATAK 16L Model Penyembur: _________________________________________________________________ (Sprayer Model) No Siri Penyembur: (Diisi oleh Pengedar) (Sprayer Series No)
