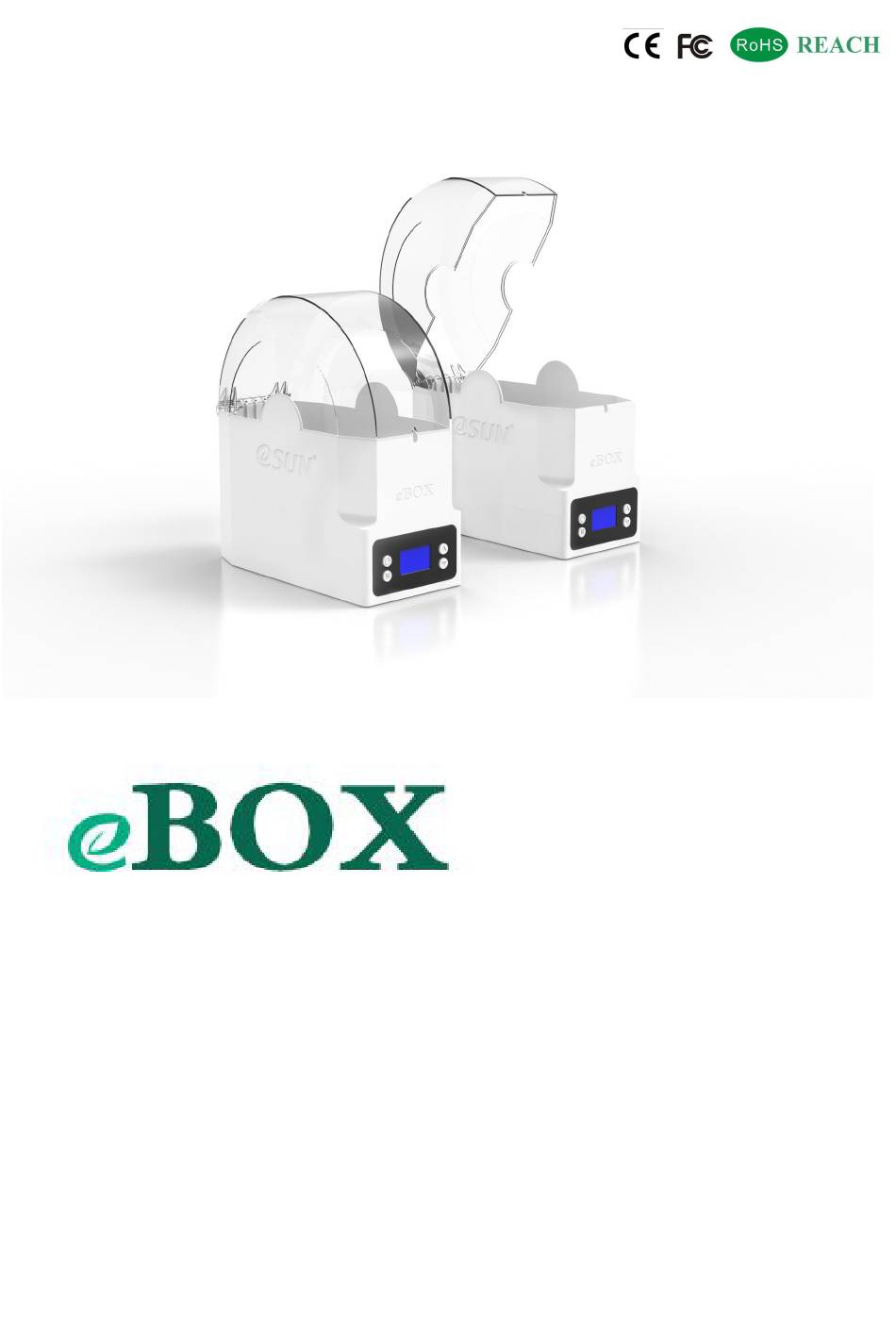

Page 1 User Guide Please read the user guide before use and keep it carefully.
Page 2 Attention Please read this manual thoroughly before operate the machine and save it for some unexpected situation. ■ Pull out the attaching plug, when the power line or socket is worn or damaged. ■ Cut the power off when not use it. ■...

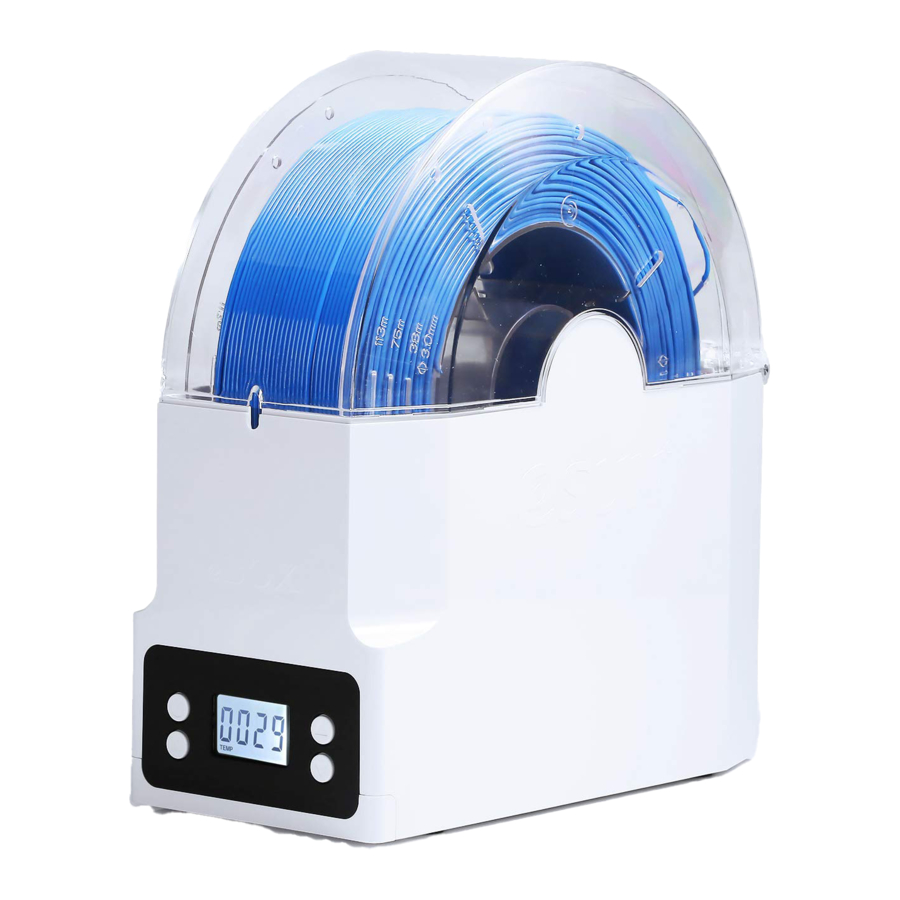

Page 3 Product Name of Each Part upper cover spool bottom case power interfac display screen bottom cover button foot pad Product Specification Table Package Size 249(L)×138(W)×272.5(H) mm Product Size 215(L)×104(W)×238.5(H) mm Max Capacity Φ200×73(H) mm Product Weight 750g Rated Power AC100-240V~50/60Hz Power Output DC12V~3A Power of Heater...
Page 4 Method of Use Plug the adapter into the AC100-240V ~ 50 / 60Hz power supply and plug the output terminal into the interface in the tail of eBOX. Press button to start, the weight will be automatically cleared. Then enter the WOC mode to set the plate weight.
Page 5 Put the spool in and pull the filament out through the outlet, close the cover. (The direction to pull filament can be bottom-up, or from top to bottom, depending on the position of printer) outlet Parameter Setting ■ The product has four buttons, the open button 、the function button 、the up button 、the down button...
Page 6 Gram Mode ■ After switching on, the default mode is Gram Mode. You can press the button to manually reset and calibrate. ■ The screen displays the weight in Gram, the displayed number is the number subtracting total weight including the box from the empty tray weight, and the empty tray weight can be set in WOC mode.
Page 7 Temperature Setting Mode ■ Press the mode button three times and switch to the Temperature Setting Mode. The screen will display TEMP, there are 4 levels in total, which can be adjusted by the up button or the down button .
Page 8 Note: Above parameters in the table are testing under 20 ℃ of temperature and 62% of humidity in the room. The te mperature and humidity in the box will slightly change due to different environments. Spool Weight Reference Table Dupont Spool eSUN transparent eSUN black spool eSUN transparent eSUN black spool transparent spool description spool of 1kg of 1kg spool of 0.5kg...
