Instructions of shipment, unpacking and installation

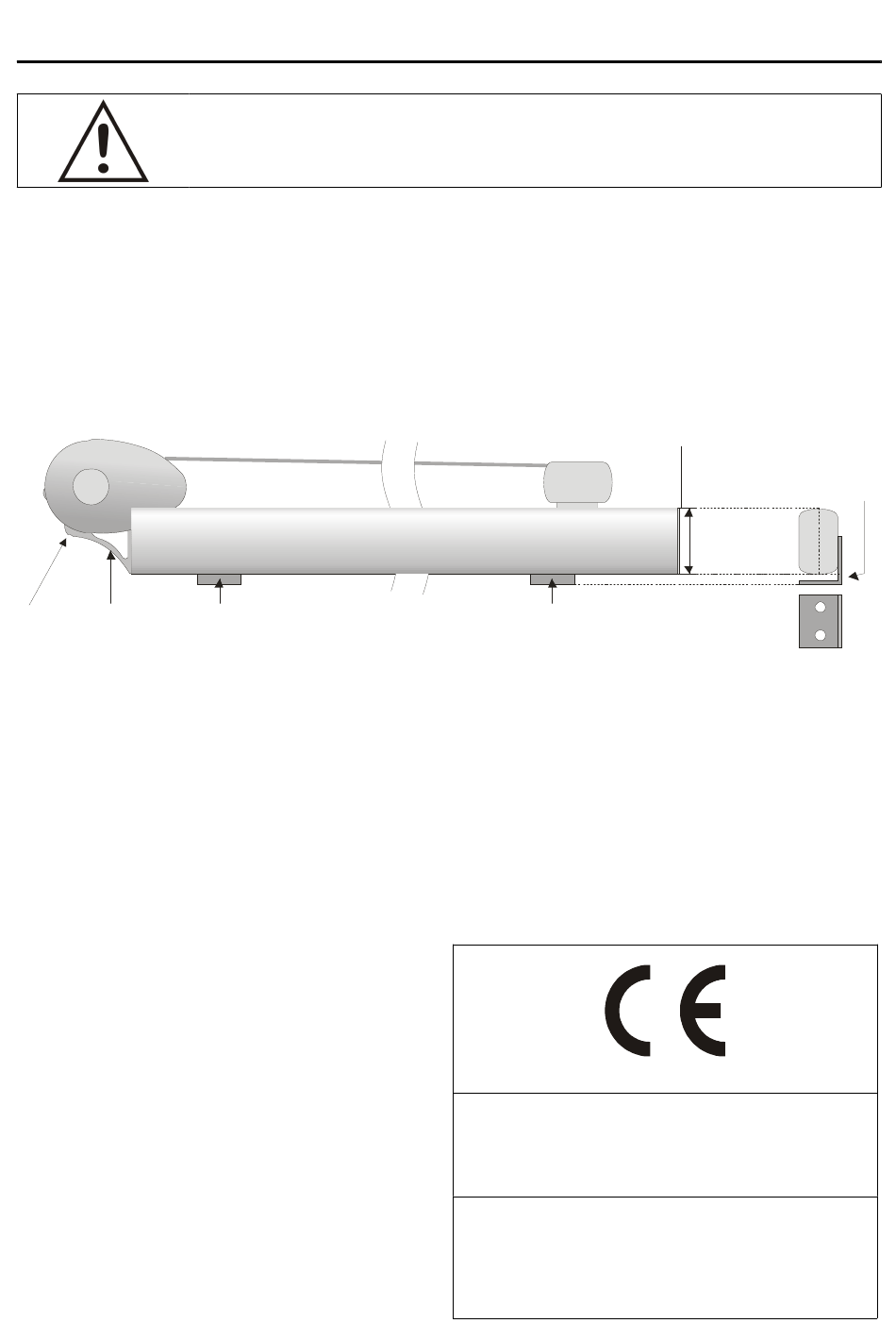

General scheme of awning
C
F
E
A ‒ Brackets
B ‒ guide rail
C ‒ Cassette
D ‒ Front profil
E ‒ Cassette bracket
F ‒ Mounting screw
Steering:
[ ] Manual;
[ ] E-drive;
[ ] Motor drive with NHK;
Data of electric drive:
Power: ..................... W;
Voltage 230V;
Frequency 50Hz;
YOC: .................................................
Serial Number: ..................................
CAUTION!
These instructions must be read and understood before installation, adjustment,
service or maintenance.
Operations and Maintenance,
Veranda awning EVO
A
D
B
A
DRAGON KORGUL, PROCHOWSKI SP. J.
Trakt Św. Wojciecha 223/225, 80-017 Gdańsk
.......................................
EN 13561
External blinds
Class of wind resistance:
.......................................
strona: 1 / 12
A
B
97
Advertisement
Summary of Contents for Dragon Wholesaling Veranda EVO
- Page 1 strona: 1 / 12 CAUTION! These instructions must be read and understood before installation, adjustment, service or maintenance. Operations and Maintenance, Instructions of shipment, unpacking and installation Veranda awning EVO General scheme of awning A ‒ Brackets B ‒ guide rail C ‒...
- Page 2 strona: 2 / 12 Content 1. Introduction 2. Instructions for use and maintenance 3. Transportation, unpacking and installation instructions Introduction These installation instructions are an integral part of the terrace awning and was written for the professionals of the installation company and for the end users. An additional instruction for the electric products will be attached to this manual and should be treated as an integral part of this instruction.
- Page 3 strona: 3 / 12 Use and Maintenance instruction 2.1. General CAUTION! For the reasons of safety, installation, maintenance and use of awnings, please follow the following guidelines. The installation of the awning should be done by an authorized dealer. Modifying the construction of the awning are not allowed. It is not be allowed to under awning be during maintenance or installation work.
- Page 4 strona: 4 / 12 Switch should be located away from moving parts. Switch should be installed at a height according to the regulation for the disabled persons (generally less than 1,30 m). If manual drive is possible, it should be installed at a height of less than 1,80 m. Keep the electrical switch away from children.
- Page 5 strona: 5 / 12 2.5. Disassembly and disposal Disassembly of the awning must be performed by qualified personnel. Awning contains no hazardous components. Turn to recycling company to reduce the negative influence of waste over the natural environment. 2.6. Important notes and warnings CAUTION! Roll up the awning in bad weather such as frost, snow, rain and hail.
- Page 6 strona: 6 / 12 Note Fabric in the awnings is narrower (from 10 to 15 cm) than the total width of the awnings frame depending on the type of drive, from 10 cm to 15 cm. Do not dispose of electrical components in the trash. It must be deliver to the point of disposal of electrical equipment.
- Page 7 Instructions of shipment, unpacking and installation 3.1. Delivery 1x awning Type: Veranda EVO, Brackets in an amount: 4 or 5 (for version with an additional support Fig. 2 pos. Z), 1x Operating and Maintenance Instructions, Warranty, 1x E-Connections and settings (only for motor drive),...
-
Page 8: Check Delivery
strona: 8 / 12 Note Installation of the awning, adaptation and check the proper functioning can only be done by trained installers team. This team is responsible for the right installation (with the anchor bolts) readjustment and test run of the awning. 3.6. - Page 9 strona: 9 / 12 Awning is supplied with brackets for mounting to the profile of the winter garden - according to the order. (Fig. 1, item A). The awning meets the wind class rating when the manufacturer's recommended number and type of the mounting brackets were mounted with the correct mounting anchors.
- Page 10 strona: 10 / 12 3.8.6. Connect an awning motor to the power supply (if motor ordered) CAUTION! The electrical connection must be made by a licensed professionals. Electrical cables connect as described in the attached schematic. The awning may be connected only if the information on the rating plate agree with the power source.
- Page 11 strona: 11 / 12 3.9.1. Replacement a drive To carry out the exchange failed drive, the Installers team should remove the awning. Appropriate knowledge and skills are required. Inserted new drive must be compliant with the drive of manufacturer and the awnings. 3.9.2.
- Page 12 strona: 12 / 12 3.12. Assembly drawing of the awning Fig. 1 (side view) Fig 2 (front view) Fig 3 (side view) Bracket (”Foot”) Holes Ø 8 mm Grants for Innovative The service is supported under Measure 6.1 (Passport to Export) Priority 6 of the Polish economy on the international market, Innovative Economy Operational Programme 2007-2013 under the provisions of the Regulation of the Minister of Regional Development of 7 April 2008 on the granting by the Polish Agency for Enterprise Development of financial support under the Operational Programme Innovative Economy 2007-2013 (Journal of Laws No.
