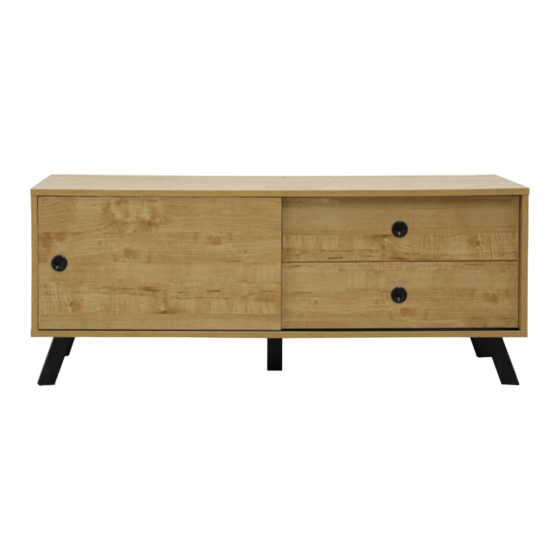

Kirra Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
screw
bolt
dowel
locking
x12
x6
x14
nut x6
J
K
L
screw
wedge
screw
x20
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
G
screw
slide
slide
x32
rail x2
rail x2
M
N
O
wheel
wheel
long
x2
x2
screw
x6
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
slide
slide
rail x2
rail x2
Q
P
small
small
bolt
locking
x10
nut x10
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
Advertisement
Related Manuals for moska Kirra Entertainment Unit
Summary of Contents for moska Kirra Entertainment Unit
- Page 1 Kirra Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. safety screw wall wall washer slide screw bolt screw slide dowel locking slide slide strap x1 anchor screw rail x2 rail x2...
- Page 2 Kirra Entertainment Unit Assembly Instructions Attach 2x slide rails (F) to panel [3] and secure with 4x small screws (E). Insert 6x dowels (A) to panel [1]. Insert 6x bolts (C) into panel [1]. Attach 2x slide rails (G) to panel [4] and secure with 4x small screws (E).
- Page 3 Kirra Entertainment Unit Assembly Instructions Attach panels [2] , [3] and [4] to panel [1] and secure with 6x locking Slide panel [6] between the grooves of panels [3] and [4]. Slide panel [16] nuts (D). Tighten with a screwdriver.
- Page 4 Kirra Entertainment Unit Assembly Instructions Insert 6x dowels (A) into the ends of panels [2] , [3] and [4]. Attach panel Attach the legs [8] and [9] to panel [5] as shown using 20x screw (J) . [5] to the unit and secure with 6x screws (M). Tighten with a screwdriver.
- Page 5 Kirra Entertainment Unit Assembly Instructions Insert 5x small bolts (P) and 1x dowel (A).to panel [10].Tighten with a Attach panels [11] ,[12]and [15] to panel [10] and secure screwdriver. with 5x small locking nuts (Q). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Kirra Entertainment Unit Assembly Instructions Slide panel [13] down along the grooves of panels [11] and [12]. Attach panel [11], [12] and [14] as shown using 6x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Kirra Entertainment Unit Assembly Instructions Attach slide rails (I) and slide rails (H) to the underside of the side panels Insert the assembled drawers into the corresponding compartments as shown. Secure with 4x screws (E) and tighten with a screwdriver.
- Page 8 Kirra Entertainment Unit Assembly Instructions back Note: If the door is not sliding smoothly or sitting straight, there is a screw in the middle of the wheel on the bottom of each door that can be tightened/loosened until the door is sitting properly.
- Page 9 Kirra Entertainment Unit Assembly Instructions Attach 4x wedges (K) into the corners of the back of the unit and secure Once assembled lift furniture into place, do not drag. Use a drill to create with 4x screws (L). Tighten with a screwdriver.Attach 1x safety strap (V) a small hole lining up with the top of the safety strap (V).
