Alpha Technologies PWE-3 Field Installation Manual

Screen and weatherstripping for pole and ground mount enclosures
Hide thumbs
Table of Contents

Advertisement

Quick Links

Screen and
Weatherstripping
for Pole and Ground Mount Enclosures

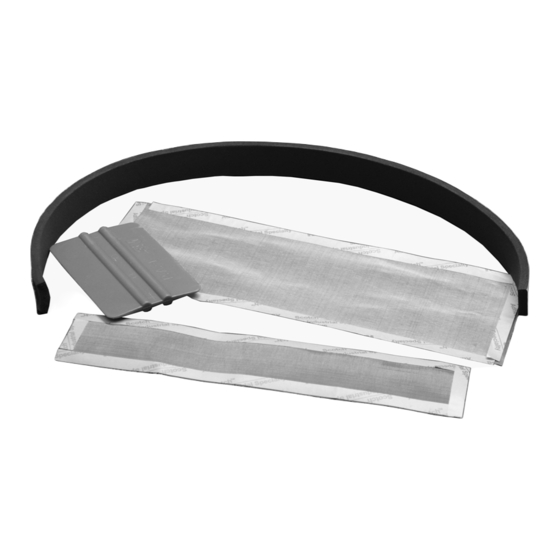

Stainless Steel Screen
and Weatherstripping
Field Installation Guide
Effective: October, 2003
®
Alpha Technologies

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PWE-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alpha Technologies PWE-3

  • Page 1 Screen and Weatherstripping for Pole and Ground Mount Enclosures Stainless Steel Screen and Weatherstripping Field Installation Guide Effective: October, 2003 ® Alpha Technologies...
  • Page 2 Power Alpha Technologies. Protecting The Power in Communications.
  • Page 3 Review the drawings and illustrations contained in this manual before proceeding. If there are questions regarding the safe operation of this powering system, please contact Alpha Technologies or your nearest Alpha representative. Contacting Alpha Technologies: For general product information and customer service...

  • Page 4: Table Of Contents

    Required Tools and Materials ............5 SECTION TWO Installation Screen Installation Procedure ............6 Weatherstripping Installation Procedure .......... 7 Screen and Weatherstrip Installation Diagrams ........ 8 2.3.1 PWE-3, PWE-6 ..................8 2.3.2 PWE-4 ..................... 9 2.3.3 PWE-8 ....................10 2.3.4 PWE Therm Imp.

  • Page 5: Safety Information

    1. Introduction Safety Information ✔ SAVE THESE INSTRUCTIONS: This manual contains important installation instructions, and should be saved for future reference. This safety symbol will be found throughout this manual, carefully read all information boxes and abide by the instructions: ATTENTION This symbol indicates important instructions.

  • Page 6: Screen Installation Procedure

    2. Installation Screen Installation Procedure 1. If required, follow manufacturer’s instructions for powering down the power supply, and disconnecting the battery pack to gain access to louvers. 2. This manual contains detailed drawings of louver screen placement for various enclosures. Refer to the drawing that matches your enclosure to install the replacement screen.

  • Page 7: Weatherstripping Installation Procedure

    2. Installation 8. Ensure complete adhesion of screen to enclosure by following “spreading” sequence illustrated below: top, left, bottom, right. Start Finish Weatherstripping Installation Procedure Currently weatherstripping tape comes preassembled in kits for enclosures and doors. However, you may have weatherstripping in a roll.

  • Page 8: Screen And Weatherstrip Installation Diagrams

    2. Installation Screen and Weatherstrip Installation Diagrams 2.3.1 PWE-3, PWE-6 PWE-3 P/N 745-363-23 PWE-6 P/N 745-363-24 Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 9: Pwe-4

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.2 PWE-4 P/N 745-381-21 Install Screen Here Install Weatherstripping 745-363-C0-001 Rev. B...

  • Page 10: Pwe-8

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.3 PWE-8 P/N 745-389-21 Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 11: Pwe Therm Imp

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.4 PWE Therm Imp. P/N 745-439-21 Install Weatherstripping Here Install Screen Here Install Weatherstripping Here Install Screen Here 745-363-C0-001 Rev. B...

  • Page 12: Pwe-4 Legacy

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.5 PWE-4 Legacy P/N 745-431-21 Install Weatherstripping Install Weatherstripping Install Screen Here 745-363-C0-001 Rev. B...

  • Page 13: Pwv Legacy

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.6 PWV Legacy P/N 745-438-21 Install Screen Here Install Weatherstripping Here Install Screen Here 745-363-C0-001 Rev. B...

  • Page 14: Pwe-8R

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.7 PWE-8R P/N 745-432-21 P/N 745-432-22 (Kit with Tape) Install Weatherstripping Here (-22, only) Install Screen Here 745-363-C0-001 Rev. B...

  • Page 15: Pwe-24

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.8 PWE-24 P/N 745-380-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 16: Pme

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.9 P/N 745-459-21 Install Weatherstripping Here Install Weatherstripping Here Install Screen Here 745-363-C0-001 Rev. B...

  • Page 17: Pse

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.10 PSE P/N 745-461-21 Install Screen Here Install Screen Here 745-363-C0-001 Rev. B...

  • Page 18: Be-Pwe

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.11 BE-PWE P/N 745-430-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 19: Upe-3

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.12 UPE-3 P/NP/N 745-379-21 Install Screen Here Install Weatherstripping 745-363-C0-001 Rev. B...

  • Page 20: Upe-6

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.13 UPE-6 P/N 745-388-21 Install Weatherstripping Install Screen Here 745-363-C0-001 Rev. B...

  • Page 21: Upe-4

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.14 UPE-4 P/N 745-384-21 Install Screen Here Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 22: Upe-8

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.15 UPE-8 P/N 745-383-21 Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 23: Upe-8 Legacy

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.16 UPE-8 Legacy P/N 745-434-21 Install Weatherstripping Here Install Screen Here 745-363-C0-001 Rev. B...

  • Page 24: Upe-3L

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.17 UPE-3L P/N 745-456-21 Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 25: Upe-6L

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.18 UPE-6L P/N 745-457-21 Install Screen Here Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 26: Be-Upe

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.19 BE-UPE P/N 745-429-21 Install Screen Here Install Weatherstripping Here 745-363-C0-001 Rev. B...

  • Page 27: Pn-3/Pn-4

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.20 PN-3/PN-4 P/N 745-390-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 28: Pn-4L

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.21 PN-4L P/N 745-393-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 29: Pn-4Lb / Pn-Fn

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.22 PN-4LB / PN-FN PN-4LB P/N 745-392-21 PN-FN P/N 745-392-23 Install Screen Here 745-363-C0-001 Rev. B...
  • Page 30 2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.23 PN-6 P/N 745-454-21 Install Screen Here Factory-installed Screen 745-363-C0-001 Rev. B...

  • Page 31: Pn-Fnl

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.24 PN-FNL P/N 745-476-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 32: Ce-Sc

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.25 CE-SC P/N 745-465-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 33: Bsm-3

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.26 BSM-3 P/N 745-466-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 34: Bsm-4

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.27 BSM-4 P/N 745-468-21 Install Screen Here 745-363-C0-001 Rev. B...

  • Page 35: Bve

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.28 BVE P/N 745-477-21 Install Screen 2X TOP VIEW SIDE VIEW Install Screen Here Install Screen 2X FRONT VIEW 745-363-C0-001 Rev. B...

  • Page 36: Cte-1

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.29 CTE-1 P/N 745-474-21 Install Screen Here (x4) Install Screen Here (x4) 745-363-C0-001 Rev. B...

  • Page 37: Gm6L

    2. Installation Screen and Weatherstrip Installation Diagrams, Cont. 2.3.30 GM6L P/N 745-475-21 Install Screen Here 745-363-C0-001 Rev. B 745-363-C0-001 Rev. A...
  • Page 38 745-363-C0-001 Rev. B...
