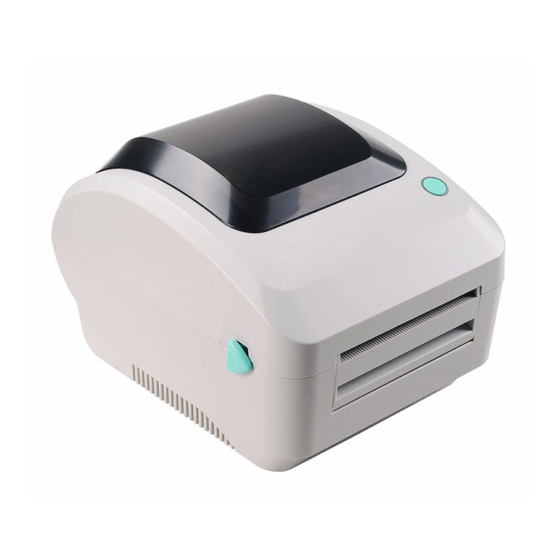

ARKSCAN 2054A LAN LABEL PRINTER
© 2020 ARKSCAN, LLC
ARKSCAN 2054A-LAN
QUICK GUIDE
(V1.1)
This document is to help you with the quickest way to get your Arkscan 2054A Ethernet/LAN printer up and running
on Windows.
THIS DOCUMENT IS FOR SETUP THE PRINTER ON WINDOWS ONLY. FOR MAC, PLEASE VISIT OUR WEBSITE.
1
----------------------------------------------------------------------------------------------------------------------------------------------------------------
Email:
support@arkscan.com
Please visit
www.arkscan.com
for live chat support and product updates
Advertisement
Table of Contents
Summary of Contents for ARKSCAN 2054A-LAN
- Page 1 QUICK GUIDE (V1.1) This document is to help you with the quickest way to get your Arkscan 2054A Ethernet/LAN printer up and running on Windows. THIS DOCUMENT IS FOR SETUP THE PRINTER ON WINDOWS ONLY. FOR MAC, PLEASE VISIT OUR WEBSITE.
- Page 2 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC Table of Contents Prerequisite ................................3 Hardware setup ................................3 What is my printer’s IP address? ..........................3 Printer tool to look up IP address........................3 Printer tool to look up IP address........................3 Print out the IP address ............................
- Page 3 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC 1. Prerequisite We would suggest to setup the printer via USB port first, after the printer is confirmed working perfectly via the USB port, and it can print a label perfectly, and then switches the PORT from USB to an IP port, which we believe it's the quickest way to setup the LAN printer.
- Page 4 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC From the main windows of the Figure #2 tool (Figure 2), choose the ‘ETHERNET’ from Interface (step #1), then click ‘Setup’ (step #2), then click on the ‘Discover’ button on the pop...
- Page 5 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC 3.3 Print out the IP address You may also to obtain the IP address of the printer by connecting the computer and the printer via an USB cable, and then choose the ‘USB’ as the Interface, as shown on Figure 2, and click ‘Setup’ (step #2) to confirm the USB to computer connection is good, and then click ‘Configuration Page’...
- Page 6 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC Figure #5 Change IP via USB connection 3.4.3 You can assign a static IP address to the printer, or reset the printer to DHCP service via an USB cable. Connect the printer to your comupter via an USB cable, click ‘Ethernet Setup’...
- Page 7 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC 4 Create IP port for Printer Go to the printer driver that you installed with the USB interface under Printer and Scanner, the driver usually named as 4BARCODE 4B-2054A, and go to its Printer Property, and then click on Port tab, and follow the steps below: Figure #7 And key in the IP address of the printer in ‘Printer Name or IP Address’...
- Page 8 ARKSCAN 2054A LAN LABEL PRINTER © 2020 ARKSCAN, LLC Click the checkbox of the IP port you just created, and then click ‘Apply’ to assign the IP port to the printer. Figure #9 To test if the printer is working over our network connection, unplug the printer’s USB cable if it’s connected, and print a label to the printer ‘4BARCODE 4B-2054A’.
