Basic Operating Instructions
Co mp ac t St ereo Syst em
SC-C70MK2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OTTAVA f and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technics OTTAVA f

Summary of Contents for Technics OTTAVA f

  • Page 1: Ac Mains Lead

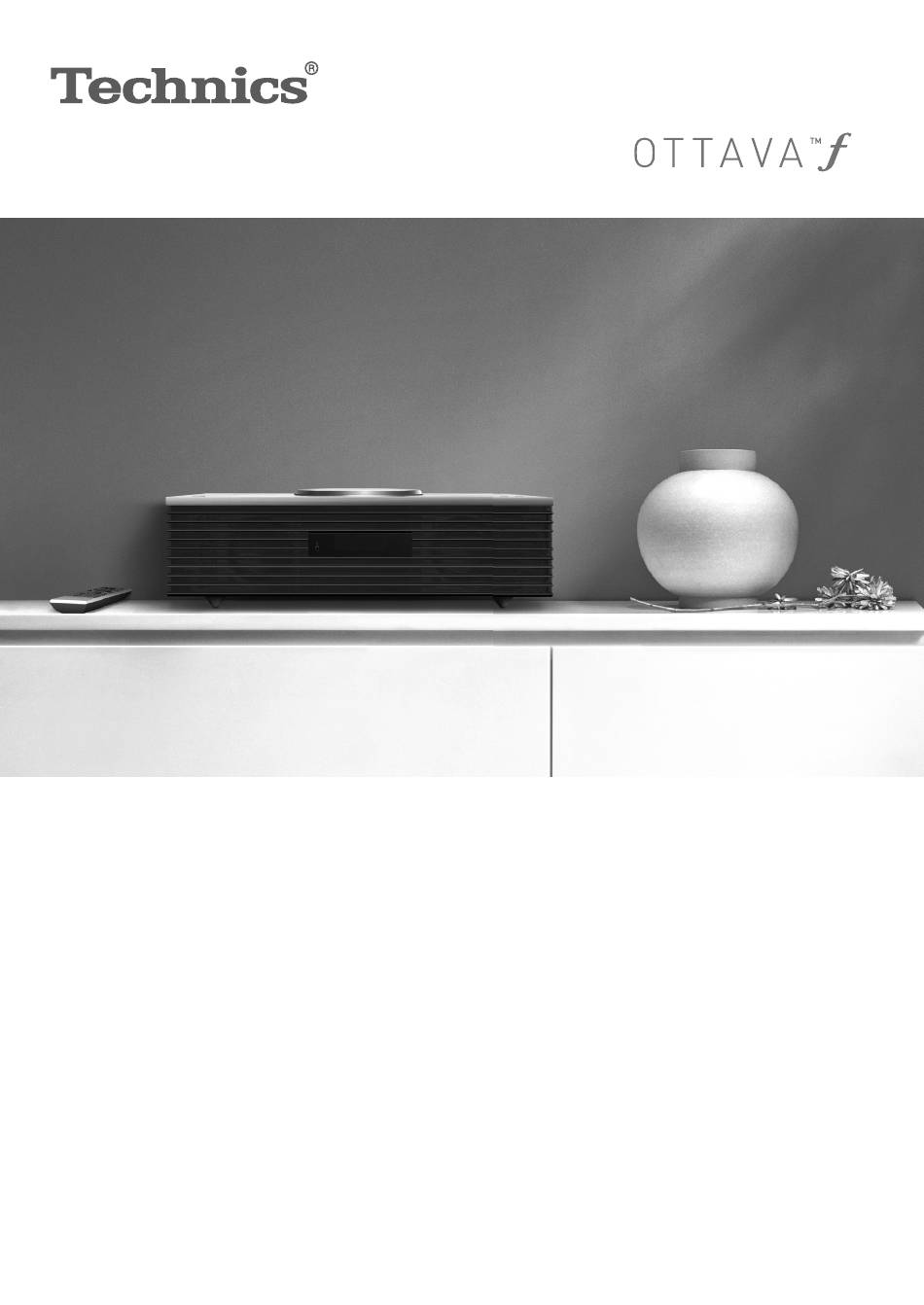

    Basic Operating Instructions Co mp ac t St ereo Syst em SC-C70MK2...

  • Page 2: K2Ct3Dr00009 N1Eyyy000015 N2Qaya000221 Control

    Music is borderless and timeless, touching people’s hearts across cultures and generations. Each day the discovery of a truly emotive experience from an unencountered sound awaits. Let us take you on your journey to rediscover music.
  • Page 3 Delivering the Ultimate Emotive Musical Experience to All At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music. We want people to experience music as it was originally intended and enable them to feel the emotional impact that enthuses and delights them.

  • Page 4: Table Of Contents

    • For customers within the UK: 0333 222 8777 • For customers within Ireland: 01 447 5229 • Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays). • For further support on your product, please visit our website: www.technics.com/uk/ Table of contents Safety precautions...

  • Page 5: Safety Precautions

    Safety precautions Warning Caution Unit Unit • To reduce the risk of fire, electric shock or • Do not place sources of naked flames, such as product damage, lighted candles, on this unit. • This unit may receive radio interference caused - Do not expose this unit to rain, moisture, dripping or splashing.
  • Page 6 Safety precautions (Continued) Battery Caution for AC Mains Lead • Danger of explosion if battery is incorrectly (For the AC mains plug of three pins) replaced. Replace only with the type For your safety, please read the following text recommended by the manufacturer. carefully.

  • Page 7: Installation

    Installation Adjusting with the Space Tune function Installation • You can adjust the sound quality automatically according to the installation location (near the Turn off all the equipment before connection wall or the corner of the room). Press and hold and read the appropriate operating instructions.

  • Page 8: Control Reference Guide

    Control reference guide This unit (front) 01 Standby/on switch ( 06 Built-in microphone (for measurement) • Press to switch the unit from on to standby 07 Display mode or vice versa. In standby mode, the • Input source, clock, playback status, etc. unit is still consuming a small amount of are displayed.
  • Page 9 • This unit does not guarantee connection ( 11, 17) with all USB devices. A more detailed operating instruction is available in “Operating Instructions” (PDF format). www.technics.com/support/ • Depending on a thickness of USB device, you may not connect USB device while LAN cable is connected.
  • Page 10 Control reference guide (Continued) Remote control 01 [ ]: Standby/on switch • Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 02 [CD]/[RADIO]/[ -PAIRING]: Select the device to be operated (...

  • Page 11: Connections

    Connections Antenna connection AC mains lead connection Connect only after all other connections are completed. AC IN terminal Be sure to tighten To a household mains Adhesive tape the nut fully. socket (not supplied) • Use only the supplied AC mains lead. DAB indoor antenna (supplied) •...

  • Page 12: Network Settings

    • If “Firmware update is available” is displayed after the network connection is set up, the firmware for this unit is available. - For the update information, refer to the following website. www.technics.com/support/firmware/ ■ Preparation 1 Install the “Google Home” app on If you install the “Google Home”...
  • Page 13 5 Start the “Google Home” app and ( 14) follow the on-screen instructions to Note set up a connection. ( 14) • This unit will be displayed as “Technics-SC- **** C70MK2- ” if the device name is not set. Note **** (“...
  • Page 14 2 Press [OK] to exit the setting. 5 Press [ ], [ ] to select “Wi-Fi Setup” Note and then press [OK]. • This unit will be displayed as “Technics-SC- • “Setting” is displayed. **** C70MK2- ” if the device name is not set.
  • Page 15 For detailed information of Chromecast- enabled apps, visit: g.co/cast/apps You can also stream music files from the device on your network to this unit by using the free app “Technics Audio Center”. Download and install the app from the website below. www.technics.com/support/ ■ Preparation •...

  • Page 16: Playing Back Cds

    Playing back CDs Note • Be careful not to get your finger caught in the top cover when opening/closing it. • Be careful not to touch the lens with your Lens fingers. • The lens lights when the following operations are performed with no CD inserted.

  • Page 17: Listening To Dab/Dab+ / Fm Radio

    Listening to DAB/DAB+ / FM Radio Storing DAB/DAB+ stations Storing FM stations To listen to DAB/DAB+ broadcasts, the available You can preset up to 30 channels. stations need to be stored in this unit. • A station previously stored is overwritten •...

  • Page 18: Using Bluetooth

    **** ” (“ ” stands for a character that is unique to each set.) Disconnecting a Bluetooth ® may be displayed before “Technics-SC- **** C70MK2- ” is displayed. device • If the device name is set on the “Google Home” app, the set name is displayed.

  • Page 19: Licenses

    Licenses “DSD” is a registered trademark. FLAC Decoder Copyright (C) 2000, 2001, 2002, 2003, 2004, The Wi-Fi CERTIFIED™ Logo is a certification 2005, 2006, 2007, 2008, 2009 Josh Coalson mark of Wi-Fi Alliance ® Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:...

  • Page 20: Specifications

    Specifications ■ ■ GENERAL DISC SECTION AC 220 V to 240 V, Playable Disc Power supply CD, CD-R, CD-RW 50/60 Hz (8 cm or 12 cm) Power consumption 45 W Pickup Power consumption Wavelength 790 nm (CD) in standby mode Laser power CLASS 1 (Network Standby...
  • Page 21 ■ TERMINALS SECTION Stereo, 3.5 mm Headphones Jack REAR USB Type A Connector Support Memory 2 TB (max) Capacity Maximum number of folders (albums) Maximum number of files 8000 (songs) File system FAT16, FAT32, NTFS USB port power DC OUT 5 V 0.5 A (max) Ethernet interface (100BASE-TX/10BASE-T) Stereo, 3.5 mm Jack...
  • Page 22 Specifications (Continued) ■ File format This unit supports the following file formats. • This unit does not support the playback of copy-protected music files. • Playback of all files in formats supported by this unit is not guaranteed. • Playback of a file in a format not supported by this unit may cause choppy audio or noise. In such cases, check to see if this unit supports the file format.
  • Page 23 Pan European Guarantee included in your device box to send you the full text of our privacy policy.
  • Page 24 Headquarter Address: Panasonic Corporation Kadoma, Osaka, Japan Importer for Europe: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Panasonic Corporation Web Site: http://www.panasonic.com TQBM0623 © Panasonic Corporation 2020 M0820YY0...
