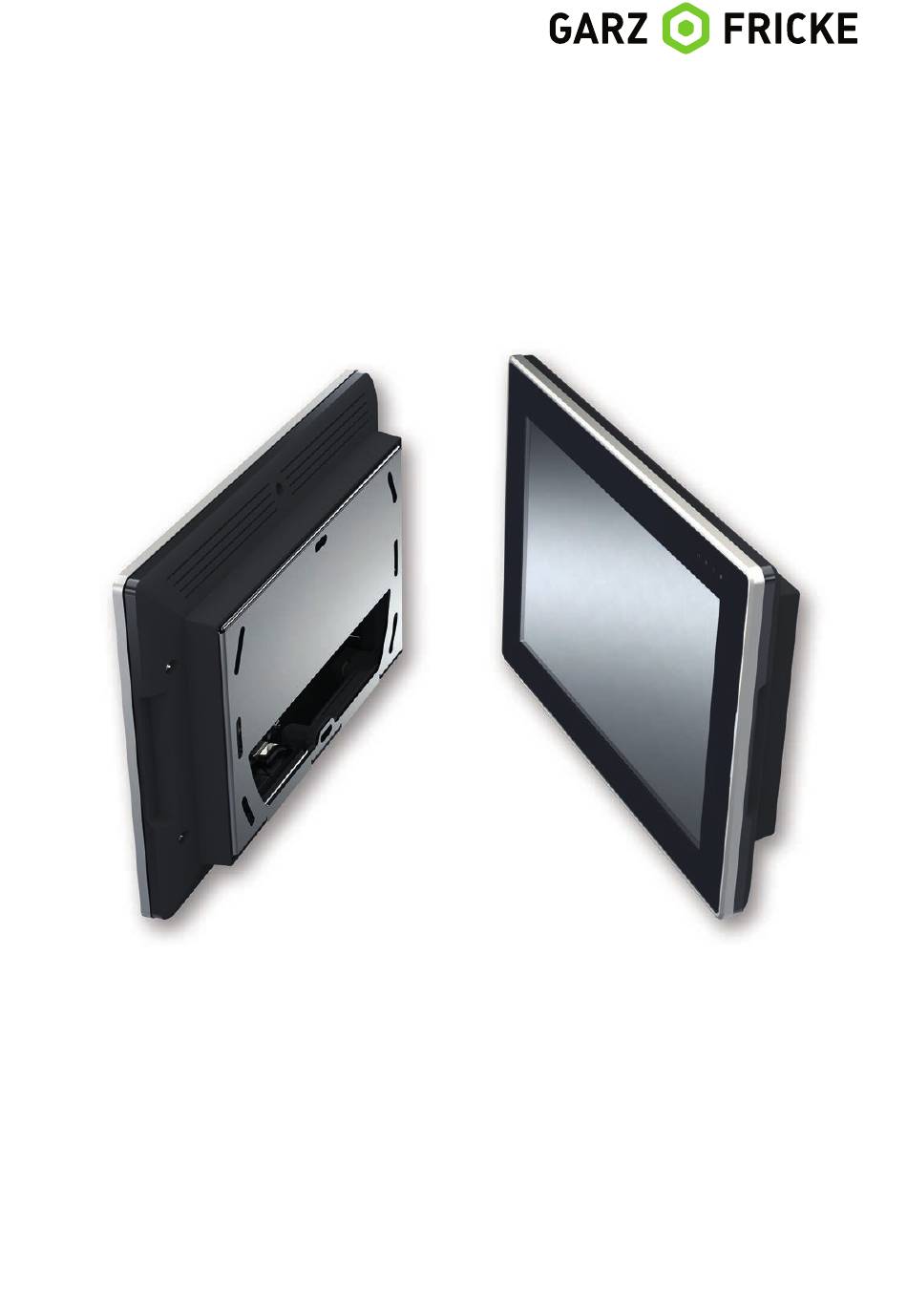

- Page 1 WE MAKE IT YOURS SANVITO 10.1 WM V2.1 ARM Cortex A9 Product Manual...
- Page 2 PRODUCT MANUAL SANVITO Document Revision History The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. Revision Date Author Description V 1.0...
-
Page 3: Table Of Contents
PRODUCT MANUAL SANVITO Table of Contents Introduction ..................4 Safety Hints..................5 Product Introduction ................. 6 Serial number ..................6 Related Documents and Online Support ..........7 Technical Data ..................8 Block Diagram SBC .................9 Connectors ....................10 External Interfaces ACC MT ............... 11 DC Power Supply ..................11 RS485 .......................11 Digital In/Out ....................12... -
Page 4: Introduction
PRODUCT MANUAL SANVITO Introduction Thank you very much for purchasing a Garz & Fricke product. Our products are dedicated to professional use and therefore we suppose extended technical knowledge and practice in working with such products. The information in this manual is subject to technical changes, particularly as a result of continuous product upgrades. -
Page 5: Safety Hints
PRODUCT MANUAL SANVITO Safety Hints Please read this section carefully and observe the instructions for your own safety and correct use of the device. Observe the warnings and instructions on the device and in the manual. Garz & Fricke embedded systems have been built and tested by us and left the company in a perfectly safe condition.In order to maintain this condition and ensure safe operation, the user must observe the instructions and warnings contained in this manual. -
Page 6: Product Introduction
PRODUCT MANUAL SANVITO Product Introduction The "SANVITO 10.1 WM V2.1" is a control and operating unit for various applications. Serial number For service and later identification of the device a label containing the serial number and its QR-code is located on the Device. -
Page 7: Related Documents And Online Support
PRODUCT MANUAL SANVITO Related Documents and Online Support This document contains operating system specific information. The following additional documentations are available: OPERATING SYSTEMS Contains information about Linux BSP with development environment Linux Embedded System Yocto (Codename: Linux Yocto Jethro Jethro, Version 3.0) includes first information about the bootloader Flash-N-Go http://mx31.de/9 UPDATE / BOOT / SYSTEM... -
Page 8: Technical Data
PRODUCT MANUAL SANVITO Technical Data Type CPU Type i.MX6 Dual ARM Cortex - A9 Core Class 1 GHz Core Clock NEON for SIMD media acceleration and VFP operations; Multi-format HD 1080p video de-coder and HD Features 720p video encoder hardware engine. 1 MB L2 cache Vivante GC 2000+ (4 shaders) Vivante GC 355... -
Page 9: Block Diagram Sbc
PRODUCT MANUAL SANVITO Block Diagram SBC Tbd. -
Page 10: Connectors
PRODUCT MANUAL SANVITO Connectors As this manual describes a core version, the internal and external interfaces will be mentioned in the following chapter. Pos. Description DC Power Supply Ethernet Factory Reset Digital In/Out RS 485 Expansion Boar Connector PCIe Micro SD card holder USB OTG USB Host Reset... -
Page 11: External Interfaces Acc Mt
PRODUCT MANUAL SANVITO External Interfaces ACC MT DC Power Supply Name Description Level DCIN Plus Minus RS485 Name Description RS485#1_A RS485 Port 1 RS485#1_B RS485 Port 1 RS485#1_GND Ground Port 1... -
Page 12: Digital In/Out
PRODUCT MANUAL SANVITO Digital In/Out Name Description DOUT1A Digital Out Dry-Contact 1 DOUT1B Digital Out Dry-Contact 1 DOUT2A Digital Out Dry-Contact 2 DOUT2B Digital Out Dry-Contact 2 DIN1+ Digital In 1 high side DIN1- Digital In 1 low side DIN2+ Digital In 2 high side DIN2- Digital In 2 low side... -
Page 13: Usb Host
PRODUCT MANUAL SANVITO USB Host Name Description Level Power supply +5V 500mA Data minus Data plus Ground Shield Schirm USB OTG Name Description Level Power supply +5V max 500mA Data minus Data plus USB Device ID Device ID Ground... -
Page 14: Micro Sd Card Holder
PRODUCT MANUAL SANVITO Micro SD card holder Name Description Level DAT3 Data +3,3V Pullup +3,3V Ground Supply +3,3V Clock +3,3V Ground DAT0 Data +3,3V DAT1 Data +3,3V DAT2 Data +3,3V Card detection +3,3V Write protection +3,3V Common ground Header: Micro SD card... -
Page 15: Expansion Board Connector Pcie
PRODUCT MANUAL SANVITO Expansion Board Connector PCIe Name Description Level VCC1 Supply +5,0V VCC1 Supply +5,0V VCC1 Supply +5,0V VCC1 Supply +5,0V VCC1 Supply +5,0V VCC2 Supply +3,3V VCC2 Supply +3,3V VCC2 Supply +3,3V VCC2 Supply +3,3V VCC2 Supply +3,3V Ground Ground Ground... - Page 16 PRODUCT MANUAL SANVITO Figure Mainboard...
-
Page 17: Wall Installation Instructions
PRODUCT MANUAL SANVITO Wall Installation Instructions On-Wall Cable Mounting with Cable Inlet If intended to use on-wall cable mounting make sure to replace the slide-in modules. Therefore remove the pre-installed modules. Following install the cable-inlet-modules and fasten the two screws. The cables can be stick trough the material. -
Page 18: Wall Installation
PRODUCT MANUAL SANVITO Wall Installation To install the wall holder use four screws with sufficient holding force. For a flushmounted cable installation consider the position of the flush-mount box as shown in the following figure. Flush-mount box Possible screw positioning 1: Aufputz-Montag Possible screw positioning 2: Unterputz-Monta... - Page 19 PRODUCT MANUAL SANVITO After installing the wall holder the device can be hook in. Finally fix the device on the wall holder with a screw from the bottom side as shown in the figure.
-
Page 20: Annex A: Technical Drawing
Annex A: Technical Drawing cable entry element for insert element for flush surfave mounting cables/ mounting cables/ Kabeldurchführung Einschubelement für für Aufputz-Kabel Unterputz-Kabel 03 04 227,4 271,4 216,96 (AA) Index Bezeichnung/designation X (1 : 1) Analog I/O Depiction shows also optional equipment/ Ethernet 2 Darstellung zeigt auch optionale Ausstattung Ethernet 3... -
Page 21: Annex B: Quality And Incoming Inspections
PRODUCT MANUAL SANVITO Annex B: Quality and Incoming Inspections Display and Touch Maximum Maximum Specification amount amount Notes display area other area Electrical Minimum One dot = one subpixel Bright Dot defects distance One pixel consists of three Dark Dot L ≥... -
Page 22: Annex C: Hardware Revision Information
PRODUCT MANUAL SANVITO Annex C: Hardware Revision Information This document is applicable for all products listed below. Platform Article Number Marking on PCB SANVITO 900-4185R SANVITO V2.1 Hardware Revision Changes Marking on PCB V2.1 initial release SANVITO V2.1... -
Page 23: Annex D: Guidelines And Standards
PRODUCT MANUAL SANVITO Annex D: Guidelines and Standards RoHS Declaration Devices comply with the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8th June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Supplier Declaration –... -
Page 24: Annex E: Technical Support
PRODUCT MANUAL SANVITO Annex E: Technical Support Before contacting the Garz & Fricke support team, please try to help yourself by the means of this manual or any other documentation provided by Garz & Fricke or the related websites. If this does not help at all, please feel free to contact us. Our technicans and engineers will be glad to support you. -
Page 25: Annex F: General Information
PRODUCT MANUAL SANVITO Annex F: General Information Trademarks and service marks Names and logos in this document may be trademarks of their respective companies. In some cases descriptions for copyrighted products are not explicitly indicated as such. The absence of the ™...
