Summary of Contents for EK-Quantum Momentum ROG Strix X299-E Gaming II D-RGB

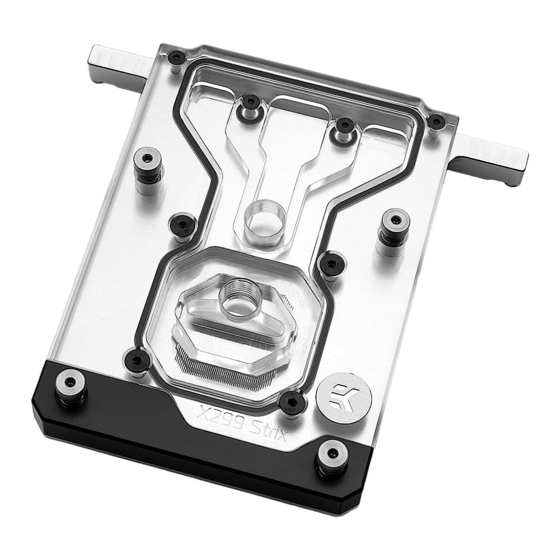

- Page 1 EK-Quantum Momentum ROG Strix X299-E Gaming II D-RGB MONOBLOCK USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR MOTHERBOARD APPLYING THERMAL COMPOUND CUTTING THERMAL PADS PLACING THERMAL PADS ON THE MOTHERBOARD PLACING THE BLOCK ON TO MOTHERBOARD ATTACHING BLOCK ON THE MOTHERBOARD REQUIRED TOOLS CONNECTING THE D-RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Preparing Your Motherboard
PREPARING YOUR MOTHERBOARD Mosfet Part: Mosfet Remove all encircled screws. There are five (5) screws on the back of screws the motherboard that needs to be removed in order to remove the factory provided MOSFET cooling solution. I/O Cover: After removing Mosfet part, remove three (3) screws and take off the I/O Plastic cover. -
Page 5: Applying Thermal Compound
APPLYING THERMAL COMPOUND Thermal Pad F – 1.0 mm Apply thermal compound on CPU heat spreader (IHS) with enclosed EK-TIM Ectotherm thermal grease. The quantity of about two rice grains is just about right. There is no need to cover the whole IHS. Applying too much thermal grease will have negative impact on the cooling performance! CUTTING THERMAL PADS Thermal Pad F 1.0mm... -
Page 6: Placing The Block On To Motherboard
PLACING THE BLOCK ON TO MOTHERBOARD Place the EK-Quantum Momentum ROG Strix X299-E Gaming II series water block to the motherboard or vice versa (as shown on the photo). Make sure that mounting holes are aligned. ATTACHING BLOCK ON THE MOTHERBOARD... - Page 7 Mosfet part: Use three (3) M2.5 X 5 AX1 Screws and PVC washers. Tighten the screws evenly. M2.5x5 AX1 Screw PVC Washer STEP 2 EK recommends the use of EK-Fittings. When using fittings other than EK series please use hose clamps or appropriate substitute Use this opening to secure the tubing to the barb.
-
Page 8: Required Tools
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from Monoblock D-RGB LED strip to the motherboard. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. Failure to do so will damage your motherboard or LED strip. D-RGB Header RGB Header REQUIRED TOOLS... -
Page 9: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
