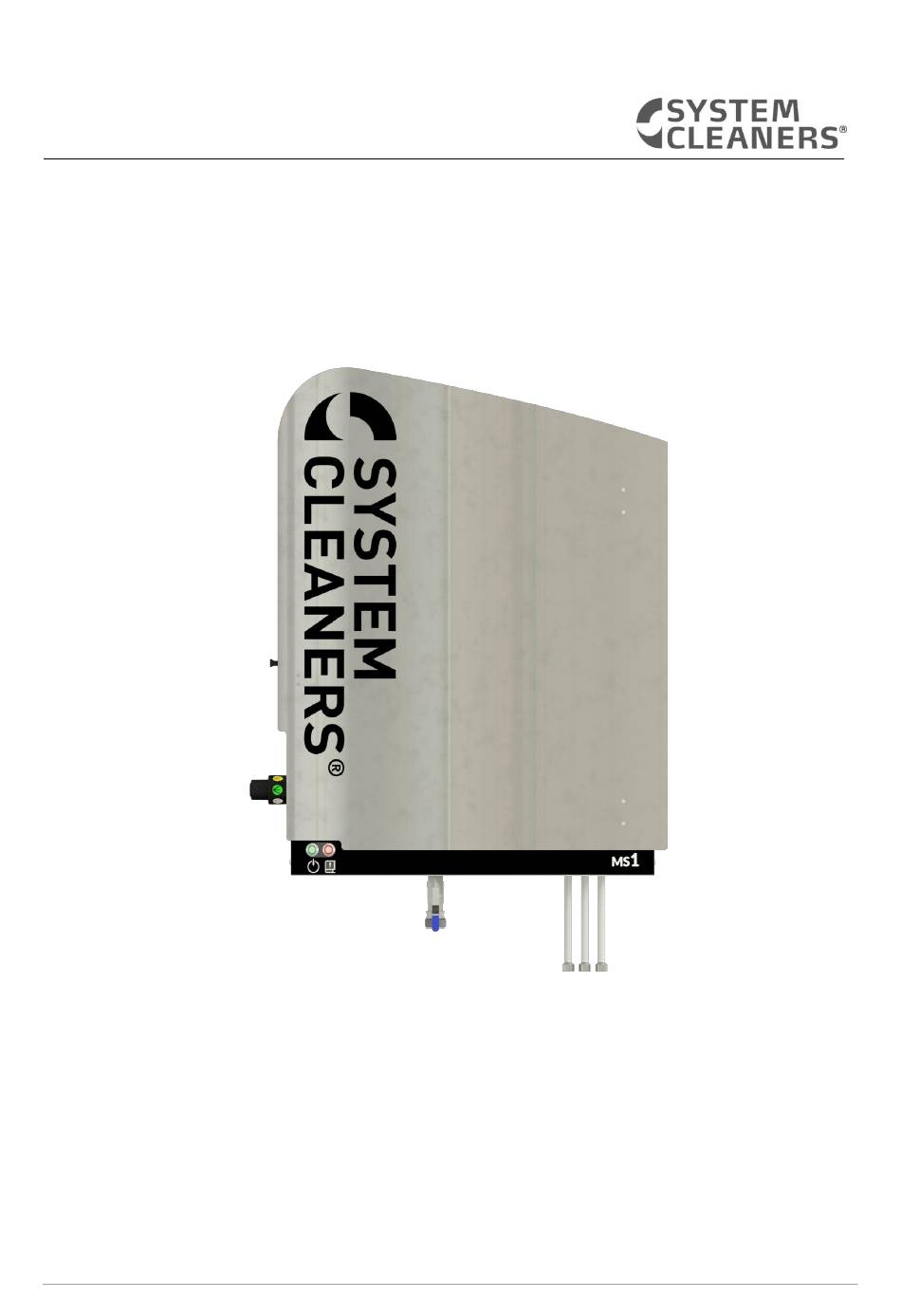

  • Page 1 MANUAL MS1-10 and MSC1-10 Version 1 (03.2020. EN)
  • Page 2 System Cleaners A/S cannot be held liable for consequential damage resulting from improper use of the equipment. Proper use includes the following: •...
  • Page 3 We declare that this product is in conformity with the following directives: • 2006/42/EC Directive on Machinery • 2014/35/EU Low Voltage Directive • 2014/30/EU EMC Directive Per Kjøller Development Manager (03.2020. EN) (MS1-10, MSC1-10) Page 3 of 71 Version 1...
  • Page 4 Main station (MS1-10/MSC1-10) A main station has a built-in pump, a built-in satellite, a built-in compressor (depending on model) and is connected to electrical power, water mains, a number of chemicals and compressed air (depending on model). It supplies pressurized water to the built-in satellite.
  • Page 5 MS1-10 230V Pos. Description Model Start/Stop Selector switch Inlet water Pump Injector system Outlet Electrical control 120 V Compressor MSC1-10 230 V (03.2020. EN) (MS1-10, MSC1-10) Page 5 of 71 Version 1...
  • Page 6 In order to facilitate maintenance of the equipment, it is recommended to fit a shut-off valve in the pipelines immediately at the connections for water. Pipe supports Always use pipe supports designed for the pipe size and material and maximum working pressure and temperature. (03.2020. EN) (MS1-10, MSC1-10) Page 6 of 71 Version 1...
  • Page 7 (03.2020. EN) (MS1-10, MSC1-10) Page 7 of 71 Version 1...
  • Page 8 Internally, protection corresponds to IP 55. On a number of components hazardous voltages can occur. During operation the cabinet must always be closed. Never insert or remove a plug from an electrical socket unless the power has been switched off. (03.2020. EN) (MS1-10, MSC1-10) Page 8 of 71 Version 1...
  • Page 9 The system must not be used together with solvents or volatile liquids that pose a health risk or are inflammable. In the event that the system is used with non-approved soaps, chemicals or solvents, System Cleaners A/S disclaims all liability.
  • Page 10 Valve in inlet or outlet closed Open valves Inlet water pressure less than 1.5 Increase inlet pressure to between 1.5 The device will not start bar (23 psi) and 10 bar (23 and 145 psi) (03.2020. EN) (MS1-10, MSC1-10) Page 10 of 71 Version 1...
  • Page 11 Electrical Control MS1-10 120V Pos. Version Part no. Description 36-700050 Multirelay 9 24V 36-700040 Time relay 35-900084 Transformer 25VA 120V 35-900040 Fuse 1A (03.2020. EN) (MS1-10, MSC1-10) Page 11 of 71 Version 1...
  • Page 12 Non-return valve 1/2" AISI 304/NBR 20-400053 Dosing valve concentrated AISI 316/Viton 20-000283 Ball valve 1/2" with actuator 15-010162 Air fitting elbow ø2,0 Nickel-plated brass/Plastic 32-300010 Shaft seal cartridge 1/3/5 M3 (03.2020. EN) (MS1-10, MSC1-10) Page 12 of 71 Version 1...
  • Page 13 TECHNICAL SPECIFICATIONS (03.2020. EN) (MS1-10, MSC1-10) Page 13 of 71 Version 1...
  • Page 14 6.7-5.6 A Recommended cable cross section 20 A 10 A Chemical 3x1.5 mm² / 3xAWG16 Dosing range Dimensions 0.2–6%* Weight Installation 50 kg / 110 lbs 60 kg / 132 lbs (03.2020. EN) (MS1-10, MSC1-10) Page 14 of 71 Version 1...
  • Page 15 Pump curve USgal CRNE 3-8 1x230V 50 Hz CRN 3-8 1x120V 60 Hz Liter/min (03.2020. EN) (MS1-10, MSC1-10) Page 15 of 71 Version 1...
  • Page 16 Wiring diagram MS1-10 (03.2020. EN) (MS1-10, MSC1-10) Page 16 of 71 Version 1...
  • Page 17 Wiring diagram MSC1-10 (03.2020. EN) (MS1-10, MSC1-10) Page 17 of 71 Version 1...
  • Page 18 Please note: We reserve the right to make alterations to the technical specifications without notice. (03.2020. EN) (MS1-10, MSC1-10) Page 18 of 71 Version 1...
  • Page 19 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F (03.2020. EN)
  • Page 20 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705170 MS1/MSC1-10 Sep. D (03.2020.
  • Page 21 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705175 MS1/MSC1-10 Sep. F (03.2020.
  • Page 22 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D (03.2020. EN)

  • Page 23: Ms1/Msc1-10 Function: F

    Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705170 MS1/MSC1-10 Sep.
  • Page 24 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705175 MS1/MSC1-10 Sep.
  • Page 25 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F (03.2020. EN)
  • Page 26 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705170 MS1/MSC1-10 Sep.
  • Page 27 Border label MS1-10 15-000071 Bulkhead Union air ø8 Plastic 15-000061 Air fitting 8x8 elbow Plastic 03-705101 Base model MS1-10 / AMM50-10 1x120V 50/60Hz NPT 03-705115 Control assembly MS1-10 1x120V 60Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705175 MS1/MSC1-10 Sep.
  • Page 28 MS1-10 F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 69-500280 Border label MS1-10 36-800015 On/off buttons G5 15-000071 Bulkhead Union air ø8...
  • Page 29 MS1-10 F + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705170 MS1/MSC1-10 Sep. D 69-500280 Border label MS1-10 36-800015 On/off buttons G5 15-000071 Bulkhead Union air ø8...
  • Page 30 MS1-10 F + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705175 MS1/MSC1-10 Sep. F 69-500280 Border label MS1-10 36-800015 On/off buttons G5 15-000071 Bulkhead Union air ø8...
  • Page 31 MS1-10 F D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 69-500280 Border label MS1-10 36-800015 On/off buttons G5 15-000071 Bulkhead Union air ø8...
  • Page 32 MS1-10 F D + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705170 MS1/MSC1-10 Sep. D 69-500280 Border label MS1-10...
  • Page 33 MS1-10 F D + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705175 MS1/MSC1-10 Sep. F 69-500280 Border label MS1-10...
  • Page 34 MS1-10 F F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 69-500280 Border label MS1-10 36-800015 On/off buttons G5 15-000071 Bulkhead Union air ø8...
  • Page 35 MS1-10 F F + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705170 MS1/MSC1-10 Sep. D 69-500280 Border label MS1-10...
  • Page 36 MS1-10 F F + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705175 MS1/MSC1-10 Sep. F 69-500280 Border label MS1-10...
  • Page 37 MSC1-10 F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 69-500290 Border label MSC1-10 04-000012 Blind plug ø15 black...
  • Page 38 MSC1-10 F + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705170 MS1/MSC1-10 Sep. D...
  • Page 39 MSC1-10 F + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705055 MS1/MSC1-10 function: F 03-705175 MS1/MSC1-10 Sep. F...
  • Page 40 MSC1-10 F D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 69-500290 Border label MSC1-10 04-000012 Blind plug ø15 black...
  • Page 41 MSC1-10 F D + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705170 MS1/MSC1-10 Sep.
  • Page 42 MSC1-10 F D + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705060 MS1/MSC1 -10 function: F D 03-705175 MS1/MSC1-10 Sep.
  • Page 43 MSC1-10 F F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 69-500290 Border label MSC1-10 04-000012 Blind plug ø15 black...
  • Page 44 MSC1-10 F F + D - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705170 MS1/MSC1-10 Sep.
  • Page 45 MSC1-10 F F + F - 230V Item Part Number Description Material 05-029831 Cabinet 500mm MS1-10/AMM50-10 03-705110 Base model MS1/MSC1-10 AMM50-10 1x230V BSP 03-705150 Compressor assembly MSC1-10 1x230V 50Hz 03-705165 Injector system MS1/MSC1-10 03-705065 MS1/MSC1 -10 function: F F 03-705175 MS1/MSC1-10 Sep.
  • Page 46 02-020221 Item Part Number Description Material 16-800070 Outlet nipple 1/2"x67 E/I AISI 316 20-000220 Ball valve 1/2" (blue) AISI 316 30-000050 Outlet coupling 1/2" Special stainless (03.2020. EN) (MS1-10, MSC1-10) Page 46 of 71 Version 1...
  • Page 47 02-020226 Item Part Number Description Material 16-800070 Outlet nipple 1/2"x67 E/I AISI 316 20-000221 Ball valve 1/2" (Yellow) AISI 316 30-000050 Outlet coupling 1/2" Special stainless (03.2020. EN) (MS1-10, MSC1-10) Page 47 of 71 Version 1...
  • Page 48 AISI 316 15-090402 Color ring 4mm green Plastic 15-090406 Color ring 4mm grey Plastic 08-800807 Cheese-head screw M8x50 25-000597 Inlet pipe 3/4" MS1-10 AISI 304 17-000083 O-ring 15,54x2,62 55-110150 Air hose ø4mm green PA12 55-110170 Air hose ø4mm grey PA12...
  • Page 49 Handle, F 05-020000 Pneumatic assembly S4/MS G5 55-100040 Air hose 8mm black PA12 55-100030 Air hose 6mm green PA12 15-090606 Color ring 6mm green Plastic 08-100501 Screw button head M5x10 (03.2020. EN) (MS1-10, MSC1-10) Page 49 of 71 Version 1...
  • Page 50 03-705060 (03.2020. EN) (MS1-10, MSC1-10) Page 50 of 71 Version 1...
  • Page 51 Screw button head M5x10 55-100040 Air hose 8mm black PA12 05-040105 Injector 2 connections with adapter 20-304003 Handle, F D 55-600015 Hose nipple M12x7,5 AISI 316 55-600016 Hose nipple 1/4"x7,5 AISI 316 (03.2020. EN) (MS1-10, MSC1-10) Page 51 of 71 Version 1...
  • Page 52 03-705065 (03.2020. EN) (MS1-10, MSC1-10) Page 52 of 71 Version 1...
  • Page 53 Air hose ø4mm blue PA12 15-090403 Color ring 4mm red Plastic 15-090404 Color ring 4mm blue Plastic 05-020000 Pneumatic assembly S4/MS G5 05-040105 Injector 2 connections with adapter 20-304004 Handle, F F (03.2020. EN) (MS1-10, MSC1-10) Page 53 of 71 Version 1...
  • Page 54 Set screw M12x45 08-001201 Lock nut M12 08-301202 Disc washer ø12 25-250150 Outlet pipe MS1-10/AMM50-10 AISI 304 Inlet pipe 3/4" NPT MS1-10/AMM50-10/AMM50-10 05-040098 Vemag 31-308001 Pump CRN 3-8 1,1 kW 1x120V 15-000010 Adapter ø8x1/4" NPT SS AISI 304 (03.2020. EN)
  • Page 55 06-000650 Pump CRNE 3-8 A-CA-GI-E-HQQE 08-201211 Set screw M12x45 08-001201 Lock nut M12 08-301202 Disc washer ø12 25-250150 Outlet pipe MS1-10/AMM50-10 AISI 304 05-040097 Inlet pipe 3/4" BSP MS1-10/AMM50-10/AMM50-10 Vemag (03.2020. EN) (MS1-10, MSC1-10) Page 55 of 71 Version 1...
  • Page 56 08-000805 Lock nut M8 08-200807 Set screw M8x30 08-300803 Plane washer ø8 08-100408 Screw M4x8 cylinder head 42-200135 Consol for control MS1-10/AMM50-10 AISI 304 08-000502 Lock nut M5 08-100515 Screw buttonhead M5x10 08-104015 Screw for plastic 5x12 37-500620 Control 1x120v/60Hz (03.2020.
  • Page 57 Nut M8 08-000805 Lock nut M8 08-200807 Set screw M8x30 08-300803 Plane washer ø8 41-800140 Dividing plate MSC1-10 PE-foam 39-200000 Axial fan 120x120, 230V, IP55 03-705160 Preassembled Compressor MSC1-10 1x230V 50Hz (03.2020. EN) (MS1-10, MSC1-10) Page 57 of 71 Version 1...
  • Page 58 17-000012 Gasket 1/4" PA12 35-600111 Pressure switch for Compressor 230V 16-501400 Plug 1/4" Nickel-plated brass 34-900055 Pressure vessel 0,09L for MS1-10/AMM50-10 AISI 304 15-010010 Air fitting 1/4"x6 elbow Nickel-plated brass/Plastic 20-200140 Non-return valve ø6 air 15-000075 Pneumatic reduction 8x6 Plastic...
  • Page 59 Item Part Number Description Material 30-590072 Clamp for K55,5mm flange AISI 304 30-590054 Clamp gasket ø33,7 ISO 1127 Viton 02-020021 Water outlet Blue 1/2” complete 02-020290 Injector system MS1/MSC1 -10 (03.2020. EN) (MS1-10, MSC1-10) Page 59 of 71 Version 1...
  • Page 60 Hose clip for 1/4" 04-000082 Diaphragm nipple EPDM 27-300040 Suction filter ø6,5 AISI 316 55-200061 Suction hose 1/4" yellow 05-040130 MS1-10 sep. D-injector preassembled 02-020026 Water outlet yellow 1/2” complete (03.2020. EN) (MS1-10, MSC1-10) Page 60 of 71 Version 1...
  • Page 61 Air hose 6mm green PA12 02-020021 Water outlet Blue 1/2” complete 04-000082 Diaphragm nipple EPDM 27-300040 Suction filter ø6,5 AISI 316 15-010040 Air fitting ø6 Y Plastic 05-040135 MS1-10 sep. F-injector preassembled (03.2020. EN) (MS1-10, MSC1-10) Page 61 of 71 Version 1...
  • Page 62 20-300080 Regulator air without filter Plastic 20-300141 Filter air 1/4" Plastic 22-000071 Gauge ø20 0-10 bar AISI 304/brass/glycerine 55-110048 Air hose ø6x300 black PA12 55-110063 Air hose 6x300 red PA12 (03.2020. EN) (MS1-10, MSC1-10) Page 62 of 71 Version 1...
  • Page 63 05-029831 (03.2020. EN) (MS1-10, MSC1-10) Page 63 of 71 Version 1...
  • Page 64 Nut for lock Nylon 72-100010 Key for housing Plastic 08-100019 Allen screw M5x16 BH RF 08-300501 Plane washer ø5 46-160170 Bracket for hinge MS1-10/AMM50-10 AISI 304 42-600105 Hinge for door, complete AISI 304 08-000602 Lock nut M6 08-900010 Rawlplugs S 10 43-100072-02...
  • Page 65 Part Number Description Material 21-000060 Flow switch 3/4" 20-500050 Strainer 3/4" brass Nickel-plated brass 25-000632 Inlet pipe 3/4" MS1-10/AMM50-10 BSP AISI 304 30-532130 Pump coupling inlet MS1-10/AMM50-10 AISI 304 30-300060 Nito male coupling with 3/4" external thread Chrome-plated brass 30-300050-01 Nito female coupling with 3/4"...
  • Page 66 Part Number Description Material 21-000060 Flow switch 3/4" 20-500050 Strainer 3/4" brass Nickel-plated brass 25-000633 Inletpipe 3/4" MS1-10/AMM50-10 NPT AISI 304 30-532130 Pump coupling inlet MS1-10/AMM50-10 AISI 304 30-300060 Nito male coupling with 3/4" external thread Chrome-plated brass 30-300050-01 Nito female coupling with 3/4" internal thread Chrome-plated brass (03.2020.
  • Page 67 O-ring 10,1x1,6 NBR 70 shore 15-090606 Color ring 6mm green Plastic 55-110081 Air hose ø4x280 black PA12 55-100037 Air hose 6x500 green PA12 16-110012 Adapter for injector AISI 316 17-000132 O-ring 9,92x2,62 (03.2020. EN) (MS1-10, MSC1-10) Page 67 of 71 Version 1...
  • Page 68 O-ring 9,92x2,62 20-400056 Dosing valve concentrated AISI 316/Viton 17-000083 O-ring 15,54x2,62 26-100030 Clamping ring fitting 1/8"x6 AISI 316 26-000392 Pipe ø6x1 for injector MS1-10 AISI 304 16-500010 Plug M12x1 AISI 316 (03.2020. EN) (MS1-10, MSC1-10) Page 68 of 71 Version 1...
  • Page 69 Air fitting elbow ø1,5 Nickel-plated brass/Plastic 15-090606 Color ring 6mm green Plastic 17-000083 O-ring 15,54x2,62 26-100030 Clamping ring fitting 1/8"x6 AISI 316 26-000392 Pipe ø6x1 for injector MS1-10 AISI 304 (03.2020. EN) (MS1-10, MSC1-10) Page 69 of 71 Version 1...
  • Page 70 Hinge for door 500 mm AISI 304 08-300602 Disc washer ø6 08-200602 Set screw M6x20 08-300605 Disc washer ø6 Nylon 08-000504 Cap nut M5 08-800505 Screw M5x10 cylinder head (hexagon) (03.2020. EN) (MS1-10, MSC1-10) Page 70 of 71 Version 1...
  • Page 71 System Cleaners A/S Halkjærvej 17 DK-9200 Aalborg SV Denmark Tel.: +45 96 34 04 04 info@systemcleaners.com www.systemcleaners.com (03.2020. EN) (MS1-10, MSC1-10) Page 71 of 71 Version 1...
