Summary of Contents for Raycap DC12-48-60-0-25E

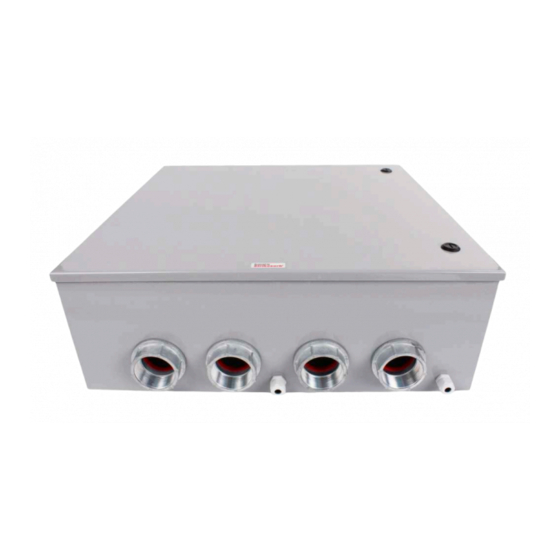

- Page 1 DC12-48-60-0-25E INSTALL INSTRUCTIONS Installation Instructions: DC12-48-60-0-25E www.raycapsurgeprotection.com...
-
Page 3: Table Of Contents
INSTALL INSTRUCTIONS Contents Copyright Disclaimer Warnings Introduction OVP Package Contents Prerequisites Tools Port Deinitions / OVP Deinitions Installing 2" Conduit Installing Alarm Cable / Coniguring alarm “daisy chain” Installing Ground Cable Installing DC Trunk Cables (-48V power supply) (-48V to tower / roof) ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 1 of 10... -
Page 4: Copyright
This documentation is intended for the use of Raycap customers only for the purposes of the agreement under which the document is submitted, and no part may be used, reproduced, modiied or transmitted in any form or means without the prior written permission of Raycap. -
Page 5: Introduction
Installers of Raycap’s RRH surge protective and iber/power management solutions must be industry professionals who have attended training on the proper installation of the equipment by Raycap and/or the mobile operator. Installers are required to read this installation guide thoroughly prior to installation of the Raycap RRH protection equipment. -
Page 6: Port Deinitions / Ovp Deinitions
12 to 22 AWG Double lug ground #6 AWG Can be rotated vertically or horizontally 2” conduit Ground Ground Bar use 0.2 - 0.39 wire 14 to 1/0 AWG ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 4 of 10... -
Page 7: Installing 2" Conduit
Install 2" conduit into the conduit ports on bottom of unit as needed. Installing alarm cable Connect wires according to your established color guide. Connect alarm wires to alarm lugs. ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 5 of 10... - Page 8 6 module connection If less than 12 modules are powered, disconnect termination loop of “Daisy Chain” and install into alarm wire assembly at the last powered module. Alarm installation complete. ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 6 of 10...
-
Page 9: Installing Ground Cable
DC12-48-60-0-25E INSTALL INSTRUCTIONS Procedure Installing ground cable Feed ground cable through ground port and connect to ground lug. Ground installation complete. ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 7 of 10... -
Page 10: Installing Dc Trunk Cables
Connect wires according to AT&T color guide. Installing DC Jumpers (-48V to tower/roof) Feed DC trunk cable through conduit port hole. Connect wires according to AT&T color guide. ©Raycap • All rights reserved (320-0666) Rev.B www.raycapsurgeprotection.com Page 8 of 10...
