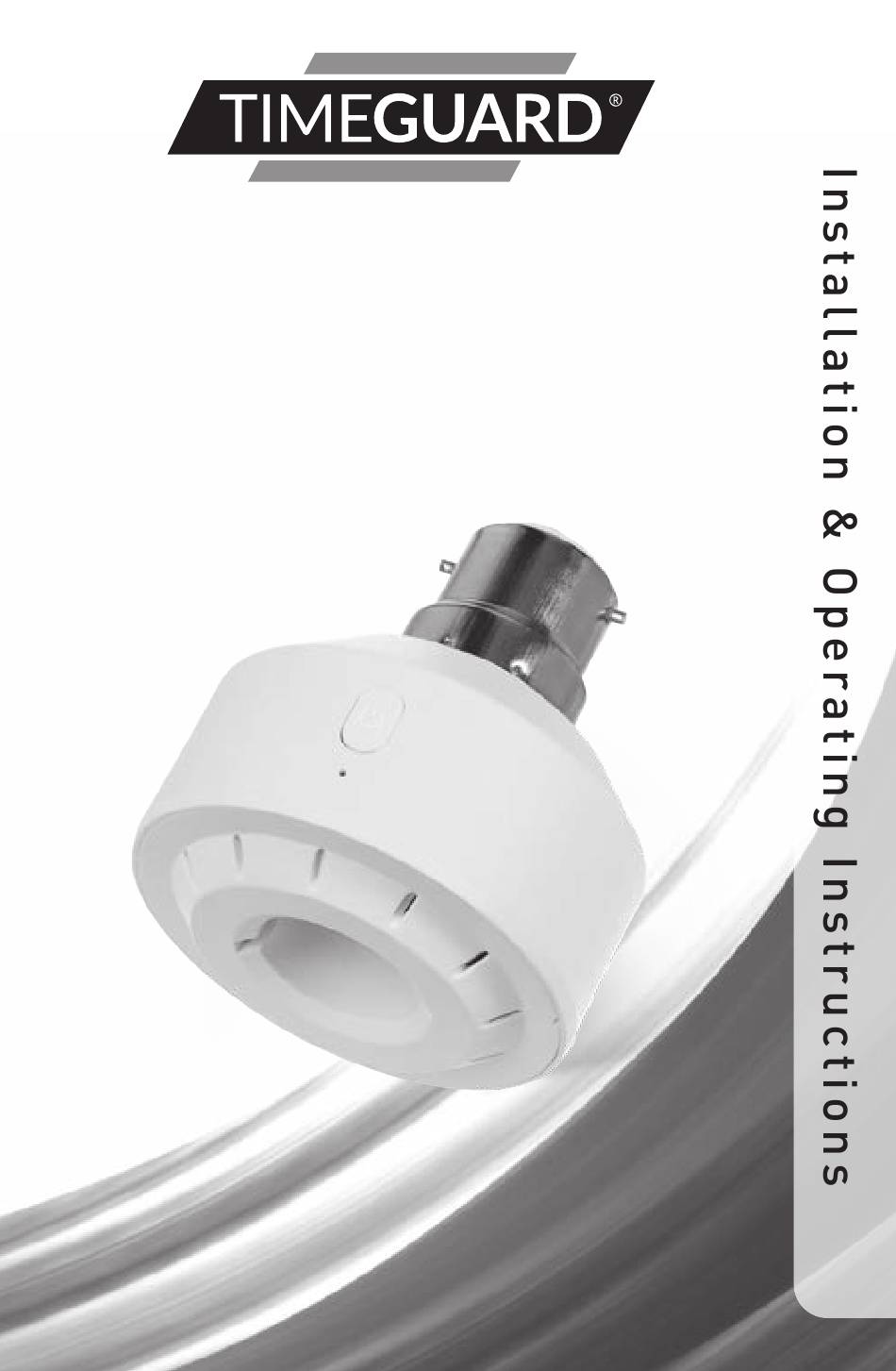

Wi-Fi Smart Lamp
Holder Adapter
Model: WFLH

Advertisement

Table of Contents
loading

Summary of Contents for Theben Timeguard WFLH

  • Page 1 Wi-Fi Smart Lamp Holder Adapter Model: WFLH...

  • Page 2: General Information

    1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • To avoid electric shock, please turn OFF the power before installing. • Do not plug in any lamp that exceeds the capacity of the Smart Lamp Holder Adapter.

  • Page 3: System Requirements

    4. System Requirements • Smartphone/Tablet with at least iOS 8.0 or Android 5.0 • WLAN-enabled router: 2.4GHz (Separate Band) • Tuya Smart App 5. Downloading App and Registration Note: the smartphone or tablet must be connected to a 2.4GHz band on the router. Paring on the 5GHz band will result in paring either timing out or being unsuccessful.
  • Page 4 • Install the App and open it to the registration screen. Click on the ‘Register’ button.
  • Page 5 • Tap ‘Agree’ to accept the privacy policy.
  • Page 6 • Choose your region by selecting the Country Code. Enter your email address or phone number and click ‘Get Verification Code’.
  • Page 7 • Enter the Verification Code sent to the email address or phone number that you provided. Once you have successfully entered the code, it will automatically move you to the Password screen. • Assign a password (this must be between 6 to 20 characters including letters and digits) and click ‘Done’.
  • Page 8 • You are now registered and by default will see the App home page.

  • Page 9: Home Management

    6. Home Management Note: Before adding any devices to your account, structuring your household (or the property) may be a consideration if you plan on using Smart devices in different rooms or locations. • Select the ‘Me’ option from the home page which will navigate you to your personal settings.
  • Page 10 After this select the ‘Home Management’ option.
  • Page 11 • Select the ‘Home Name’ option and enter your last name or even ‘My Home’ if preferred. (This is required to allocate devices to separate rooms later once paired). • Next tick the rooms you wish to assign to your account; this can be changed at any time and custom room names can also be added.

  • Page 12: Pairing Your Device(S)

    7. Pairing your Device(s) • To add a new device to your account, click the ‘Add Device’ button (or click on the + button in the top right hand corner)
  • Page 13 • Notice the different categories of products on the left hand side; it is essential that the correct product is selected for the pairing process to be successful. For the Wi-Fi Smart Lamp Holder Adapter, choose the ‘Lighting’ category and select ‘Lighting (Wi-Fi)’...
  • Page 14 • Enter the password for the network and press the ‘Next’ button.
  • Page 15 • Select the ‘Fast Flashing (0.5 seconds /1 time).
  • Page 16 • The App will pair the smart product to the network. The time it takes for pairing to complete, which will differ depending on the network connection. Shortly into the pairing process, the flashing Wi-Fi light will turn OFF and then become stable.
  • Page 17 • If the following screen is displayed, then the product has been paired successfully. To rename your product, select the pencil icon. If this is not required, click on the ‘Done’ button and you will be guided to the device controls menu.
  • Page 18 • To navigate back to the home screen, press the ‘Back’ button. The newly paired Wi-Fi Smart Plug will now be listed. Note: If the pairing process was not successful, disconnect the mains supply from the product and re-establish power to the unit.
  • Page 19 8. Smart Home Assistant • To add your device to your Smart Home Assistant services, such as Google Home or Amazon Alexa, follow the on-board instructions located on the TuyaSmart App. To do this, select the ‘Me’ option from the home menu.
  • Page 20 • Then select ‘More Services’.
  • Page 21 • On the more services screen, you will see support or different applications for automated Smart Home control. Follow the instructions on the TuyaSmart App to add the devices to your Smart Home Assistant service. Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service.
  • Page 22 9. Support Note: If you have any concerns that the intended application of this product does not meet your requirements, please contact Timeguard directly prior to installation.

  • Page 23: Year Guarantee

    10. Guarantee & Company Details 3 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture, within 3 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge.
  • Page 24 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline: HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Coordinators will be online to assist in resolving your query. For a product brochure please contact: Timeguard Limited.
