Summary of Contents for Theben Timeguard WFDBC

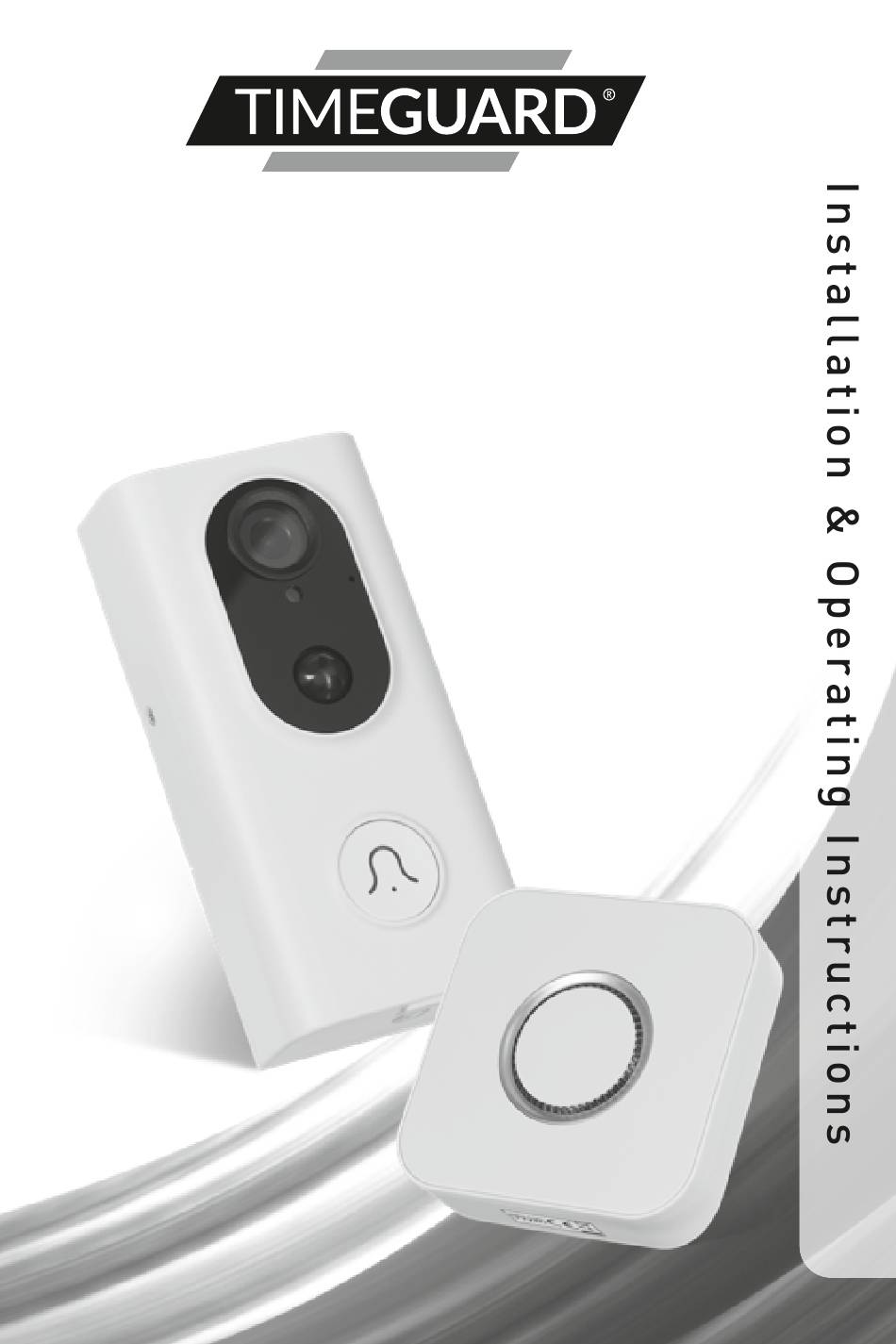

- Page 1 Wi-Fi Smart Camera Doorbell & Chime Model: WFDBC...
-
Page 2: General Information
1. General Information These instructions should be read carefully in full before installation and retained for further reference and maintenance. 2. Safety If cleaning of the Smart Doorbell Camera is required, wipe with a dry cloth. • For reasons of electrical safety, do not immerse in water or any other liquid. •... -
Page 3: System Requirements
EC Directives: Conforms to the latest directives • Dimensions: H= 82mm, W= 82mm, D= 55.6mm • 4. System Requirements Smartphone/Tablet with at least iOS 8.0 or Android 5.0 • WLAN-enabled router: 2.4GHz (Separate Band) • Tuya Smart App • 5. Installation Doorbell Remove the wall plate from the Wi-Fi doorbell by undoing the retaining •... - Page 4 6. Downloading App and Registration Note: the smartphone or tablet must be connected to a 2.4GHz band on the router. Paring on the 5GHz band will result in paring either timing out or being unsuccessful. Refer to your ISP (Internet Service Provider) on separating the bands if required.
- Page 5 Install the App and open it • to the registration screen. Click on the ‘Register’ button. Tap ‘Agree’ to accept • the privacy policy.
- Page 6 Choose your region by selecting the Country Code. Enter your email • address or phone number and click ‘Get Verification Code. ’ Enter the Verification Code sent • to the email address or phone number that you provided. Once you have successfully entered the code, it will automatically move you to the Password screen.
- Page 7 You are now registered and by default will see the App home page. •...
-
Page 8: Home Management
7. Home Management Note: Before adding any devices to your account, structuring your household (or the property) may be a consideration if you plan on using Smart devices in different rooms or locations. Select the ‘Me’ option from the home page which will navigate you to your •... -
Page 9: Pairing Device(S)
Select the ‘Home Name’ option • and enter a name for the property such as ‘My Home’ if preferred. (This is required to allocate devices to separate rooms later once paired). Next tick the rooms you wish to • assign to your account; this can be changed at any time and custom room names can also be added. - Page 10 Notice the different categories • of products; it is essential that the correct product is selected for the pairing process to be successful. For the Wi-Fi Doorbell, select the ‘Security and Sensor’ category on the left hand side and then choose the ‘Smart Camera’...
- Page 11 Enter the Wi-Fi password for your network if the field is not • filled in already. Note that dual band or 5GHz networks will not be supported and may require either being disabled or split as a separate network. Refer to your ISP (Internet Service Provider) on how to do this if required.
- Page 12 The App will prompt you to scan a QR code that needs to be read by the • camera in the Wi-Fi doorbell to initiate pairing, press continue on the App and a QR code should now be generated to pair the product to your account.
- Page 13 The App will now begin pairing the • smart camera to your account. Once the device is paired you can change the default name to anything of • your choice by selecting the pen icon. Once you are happy with the device name press the done button to view the live feed of the Wi-Fi doorbell.
- Page 14 9. Pairing Device(s) AP Mode Please note that this section is a continuation of ‘Section 8’ bullet point 3 and should only be used if the product is in AP Mode (Access Point Mode). After selecting the ‘Other Mode’ • option from the reset device screen the ‘Network Configuration Mode’...
- Page 15 Enter the Wi-Fi password for • your network if the field is not filled in already. Note that dual band or 5GHz networks will not be supported and may require either being disabled or split as a separate network. Refer to your ISP (Internet Service Provider) on how to do this if required.
- Page 16 At this stage the devices hotspot should be visible, connect to the • ‘smart life’ Wi-Fi network on your mobile phone or tablet. Once you are connected head back to the Tuya Smart App. The App and device should now start the pairing process.
- Page 17 Once the device is paired you can change the default name to anything of • your choice by selecting the pen icon. Once you are happy with the device name press the done button to view the live feed of the Wi-Fi doorbell. 10.
- Page 18 11. Removing your device(s) You can remove the device from your account. For example, if you’re giving away your Wi-Fi doorbell or transferring ownership of the product, you need to do this first so that someone else can set it up under their own account. Once the Wi-Fi doorbell is removed, all activity history including recordings related to the Wi-Fi doorbell will be erased apart from what is saved locally on your mobile or tablet device’s gallery and the SD card connected to the camera...
- Page 19 • Once on the settings menu scroll to the remove device option and select it to remove the device from your account.
- Page 20 12. Smart Home Assistant To add your device to your Smart Home Assistant services, such as Google • Home or Amazon Alexa, follow the on-board instructions located on the TuyaSmart App. To do this, select the ‘Me’ option from the home menu, and then select ‘More Services.
- Page 21 On the more services screen, you will see support or different applications • for automated Smart Home control. Follow the instructions on the TuyaSmart App to add the devices to your Smart Home Assistant service. Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service.
-
Page 22: Year Guarantee
13. Support Note: If you have any concerns that the intended application of this product does not meet your requirements, please contact Timeguard directly prior to installation. If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline;... - Page 23 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query. For a product brochure please contact: Timeguard Limited.
