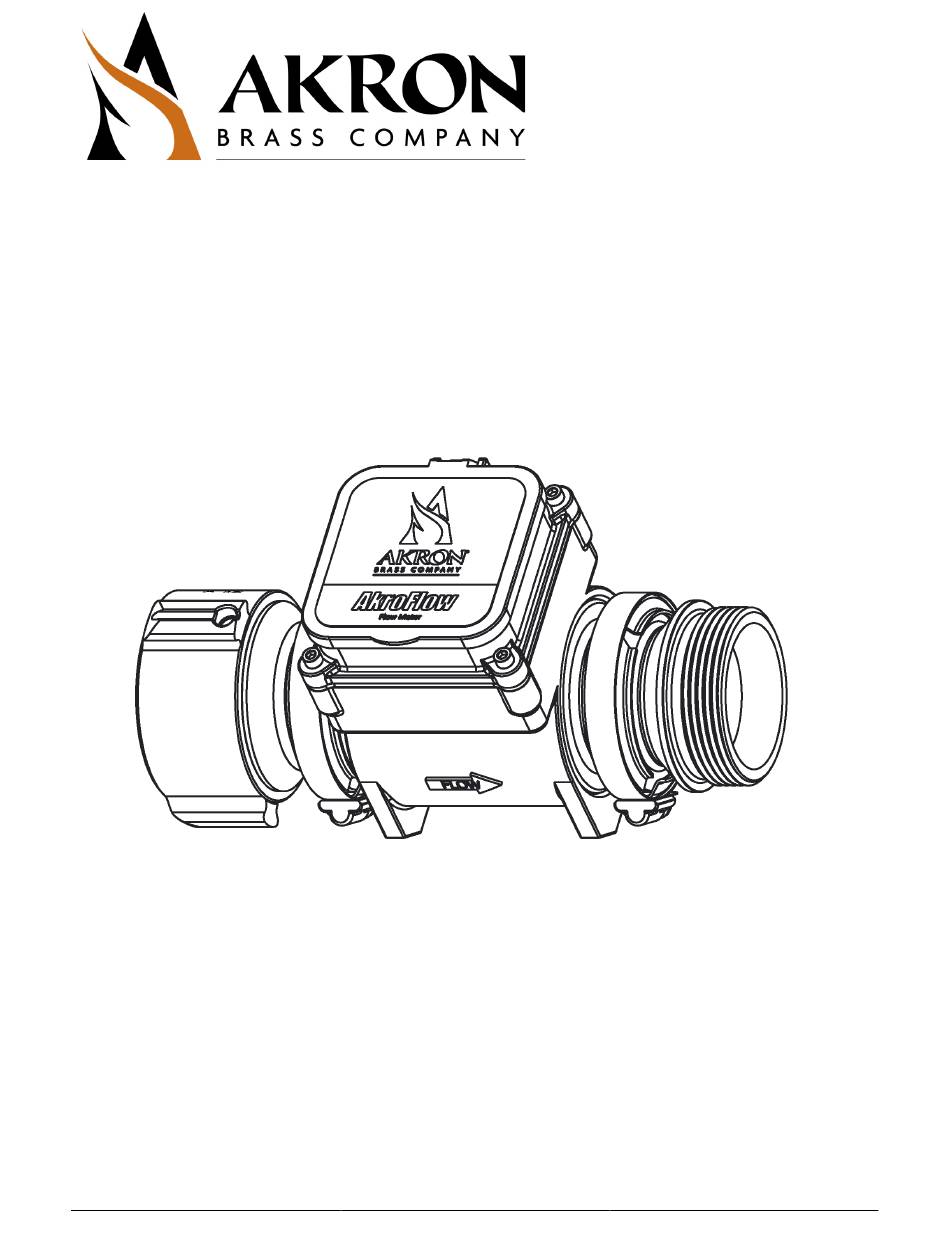

STYLE 9301 AkroFlow™ FLOW METER
INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS
The following is intended to provide the basic instructions for installation, operation, and maintenance. Read and
understand these operating instructions before use.
PHONE: 800.228.1161 I WEBSITE: www.akronbrass.com
Sheet: 127710
Revision 9/2020
Page: 1 of 8
Advertisement
Table of Contents
Related Manuals for Akron Brass AkroFlow 9301
Summary of Contents for Akron Brass AkroFlow 9301
- Page 1 STYLE 9301 AkroFlow™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS The following is intended to provide the basic instructions for installation, operation, and maintenance. Read and understand these operating instructions before use. PHONE: 800.228.1161 I WEBSITE: www.akronbrass.com Sheet: 127710 Revision 9/2020 Page: 1 of 8...
-
Page 2: Product Warnings
STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS Read and follow the operating instructions before use. For firefighting use only. Product Ratings Specifications: Type Electromagnetic (Mag-Meter) Weight 5.3# (2.4kg) Dimensions: L x W x H 10-3/4” (273mm) x 4-3/8” (111mm) x 6” (152mm) Flow Passage 2”... - Page 3 STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS • Do not connect the AkroFlow™ flow meter directly to a rigid discharge or intake. The weight of a hose with water combined with potential rapid movement of the hose while flowing can create extremely high forces on the AkroFlow™...

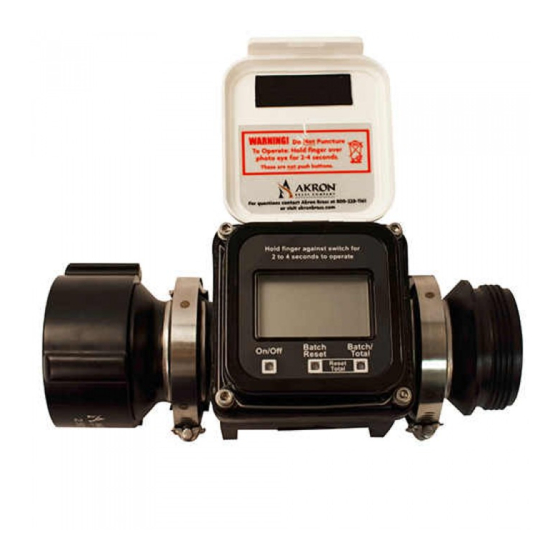

- Page 4 STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS Introduction The AkroFlow™ flow meter is a 2” full-bore corrosion resistant plastic bodied electromagnetic (mag meter) flow meter designed for testing fire fighting equipment. The AkroFlow™ is provided with a 2-1/2” female fulltime swivel on the inlet and a 2-1/2”...
-
Page 5: Setup Instructions
STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS Figure 1 To replace the six (6) AA batteries located inside the AkroFlow™, simply remove the four cover bolts and gently remove the top cover. Be careful not to lose the washers. Move the top cover to one side and remove the foam retainer which covers the battery tray. - Page 6 STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS The AkroFlow™ has a maximum operating pressure of 200psi (14 bar), therefore when placing the AkroFlow™ in the hose lay, consider the pressure loss of the hose being used so the pressure at the AkroFlow™...
-
Page 7: Recommended Storage
Akron Brass will repair or replace product which fails to satisfy this warranty. Repair or replacement shall be at the discretion of Akron Brass. Products must be promptly returned to Akron Brass for warranty service. We will not be responsible for: wear and tear;... -
Page 8: Revision History
STYLE 9301 AkroFlow™ ™ FLOW METER INSTALLATION, OPERATING, AND MAINTENANCE INSTRUCTIONS Revision History Revision Reason Updated 5/2019 New Instruction 9/2020 Added warning note about not hanging the AkroFlow™ off a discharge or intake. PHONE: 800.228.1161 I WEBSITE: www.akronbrass.com Sheet: 127710 Revision: 9/2020 Page:8 of 8...
