- Page 1 EX & MV Control Surface Setup Guide...
-
Page 2: Table Of Contents
Important notice: ............................4 Safety and warning information:.................. 5 Product overview ......................7 Welcome to Vista by Chroma Q™ ......................7 The Vista MV control surface: ........................7 The Vista EX control surface: ........................8 What’s included in the box: ..................9 Vista MV included items: ........................... -
Page 3: Warranty Statement
24 months from date of shipment. Chroma-Q will repair, or at its option, provide an equivalent item or replace, the defective product during the stated warranty period. This warranty applies only to the repair or replacement of the product and only when the product is properly handled, installed and maintained according to Chroma-Q instructions. -
Page 4: Disclaimer
Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. -
Page 5: Safety And Warning Information
Warning! • Read the user manual before installing and operating the Vista MV and EX by Chroma-Q . For future reference, keep and use the manual. • Safety precautions given in user manual must be followed at all times and the manuals of all the devices you connect it to. - Page 6 If your local dealer is unable to help then please contact vistasupport@chroma-q.com . If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q marketing department by sending an email to marketing@chroma-q.com .
-
Page 7: Product Overview
Product overview Welcome to Vista by Chroma Q™ Launched in 2004, the Vista control system has been adopted by a large range of leading lighting designers, specifiers, rental and production companies, venues, shows and events worldwide. Continuing its legacy, the Vista 3 software has been developed to dramatically enhance the existing feature set whilst also introducing a host of major new features. -
Page 8: The Vista Ex Control Surface

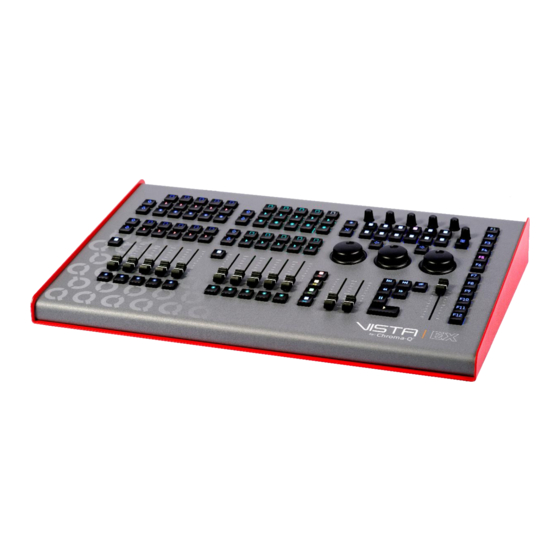

12 user keys • 4 function keys • Unlimited pages • 2 physical DMX outputs • RGB backlit keys • DMX channels determined by dongle Page 8 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... -
Page 9: What's Included In The Box
The Vista MV and EX control surfaces are supplied with: Vista MV included items: PART DESCRIPTION QUANTITY NUMBER 675-1000 CHROMA-Q VISTA MV USB CONTROL SURFACE 1915-0005 USB 2.0 Type-A to Type-B cable 675-0701 QUICK START GUIDE CQ VISTA MV Vista EX included items:... -
Page 10: Vista Usb Dmx Channel Dongles
Contact your dealer to install the dongle to the internal USB port on the control surface (EX only). If you choose this option we recommend using a qualified service person. Please contact youre nearest authorized dealer or contact vistasupport@chroma-q.com for detailed installation instructions. Dongles can also be plugged into any available USB port on the host computer. -
Page 11: Powering On & Setting Up The Vista Mv/Ex
Intel® processor i3 (i5 or better recommended) • 2GB of RAM (4GB or higher recommended) • 4GB of available hard disk space • USB 2.0 or 3.0 Page 11 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... -
Page 12: Powering And Connecting The Vista Mv/Ex
The back-panel LED on continuously indicates that the USB link between the Vista control surface and host computer is complete and ready for transmission. Once data communication occurs, the LED flashes. Page 12 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0... -
Page 13: Technical Information
DMX512 Neutrik XLR 5-pin Ground (screen) Female “D” type Data Minus Data Plus Desk Lamp Neutrik XLR 3-pin Ground Female “D” type Lamp (+ve) Page 13 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... -
Page 14: Technical Specifications
Powder coated Steel Color Black / Gray / Red Black / Gray / Red IP Rating IP20 IP20 Desk Light Socket Backlit key panel Page 14 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... -
Page 15: Vista Mv Technical Drawing & Dimensions
Vista MV technical drawing & dimensions: Page 15 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... - Page 16 Page 16 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com...
-
Page 17: Vista Ex Technical Drawing & Dimensions
Vista EX technical drawing & dimensions: Page 17 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com... - Page 18 Page 18 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0 www.VistabyChromaQ.com...
-
Page 19: Maintenance
DO NOT use solvents for cleaning the front panel. Warning: Do not allow the entry of liquids of any sort into the control surface chassis. Page 19 of 19 Author: Vista by Chroma Q Published Date: 1/2/2019 Model: 675-0701 V2.0...
