EOG

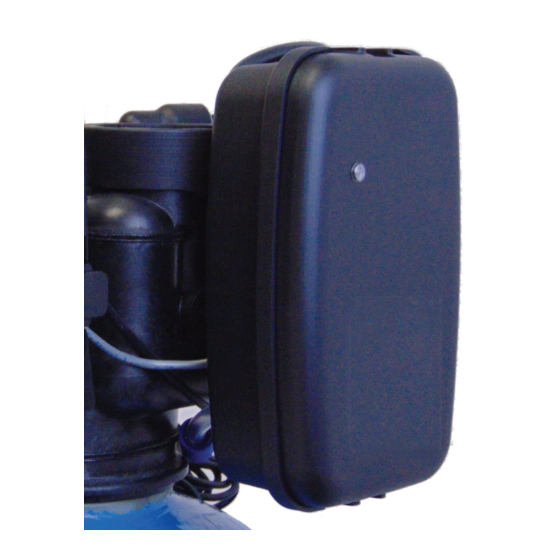

ENHANCED OXIDATION GENERATOR
INSTALLATION AND SERVICE MANUAL
Congratulations on purchasing your new Lancaster Water Filter. This unit is designed to give you many years of trouble free
service. For servicing and future inspection purposes, please file this booklet with your important documents.
In the event that you need assistance for servicing your water filter, please first contact the professional contractor who
installed the system.
PAGE 1
Advertisement
Table of Contents
Summary of Contents for Lancaster EOG
- Page 1 ENHANCED OXIDATION GENERATOR INSTALLATION AND SERVICE MANUAL Congratulations on purchasing your new Lancaster Water Filter. This unit is designed to give you many years of trouble free service. For servicing and future inspection purposes, please file this booklet with your important documents.
- Page 2 Do not use an extension cord to supply power to this equipment. * Lancaster Water Group assumes no liability for damages or injuries incurred by misuse of this product. installation and operation Your generator requires special operating conditions in order to maintain performance and reliability. Your ozone generator is designed to be operated under a negative pressure situation.
- Page 3 2. Disconnect power to the control valve. Remove the front valve cover from backplate. Release the control board bracket from backplate. 3. Route the grey control wire from the EOG into valve housing through the hole in the backplate, and through the strain relief channel above to keep wiring in place.
- Page 4 The EOG will automatically turn on and off by the control PCB defined timing schedule. The EOG control board utilizes an on- board diagnostic LED light to convey real-time performance status of the unit. The control board within the EOG has several inputs and outputs.
- Page 5 Use dry, compressed air to blow through either CD cell barbed fitting until no moisture is ejected from the opposite barbed fitting. 4. Reinstall clean, dry CD cell into EOG in reverse order, making sure all air and electrical connections are secure. Frequency of Maintenance: Every 12 months Perform the following general maintenance and CD cell cleaning procedure: 1.
- Page 6 The EOG Air Dryer promotes long-lasting, trouble-free air. The EOG Air Dryer promotes long-lasting, trouble-free Protect your EOG from the harmful effects of wet, humid air. The EOG Air Dryer promotes service for your EOG based water treatment system.
- Page 7 CD CELL REPLACEMENT *CAUTION: UNPLUG POWER SUPPLY TO EOG BEFORE PERFORMING SERVICE* 1. With the front cover removed, remove the CD cell from the ozone generator: a. Disconnect the red spade terminal connector from the CD cell connection terminal.
- Page 8 Replace CD cell. caused by the lack of proper air preparation Illustrations FIGURE 1: EOG INTERNAL LAYOUT A DIVISION OF C-B TOOL CO. 1340 MANHEIM PIKE ● LANCASTER PA 17601-3196 ● TEL:717-397-3521 ● FAX: 717-392-0266 PAGE 8 www.lancasterwatergroup.com ● E-mail: info@lancasterwatergroup.com 5/20...
