F-93
IONIZER
Thank you for purchasing the HOZAN F-93 IONIZER. With proper care and handling, this
fine instrument will provide years of trouble-free operation. Please read this entire instruc-
tion manual carefully before attempting to place this instrument in service. Please keep
this instruction manual available for reference.

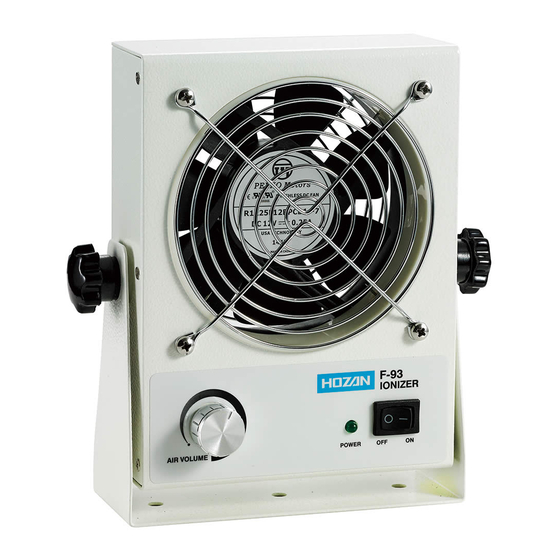

Identification of parts and contents

Grille
Angle set knob
Air
volume
control
knob
Stand
Power lamp
Rating
5.0 W
±
7 kVdc (Maximum)
See page 6
Ion balance
Up to
Up to 0.02 ppm (at 150 mm)
Power switch
±
10V (when shipping)
INSTRUCTION MANUAL
2.69 m
Noise level
Up to 60 dB (at 300 mm)
0-50° C, 0-70%RH
No freeze or condensation
Dimensions
185(W)X201.5(H)X60(D)mm
Weight
1.0 kg (without accessory)
Max. 1,000V to 100V
attenuation time is 20 secs.
Accessory
Ac power adapter
(100 to 240Vac - 12Vdc)
Back
Dc (12V)
Input jack
3
/min (at 150 mm)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-93 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOZAN F-93

  • Page 1 F-93 IONIZER Thank you for purchasing the HOZAN F-93 IONIZER. With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruc- tion manual carefully before attempting to place this instrument in service. Please keep this instruction manual available for reference.
  • Page 2 In case of deterioration of unit performance, the electrode must be replaced. ● Ask your HOZAN dealer. 3. Do not handle the power cord roughly. Do not carry the unit by cable or yank it to disconnect from the wall outlet.
  • Page 3 Operation 1 Place on a stable horizontal surface. 2 Adjust the angle so that the outlet port aim the objective to be discharged. Adjust the distance against the object referring “Efficiency of neutralization” on page 6. 3 Make sure that the power switch of the main unit is in the OFF position. Connect the accessory ac power adapter to the dc jack of the main unit, and then insert the other end of the ac power adapter into a properly rated power outlet.
  • Page 4 Dairy care  Warning Care the electrodes taking 10 minutes or more after turning the power switch off, since they keep high voltage for a while. Care of the electrodes Charge dissipation performance could reduce when the electrodes are covered with oil, soot or dust.
  • Page 5 Securely insert with pliers. 7 to 8 mm 5 Return the grille. Replacement parts F-93-1 Electrodes (4 pcs/pack) Relational product Z-201 STATIC LOCATOR A checker for detecting generation of static electricity. Certainty of neutralization is recognized measuring the voltage of charged electricity by this.
  • Page 6 Products which bear the “ “ mark are products to which the standard values (see table below) apply. The “ESD Standard” listed on each of the product pages denote the HOZAN standard for the product. ESD-safe item requirements (Excerpted from RCJS-5-1) Item-specific requirements 【...
