- Page 1 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16...

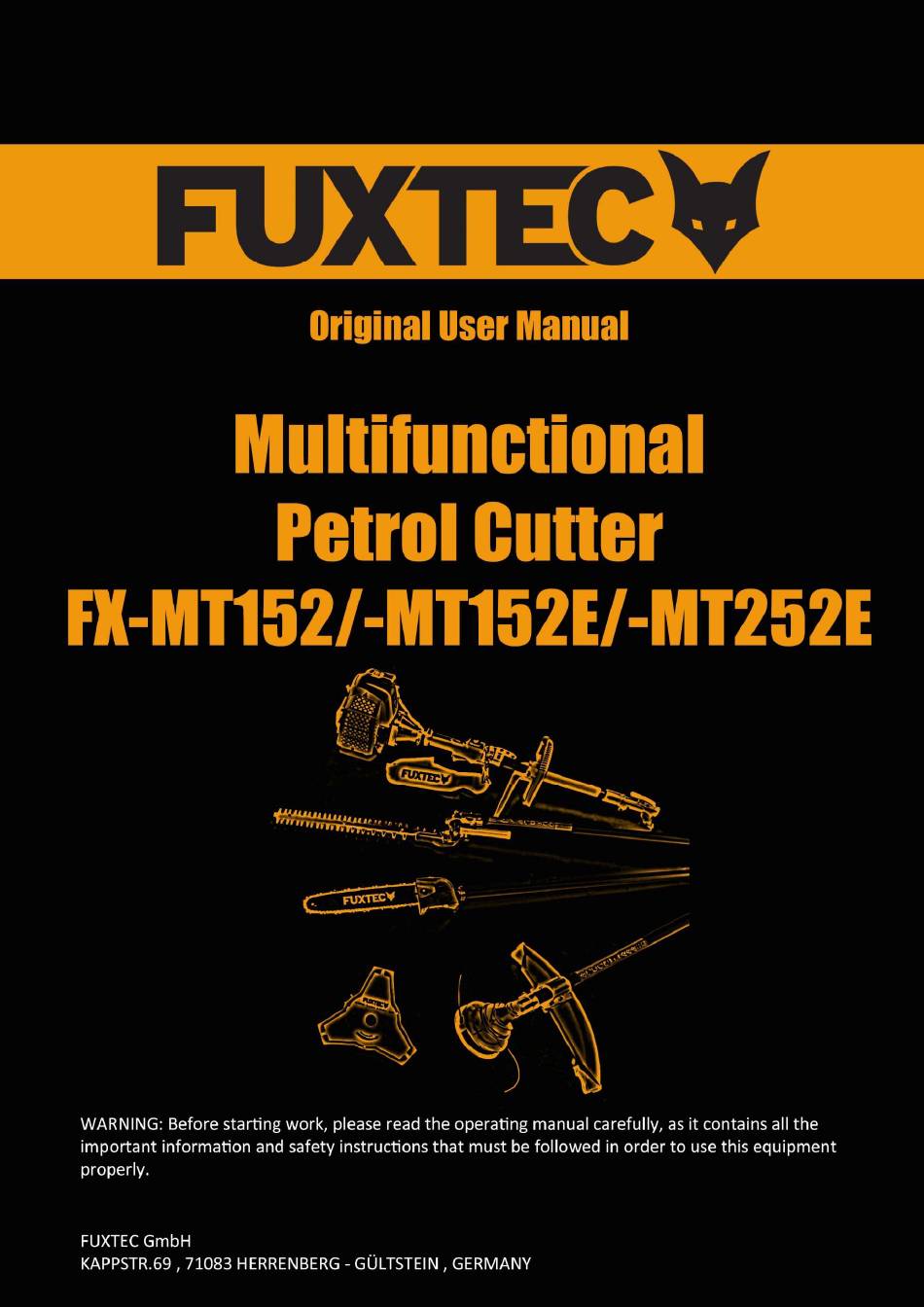

- Page 2 ORIGINAL USER MANUAL Multifunctional petrol cutter FX-MT152/-MT152E/-MT252E Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come. WARNING: To reduce the risk of injury, the user must read and understand this manual before operating the device.
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 TABLE OF CONTENTS TECHNICAL DATA......................5 SYMBOLS AND SAFETY INSTRUCTIONS ON THE DEVICE AND ATTACHMENTS . 7 INTENDED USE AND GENERAL SAFETY INSTRUCTIONS ........11 NOTES ON ACCESSORIES ..................15 ATTACHING THE SHOULDER STRAP ..............16 COMPONENT OVERVIEW .................. - Page 4 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 INFO: OPTIONAL ACCESSORIES (ADJUSTABLE POLE SAW) ......49 CUSTOMER SERVICE ....................49 WARRANTY ........................ 50 DISPOSAL NOTE ......................50 EC DECLARATION OF CONFORMITY ............... 51 We are continually striving to improve our products. Therefore technical data and...
-
Page 5: Technical Data
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Technical Data Type FX-MT152/-MT152E/-MT252 Engine air-cooled; 2-stroke Cubic capacity 52cm Maximum output power (kW) 2.2kW / 7,500min (in accordance with ISO 8893) The maximum speed of the engine 9,000 min Idle speed of the engine... - Page 6 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 length/ type Saw chain/chain pitch TT-9D-3B / Pitch 3/8" Pole saw max. cutting length 290mm Oil tank capacity Chain lubrication 150ml...
-
Page 7: Symbols And Safety Instructions On The Device And Attachments
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Symbols and safety instructions on the device and attachments Warnings on the primary device Multifunction Cutter WARNING! IMPROPER OPERATION MAY LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS USER MANUAL BEFORE USE. ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND MOUTH PROTECTION. - Page 8 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 ALWAYS KEEP 15 METERS AWAY FROM DISTANCE! MAXIMUM NUMBER OF ROTATION OF THE SPINDLE (GRASS TRIMMER): 6600 min MAXIMUM ROTATION SPEED OF THE BLADE (MOTOR SCYTHE):7100 min THE GUARANTEED NOISE LEVEL COMPLIES WITH THE LEGAL NOISE GUIDELINES.
- Page 9 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Additional warnings for the pole saw attachment ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND HEAD PROTECTION! ALWAYS WEAR PROTECTIVE CLOTHING! ALWAYS KEEP A MINIMUM DISTANCE OF 10M BETWEEN THE DEVICE AND HIGH VOLTAGE LINES! ALWAYS TURN THE DEVICE OFF AND MAKE SURE THE CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING OR ADJUSTING IT.
- Page 10 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 ● Wear gloves and keep your hands warm. ● Take regular breaks. All the above precautions cannot eliminate the risk of white finger disease or carpal tunnel syndrome. Long-term and regular users are, therefore, advised to closely monitor the condition of their hands and fingers.
-
Page 11: Intended Use And General Safety Instructions
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Intended use and general safety instructions This device may only be used with the scythe attachment for mowing or trimming grass, weeds, and undergrowth. The hedge trimmer attachment is to be used exclusively for trimming hedges, the branch saw attachment is to be used solely for delimbing and trimming tree crowns. - Page 12 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 ● Children must not have access to the device. Spectators should stand at a safe distance from the working area, at least 15 meters. ● Keep hands and feet away from the nylon cutting head or metal blade during operation.
- Page 13 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Use only specially designed containers. Never remove the filler cap or add gasoline while the engine is running or hot. Allow the engine and exhaust parts to cool down before refilling. Do not smoke. Only refuel outdoors.
- Page 14 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 f) Always ensure that all handles and safety devices are fitted when using the hedge trimmer. Never attempt to use an incomplete hedge trimmer or one with an unauthorized modification. g) Always use both hands when using the hedge trimmer attachment.
-
Page 15: Notes On Accessories
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Notes on accessories ● Make sure that your product is only equipped with original accessories. Only use original parts that are specified by the manufacturer. The use of any other attachments or accessories may cause injury to the user and damage to the device. -
Page 16: Attaching The Shoulder Strap
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 blade kickback. Attaching the shoulder strap Adjusting the carrying strap Shoulder Strap Put your shoulder strap over one shoulder Adjust the strap length (with the attachment attached) so that the spring hook is at the... -
Page 17: Component Overview
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Component overview 1. Exhaust pipe 2. Pullstarter 3. Gas cap 4. Air filter 5. Spark plug 6. Throttle 7. Throttle lock* 8. Start/stop switch 9. All-round handle 10. Connector 11. Branch saw attachment 12. Chainguard... -
Page 18: Mounting The All-Round Handle/Attachments
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Mounting the all-round handle/attachments Attaching the handle The handle must be fitted before use. Follow the illustrations below for correct installation. Mounting the wrap-around handle There are four holes for mounting the wrap-around handle ... -
Page 19: Mounting The Motor Scythe/Grass Trimmer
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Mounting the motor scythe/grass trimmer A metal blade with 3 teeth is delivered with the device. It is used for cutting bushes and weeds. The use of the saw blade with this device is prohibited. - Page 20 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Installation of the protective shield Install the protective shield on the driveshaft tube against the gearbox housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation.
- Page 21 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Mounting the grass trimmer Step one: Insert the key (1) into the hole in the gearhead so that the gear shaft is locked. Unscrew and remove the nut. As this is a safety nut, please make sure that there is a left-hand...
-
Page 22: Using The Hedge Trimmer Attachment
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Using the hedge trimmer attachment Transport of the hedge trimmer Warning! Never carry or transport your device with the blades running to avoid the risk of injury. Always carry it in a horizontal position only. Grip the bar so that the device is horizontally balanced. - Page 23 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 stationary. 1 Cutting blades 2 Blade protection 3 Blade gear 4 Lockout 5 Angle drive 6 Setting lever 7 Drive axle tube Explanation 1. Cutting blades Steel blades for cutting hedges and undergrowth 2. Blade protection Protects the cutting bar when the tool is not in use 3.
- Page 24 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 The working posture and method are exactly the same as for the motor scythe. The cutting bar is moved back and forth, just above the ground. Adjusting the cutting angle of the hedge trimmer attachment Adjust the cutting angle: Release the lock (1), simultaneously pull the two release levers (2) and turn the blade position to the desired angle via the adjusting lever (3).
-
Page 25: Using The Branch Saw Attachment
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Using the branch saw attachment Transport of the tool Warning! Always carry it in a horizontal position only. Grip the bar so that the device is horizontally balanced. Keep the hot muffler away from your body and the cutting attachment behind you. - Page 26 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Before starting Remove the guard from the chain and inspect the chainsaw for proper operating conditions (see maintenance and sharpening of the saw-chain on page 33). Before starting your engine, always check that it is in good condition, especially the throttle, the throttle lock, the stop button, and the tool attachment.
- Page 27 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 During operation Holding and controlling the tool Always hold the device by the handles with both hands during operation. Close your fingers and thumbs around the handles. Place your left hand on the front handle and your right hand on the rear handle on the throttle.
- Page 28 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 stones, fences, nails, etc. These objects could be thrown away and injure the user or bystanders or damage the saw chain. Before cutting, clear the work area of unwanted branches and undergrowth. Then create a retreat area, away from the place where cut branches may fall, and remove all obstacles there.
- Page 29 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Mounting the guide bar and saw chain Warning! Adjust the guide bar and chain only when the engine is not running. 1 Loosen the nut and remove the sprocket cover. 2 Turn the tensioning screw (1) clockwise until the tensioning nut (2) stops at the left.
- Page 30 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Checking the chain tension Check the chain tension. Switch off the engine. Wear work gloves to protect your hands. The chain must lie close to the bottom of the bar, and at the same time, it must be possible to move the chain along the bar with your hand.
- Page 31 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Check the oil level regularly during work. Never let it run out! Clean the tank cap and its surroundings so that no dirt falls into the tank. Place the device so that the tank cap is facing upwards.
- Page 32 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 The axle should always be held at an angle of no more than 60°! The most comfortable working position is with the tool at a 60° angle. Still, smaller angles are also possible, depending on the situation.
- Page 33 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Kickback Kickback may occur if the running saw-chain hits or is jammed against a solid object at the upper quarter of the guide bar. The cutting force of the chain exerts a rotational force on the saw in the opposite direction to the chain movement.
- Page 34 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Cold chain: Tension is correct when the chain is close to the bottom of the bar and can still be pulled along the bar by hand. Retighten if necessary (see section "Tensioning the saw-chain"). The chain at operating temperature: The chain expands and begins to sag.
- Page 35 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 little pressure. Do not work with a dull or damaged saw-chain. It increases physical strain, increases vibrations, and leads to unsatisfactory results and higher wear and tear: Clean the chain. Check it for broken links and damaged rivets.
- Page 36 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 The angle must also be maintained for all knives. If the angle is uneven, the chain will run irregularly, wear out quickly, and break prematurely. As these requirements can only be met with sufficient and regular practice: ...
-
Page 37: Using The 1M Extension For Mt152E
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Using the 1m extension for MT152E The extension is mounted in the same way as the other attachments: 1). Place the drive axle against the main shaft so that the hole of the axle is aligned with the locking pin of the connecting piece. -
Page 38: Using The Pivoting Branch Saw Attachment On The Mt252
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Using the pivoting branch saw attachment on the MT252 IMPORTANT: Do not mount or adjust the attachment unless the device is turned off. The mounting of the swiveling branch saw attachment is the same as for the other accessories: 1). -
Page 39: Starting/Stopping The Device
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Starting/stopping the device Cold start Place the device on a firm and flat surface. Slide the engine stop switch to '' I '' in the direction of the engine. Move the choke lever upwards to "COLD START."... -
Page 40: Refueling The Engine
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 chapters. NOTE: Always pull the starter cord straight out. Pulling the starter at an angle will cause the rope to rub against the eyelet. Pulling the starter at an angle can cause the starter cable to fray or break. Always hold the starter handle firmly when the rope is pulled back. - Page 41 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Two-stroke engine oil Two-stroke engine oil Gasoline (40:1) Gasoline (40:1) 1 liter 0.025 liters 5 liters 0.125 liters 2 liters 0.050 liters 10 liters 0.250 liters WARNING: Failure to lubricate the device eliminates the liability of the device manufacturer.
-
Page 42: Trimming Techniques
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Trimming techniques CAUTION IF YOU are NOT familiar with the trimming techniques, practice with the DEVICE in the "STOP" position (turned off). ALWAYS TRIM OR CUT AT HIGH ENGINE SPEEDS. Do not run the device slowly at the start or in trim mode. - Page 43 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 weed wear will occur. TRIM MORE ACCURATELY Swing the trimmer's nylon cutting head horizontally from side to side. Do not tilt the nylon cutting head while working. For correct cutting height, trim in a test area beforehand. Keep nylon cutting head at the same level for even depth of cut.
-
Page 44: Replacing Nylon Thread
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Replacing Nylon Thread 1. Switch off the engine 2. Place the trimmer on the ground so that the drive axle with the spool is exposed and remove the nylon head 3. Open the nylon head by pressing the release 4. -
Page 45: Maintenance Plan
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Maintenance plan Regular checks and adjustments must be made to ensure that the gasoline engine maintains its performance. Periodic maintenance also provides a long service life. See the following table for the regular maintenance cycle. - Page 46 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 WARNING a. Increase maintenance intervals if working in dusty environments. b. All maintenance work - except for that listed in the operating manual - must be carried out at regular intervals. Work must be carried out by qualified maintenance personnel Cleaning the air filter CAUTION: Never run the engine without the air filter.
-
Page 47: Storage Of The Device
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 3. Visually check the spark plug for damage and electrode burn-off, Remove the carbon deposits 0.6~0.7m 0.6~0.7m 4. Check the gap with a feeler gauge and bend the electrode to the correct distance of 0.6 to 0.7mm 5. -
Page 48: Troubleshooting
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 9. Store the device in a cool, dry place away from any ignition source such as an oil burner, water heater, etc. TRANSPORT PROTECTION Make sure that the device is well-secured during transport to avoid fuel loss, damage, or injury. -
Page 49: Info: Optional Accessories (Adjustable Pole Saw)
Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16 Choke is in "COLD START" position, an Open choke, replace exhaust system The engine does exhaust system is blocked no air supply, Check or replace ignition coil, adjust not reach the moving elements worn, ignition spark... -
Page 50: Warranty
This will ensure that the safety of the device is maintained. If you do not have the addresses of authorized service centers, please contact the sales office Please contact the manufacturer FUXTEC GmbH directly at where you purchased the device. -
Page 51: Ec Declaration Of Conformity
EN ISO 11680-1 EN ISO 10517; EN ISO 14982 Manufacturer signature/date: Tim Gumprecht, 25.05.2020 the name and address of the Tim Gumprecht person authorized to compile the FUXTEC GMBH - KAPPSTRAßE 69, 71083 HERRENBERG, technical documentation GERMANY established within the Community... - Page 52 Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16...
