Summary of Contents for Lumel NP15B

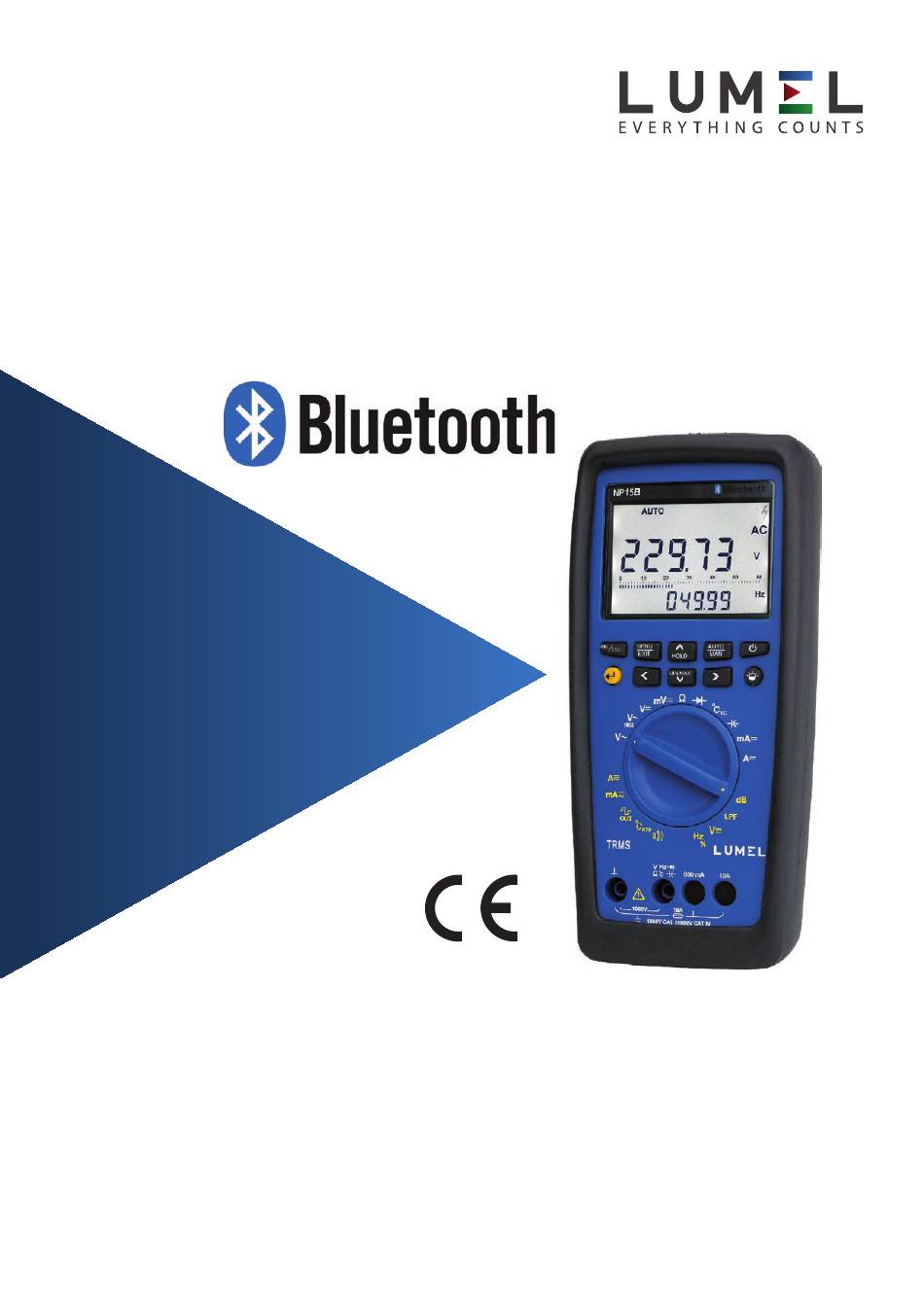

- Page 1 TRMS DIGITAL MULTIMETER NP15B Bluetooth Installation Manual Bluetooth Installation and Connection with Logger...
- Page 2 Right click on Bluetooth icon in icon menu. Fig. a : Bluetooth Menu b. Click on Add a Bluetooth Device. It will start to search the device. After searching gets completed, Select the LUMEL Bluetooth Meter and click on NEXT. NP15B Fig. b: Add Bluetooth Device Wizard...
- Page 3 c. After clicking NEXT, we have to enter pass key for device being get paired. The pass key is “0000”. Fig. c: Passkey Enter d. After pass key has been entered, click on NEXT button. Now it will install driver and generate the COM port as show in fig.
- Page 4 Fig. e: Device Manager Fig. f: Incoming com port disabled f. After com port disabled, open Lumel DataLogger Software. Lumel Datalogger Fig. g: DataLogger Software...
- Page 5 Click on Add a Device. It will start the search of Bluetooth device. Select the appropriate device from the list. NP15B Fig. i: Device Search List c. Select the Device and Click on NEXT. It will ask for select a pairing option.
- Page 6 NP15B Fig. k: Pairing Code e. After clicking on NEXT, it will add the device. NP15B Fig. l: Device Added Successfully f. Click on CLOSE. Now again click on Bluetooth icon and then click on “Open Setting” (Refer fig.h). Click on COM PORT. Select the Incoming Port and the Click on “REMOVE”.
- Page 7 After Removing Incoming port, you will only see outgoing port. Now open the Lumel Datalogger Software, when you click on scan to find the meter. Fig. n: Lumel Datalogger Software 3. Window 8 a. Right click on Bluetooth icon & click on Add a bluetooth device or open PC and devices and select Bluetooth in it.
- Page 8 NP15B`SerialPort` Fig. q: COM PORT setup d. After removing Incoming Port, click OK and close the Bluetooth setting. Now open the Lumel DataLogger Software. Fig. r: DataLogger Software 4. Window 10 a. Right click on Bluetooth icon & click on Add a bluetooth device or open Devices and...
- Page 9 Bluetooth icon and select OPEN SETTING (Refer fig. s). Now we have to remove incoming port under COM PORT option as shown in fig. u NP15B NP15B`SerialPort` Fig. u: Remove Incoming port d. After removing Incoming Port, click OK and close the Bluetooth setting. Now open the Lumel DataLogger Software.
- Page 10 Lumel Datalogger Lumel Datalogger Fig. v: Lumel Datalogger Software LUMEL S.A. ul. Sulechowska 1, 65-022 Zielona Góra, POLAND tel.: +48 68 45 75 100, fax +48 68 45 75 508 www.lumel.com.pl Export department: tel.: (+48 68) 45 75 139, 45 75 233, 45 75 321, 45 75 386 fax.: (+48 68) 32 54 091...
