Summary of Contents for Extreme Max 5001.5047

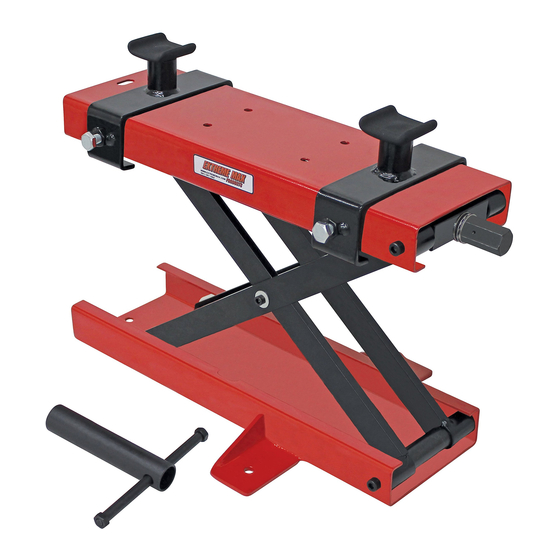

- Page 1 NARROW 1100 IB. MOTORCYLCE SCISSORS JACK Part # 5001.5047...
- Page 2 WARNING! - Risk of personal injury or property damage. - Jack capacity is 1100 lbs. Do not exceed jack capacity. - Pinch hazard, keep clear of moving parts. - Risk of load loss. Secure and stabilize load. - Use lift only on solid, level surface. - Inspect lift before each use, do not use lift if any components are damaged.
- Page 3 Parts List: Name Qty. (A) Platform (B) M12x50 Bolt (C) M12 Washer (D) Saddle (E) Adjustable Plate (F) M10x25 Bolt (G) Handle (H) Lifting Screw (I) Inner Fixing Spindle (J) Spring Blockring (K) Base Plate (L) Outer Frame Roller (M) M20 Washer (N) Outer Lift Arm (O) Connecting Pin (P) Middle Bushing...
- Page 4 Customer Service Number: 651-357-1862 service@extrememax.com www.extrememax.com 2461ex1015...
