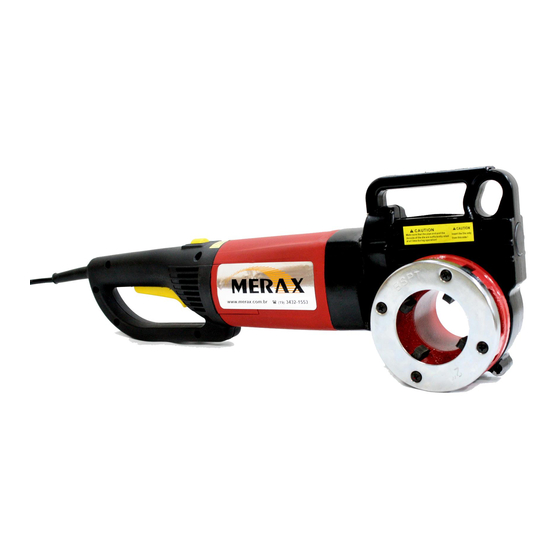

Summary of Contents for Merax MX-02 C
- Page 2 Do not operate machine near inflammable fluids or gas. 3. Merax Portable Pipe Threader must be stored in a dry and clean place. 4. The operator must not fix the machine,or else the guarantee will be void (except carbon brush change).
- Page 3 2. Lock the support bracket securely, making the spindle parallel to the pipe. 3. Fit the pipe into die head and lead the support bracket spindle into the oval hole on the top of Merax Portable Pipe Threader. 4. Move the switch (1) to the work position (arrow forward).
- Page 4 (arrow backward), press trigger and auxiliary button again to reset machine and remove pipe. 8. PIPE SHEAR: Install the pipe shear assembly on your Merax Portable Pipe Threader. Confirm the length of the pipe to be sheared, install pipe shear adapter...
- Page 5 Pipe Shear Pipe shear adapter WARNING! 1. The support bracket MUST BE USED during threading. The pipe must very well fastened during operations to avoid damage to the machine and the operator. 2. Install the die head adapter for threading ½”-to-1 ¼” pipes. ½”-1"...
- Page 6 Problem Possible cause Probable Solution Die head cannot be Lock position is wrong Set lock position. installed. and this is blocking die head. Pipe is not Fasten pipe adequately fastened; again. Thread/screw of Change Pipe slides during the support bracket is support bracket.
- Page 7 WARRANTY MERAX Portable Pipe Threaders have a 6-month guarantee in Brazil after the date of issue of invoice or delivery of the product to the final consumer. This warranty applies to manufacturing, materials, parts and workmanship defects, when adequately proven.
