BC Acoustique EX PHONO-3X Quick Installation Manual

Introduc on

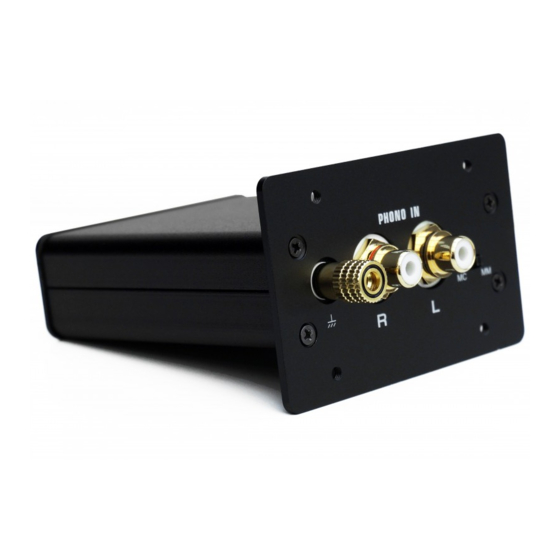

The op onal EX PHONO-3X module is a dedicated
pre-amplifier that will allow you to connect your turntable
to your BC components. The EX PHONO is compa ble with
MM (Moving Magnet) and MC (Moving Coil) cartridges.
The EX PHONO-3X module is dedicated to be used with
BC Acous que EX products equipped with an « OPTIONAL
BOARD » slot. The board is compa ble with EX312 - EX322 -
EX332 - EX362 - EX888 - EX322.1 - EX888.1 products.
INSIDE THE PACKAGING
1x EX PHONO-3X card with its 4 Phillips screws
①
1x Large metal plate
②
-> Fit for amplifiers EX322, EX888 specs
1x Small metal plate
③
-> Fit for amplifiers EX332D specs
1x Stereo RCA cable
④
1x 6 pin MOLEX cable - Short / POWER
⑤
-> For EX332D type amplifiers
1x 6 pin MOLEX cable - Long / POWER
⑥
-> For EX322 type amplifiers
1x 3 pin cable / LINE OUT
⑦
1x This manual
⑦
Tools needed: Philips 2 screwdriver
QUICK INSTALLATION GUIDE
Phono card MM & MC
Important safety instruc ons
WARNING !
Before star ng the installa on of the EX PHONO-3X card,
make sure that your amplifier EX Series is powered off AND
disconnected from the wall power cord.
Warning, never operate inside the product if the power
cord is connected. When opened, some internal parts of
the product might cause sever injuries as they are working
at high voltage.
All other internal opera ons apart the one described in this
manual about op onal module installa on, must be done
by a qualified technician.
We invite you to contact our accredited service sta ons if
your product has been chocked, exposed to moisture or
humidity or if any parts has been introduce inside the
product. Internal fuses replacement is also an opera on
which should be done by accredited technician.
IMPORTANT !
PLEASE FOLLOW THESE STEPS IN THE ORDER INDICATED
