Secure Caregiver CAS-FAM Instructions

FALL ALARM MONITOR PARTS AND FUNCTION
POWER (AAA Batteries or Optional AC/DC Adapter)
Remove the battery Open hinged
compartment cover battery cover
screw and slide in
direction of arrow
to open the battery
cover
INSTALLATION
Unlock (using a screwdriver or
coin) and slide the side cover
downward to open and install
the sensor mat/pad input plug
Personal Safety Corporation • Hiawatha, Iowa 52233 • 800.373.2873 • www.SecureSafetySolutions.com

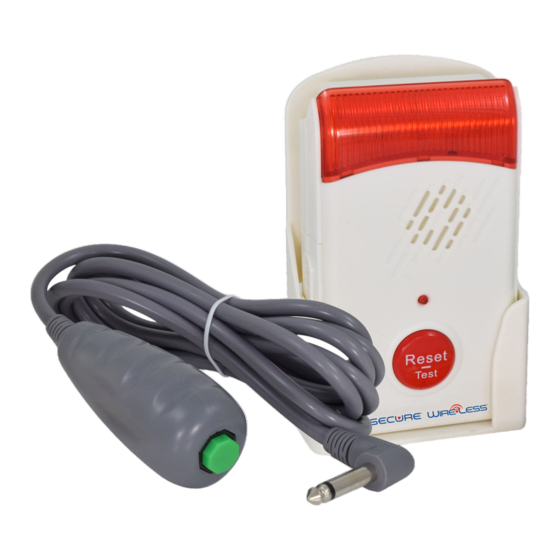

FALL ALARM
MONITOR &
PAGER ALERT
w/Universal Nurse Call Button
Model #: CAS-FAM • Made in PRC
Insert 3 AAA Or use optional
batteries AC/DC adaptor
into battery
compartment noting
correct polarity and
close battery cover
1. Battery Compartment
2. Battery Compartment Hinged Cover
3. New RF Code Button
4. Power On/Off Switch
5. Wireless Signal Transmission
On/Off Switch
6. Alert Sound Selector
7. Alert Light On/Off Switch
8. Alert Volume Selector
9. Mode Switch (Mat = floor mat
sensor; Pad = bed/chair sensor
pad; +3S = bed/chair pad with
3 second alert delay)
10. Sensor Mat/Pad Cord Input Jack
11. Locking Side Cover
12. Side Cover Lock (use a
screwdriver or coin to unlock/lock)
13. Flashing Alert Light
14. Alert Sound Speaker
15. LED reset/test indicator.
16. Alert Sound Reset/Test Button
17. External Power Adapter Jack
18. Universal Nurse Call Button
Input Jack
