American Safe Room

ASR-200-AV-NBC Safe Cell

Nuclear, Biological, and Chemical

Overpressure Filter System

Installation and Operation Manual

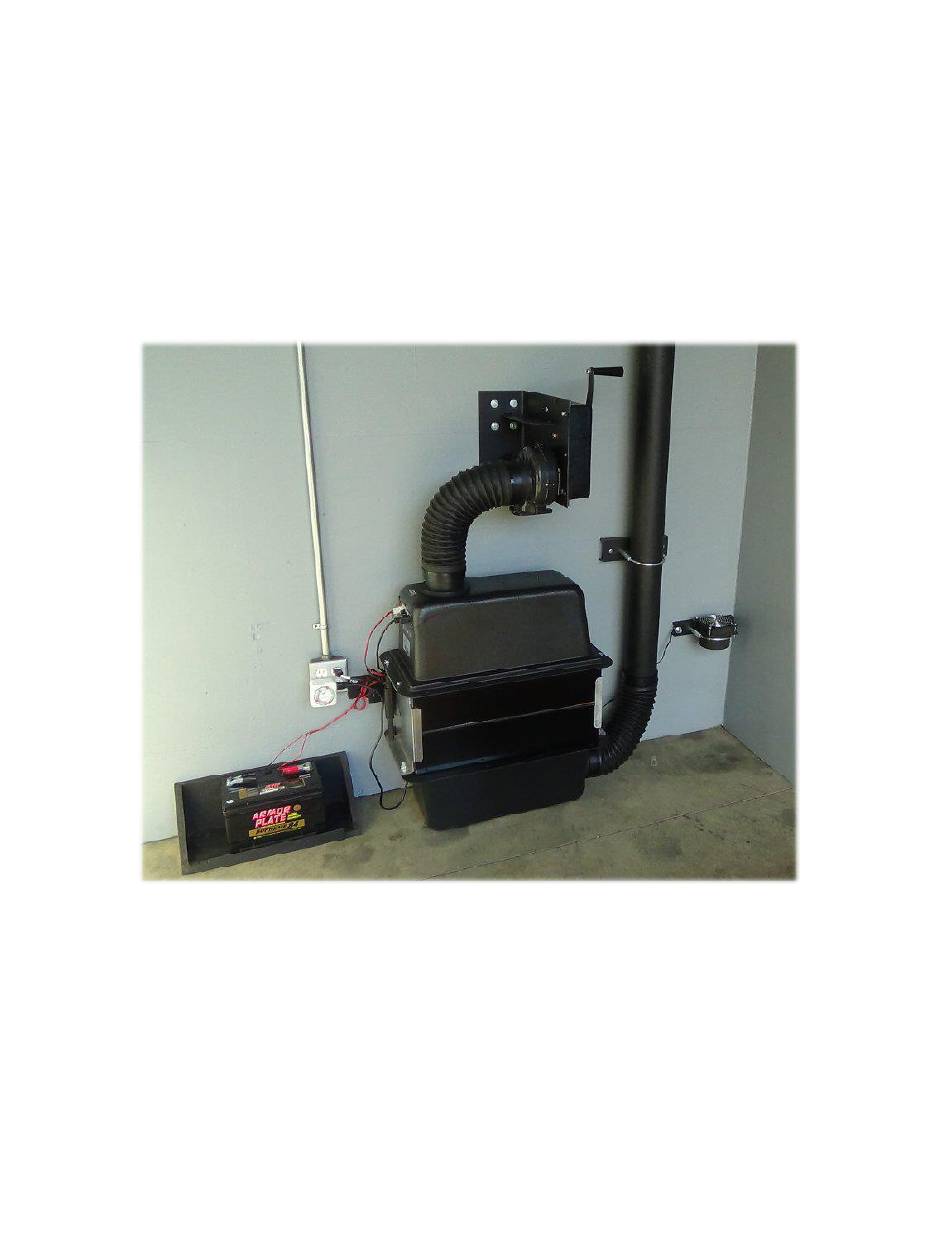

ASR-200-AV-NBC Safe Cell shown with optional ceiling connection kit, backup

hand crank, automatic ventilation blower, and user supplied

deep cycle battery.

Drawing number: TM-ASR-200-AV-NBC

Revision C - April 27, 2016

Table of Contents

Need help?

Do you have a question about the ASR-200-AV-NBC Safe Cell and is the answer not in the manual?

Questions and answers

Summary of Contents for American Safe Room ASR-200-AV-NBC Safe Cell

Page 1 ASR-200-AV-NBC Safe Cell Nuclear, Biological, and Chemical Overpressure Filter System Installation and Operation Manual ASR-200-AV-NBC Safe Cell shown with optional ceiling connection kit, backup hand crank, automatic ventilation blower, and user supplied deep cycle battery. Drawing number: TM-ASR-200-AV-NBC Revision C - April 27, 2016...
Page 2: Table Of Contents
Table of Contents Contact information ..................A Description ....................B Assembling the Safe Cell ................C Wall mounting ....................D Installation ....................E Operation ..................... F How the Safe Cell works ................G Testing the system ..................H Changing the filters ..................I Optional hardware ..................
Page 3: Contact Information
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Contact information Address: American Safe Room 868 Murdock Drive Oakland, OR 97462 Telephone: 541-459-1806 FAX: 503-212-6695 E-mail: sales@AmericanSafeRoom.com Websites: www.AmericanBombShelter.com www.AmericanSafeRoom.com www.AmericanBlastDoor.com www.AmericanBlastValve.com Section Page 3...
Page 4: Description
Revision C - April 27, 2016 Description The ASR-200-AV-NBC Safe Cell is a portable, positive pressure, emergency air filtration system is designed to offer protection in the event of a nuclear, biological, or chemical event when installed in a protected space (a shelter or room). When properly installed, this system is capable of giving adequate supply of filtered air for up to 24 occupants, according to ASHRAE standard 62* and 34 occupants according to Israeli standards.
Page 5: Assembling The Safe Cell
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Assembling the Safe Cell The top and bottom end bells are shipped separate from the filter elements. The top end bell has the blower and power supply.
Page 6: Wall Mounting
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Wall mounting The mounting location should be near an electrical outlet and within reach of the air inlet (the wall mount flange or the intake blast valve). If the air intake hose will not reach the bottom air intake port on the Safe Cell, 4 inch, schedule 40 ABS pipe and fittings should be used to connect the hose to the air inlet.
Page 7: Installation
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Installation Mount the wall flange over the air intake hole in the wall or ceiling. Remove the red plastic shipping caps from the intake and output ports. The hand pump is only installed when it is needed.
Page 8: Operation
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Operation — using the Safe Cell The Safe Cell is an emergency air filtration device. The granular carbon in the carbon adsorber will adsorb most any gas present in the atmosphere - including water vapor. To prevent this from happening, the red shipping caps should be left on the Safe Cell when not in use.
Page 9 ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Operation — illustrations Shipping cap (red plastic) Port on top of the top end bell (outflow) and on the end of the DC power cord socket bottom end bell (intake)
Page 10: How The Safe Cell Works
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 How the Safe Cell works The Safe Cell draws unfiltered air from outside and pumps it into the protected space as filtered air causing a slight difference in pressure between the protected space and the outside. This increase in pressure inside the protected space is known as overpressure.
Page 11: Testing The System
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Testing the system General discussion The Safe Cell is only one component of a space protected from airborne pathogens. Others include proper sealing of the space and the release of overpressure in a metered amount. Your protected space should be envisioned as a pressurized vessel with a calibrated release valve.
Page 12: Changing The Filters
Section Replacement filters should be obtained from American Safe Room. Alternate sourcing of filters is not recommended and removes American Safe Room from liability resulting from inadequate performance by third-party filters. Page 12...
Page 13: Optional Hardware
Backup hand operated air pumps The ASR-200-AV-NBC Safe Cell is equipped with an internal automatic switching power supply. This system automatically switches the Safe Cell to the user supplied 12 volt automotive battery in case of failure of the main AC power.
Page 14: Component Dimensions
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Component dimensions All dimensions are in inches. Figure K-2 Safe Cell top view 16” to wall 15” 26.88” 31.25” Figure K-3 Figure K-4 Safe Cell front view...
Page 15: Specifications - General
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Specifications — general ASR-200-AV-NBC Safe Cell Envelope size: 15 inches (380 mm) x 26.88 inches (683 mm) x 31.25 inches high (794 mm) Weight: 60 pounds (27 kg) with all of the filters installed...
Page 16: Specifications - Filters
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Specifications — filters Pre-filters Two piece polyester pre-filter that protects the HEPA from being loaded up with larger airborne particles. The first one is for large particulates, the second is for finer particulates.
Page 17: Specifications - Standards
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Specifications — standards DOP Test This has been the industry standard test method for many years. It is conducted using a forward light scattering photometer. The HEPA is challenged with 0.3 micrometer particles of dioctyl- phthalate (DOP).
Page 18: Specifications - Occupant Ratings
ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Specifications — occupant ratings The ASR-200-AV-NBC produces 120 cubic feet per minute (CFM) of filtered air supply sufficient for 24 adults. This 5.0 CFM per occupant is based on the first ASHRAE standard that is excerpted below.
Page 19 ASR-200-AV-NBC Safe Cell Installation and Operation Manual Revision C - April 27, 2016 Concrete Wedge Anchor -Technical Information The ThunderStud® wedge anchor consists of two pieces, permanently pre-assembled into a single unit. The carbon steel rod is threaded for a portion of its length. The extreme end of the threaded portion is rounded to protect the threads from damage while the anchor is being driven into the hole drilled in the concrete.
