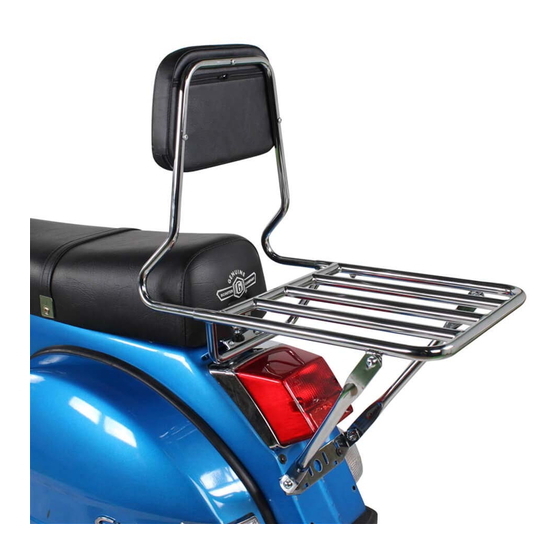

Summary of Contents for ScooterWorks Prima BBQ Rear Rack

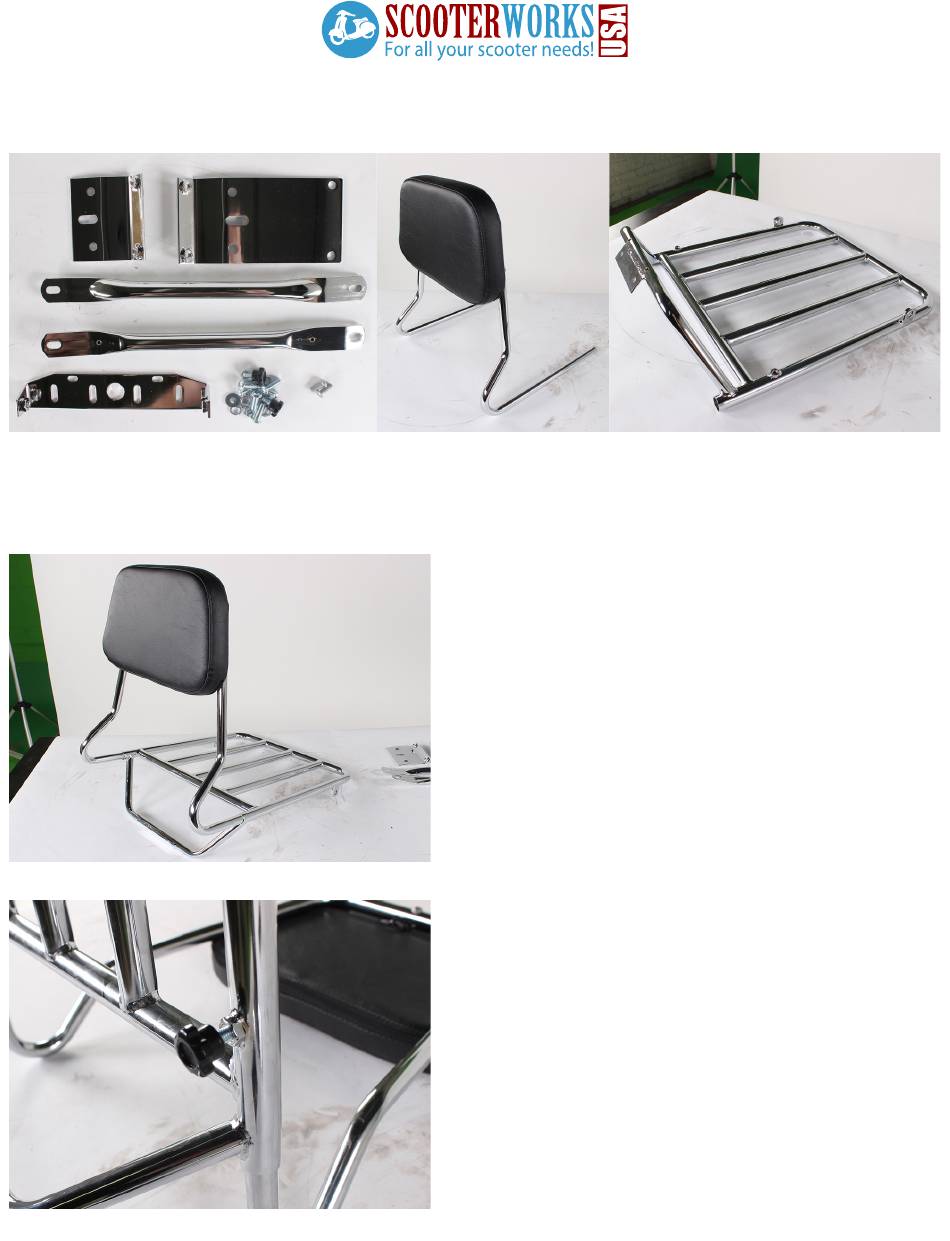

- Page 1 Instructions for Prima BBQ Rear Rack SKU# 0200-0153 4T Stella Parts: Backrest, Rack Platform, Hardware - Shorter bracket is for 4T Stellas - Longer bracket is for 2T Stella or Vespa Step 1: Slide Backrest into rack platform. Step 2:...
- Page 2 Step 3: Attach mounting bracket (Detail shots below) Step 4: Attach underseat mounting bracket Step 5: Remove Underseat and Lower hardware...
- Page 3 Step 6: Attach underseat hardware Step 7: Attach hardware on lower bracket Step 7: Tighten all hardware Step 8: Enjoy your new Prima BBQ Rear Rack...
- Page 4 2T Stella or Vespa Follow Steps 1-3 From Above Step 4: Attach underseat mounting bracket Step 5: Remove Underseat and Tail Light hardware Step 6: Attach underseat hardware...
- Page 5 Step 7: Feed Electrical through tail light mount Step 8: Attach tail light mount Step 9: Attach tail light and tighten all hardware Step 10: Enjoy your new Prima BBQ Rear Rack and contact us with any inquiries.
