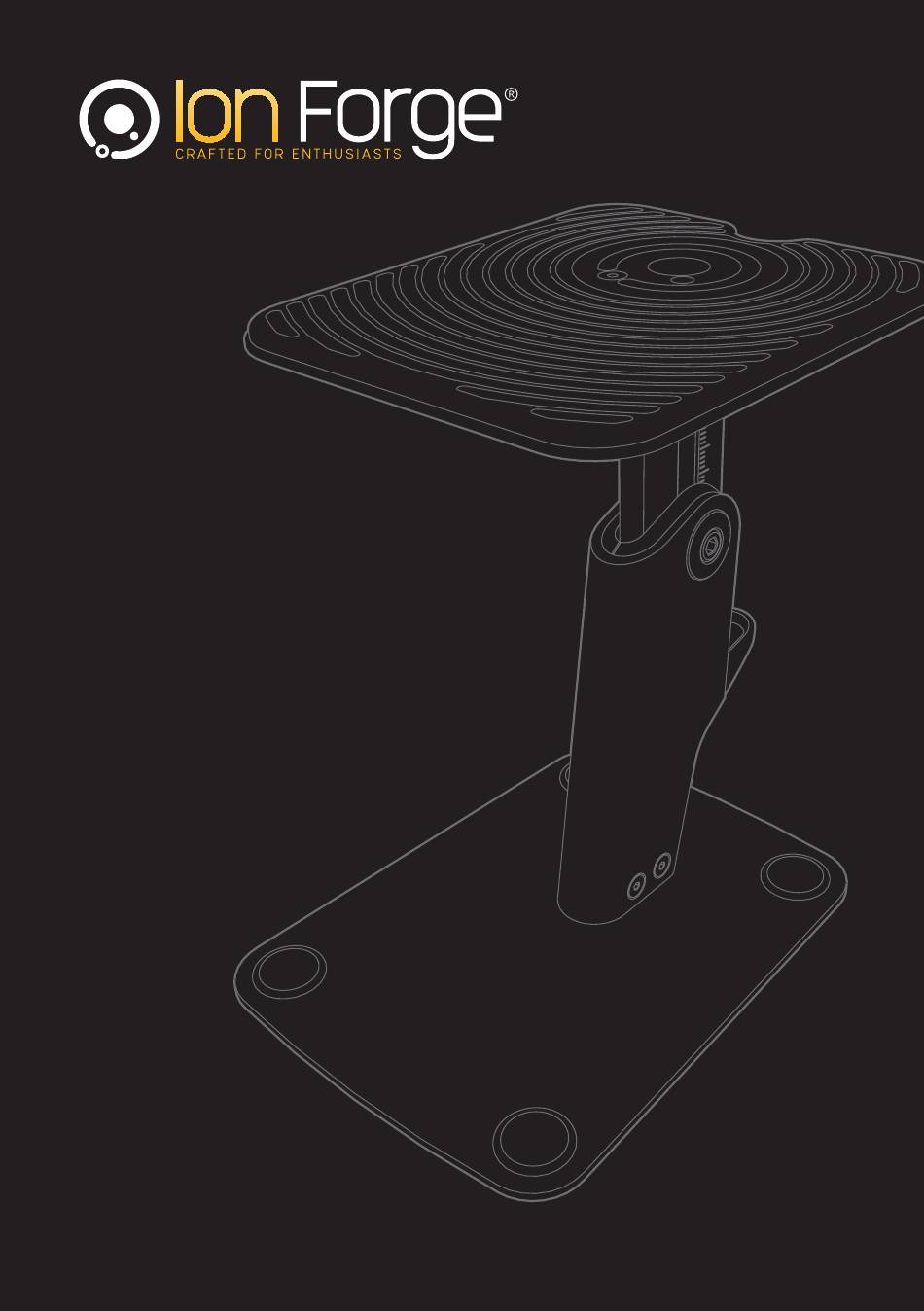

- Page 1 IONFORGEONLINE.COM Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
-
Page 2: Table Of Contents
Contents Introduction Package Contents Key Features Assembly Instructions Safety Instructions & Tips Technical Specifications Audio Set-up Guide About Ion Forge Contact Us Trademark & Copyright Warranty... -
Page 3: Introduction
To enjoy more precise audio imaging, unhindered sound stage and improved audio clarity in a near field listening set-up, correct placement and positioning of your speakers is crucial. Achieving an optimum set-up with the Pro Series Desktop Speaker Stands is easily achievable. Take a look at our Audio Set-up Guide on page 10 of this manual to see how. Finally, we hope that you enjoy the experience of setting up your new stands and that they make a welcome and stylish addition to your studio, listening or gaming space. Package Contents • 2 x Pro Series Desktop Speaker Stands • 2 x L-wrench (M6 and M8) • 1 x Product Manual Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands... -
Page 4: Key Features

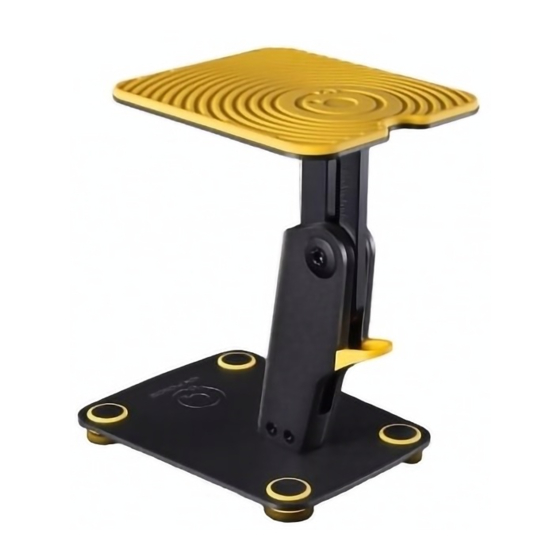

Key Features Height Adjustable With Level Indicators Height adjustable to allow you to set the mid-axis of each speaker in your near field listening set-up to your seated ear level. Tilt Adjustable Top Plate A 20° forward through to 20° backward tilt range allows you to set the optimum speaker face angle for each speaker in your set-up. Solid Steel And Aluminium Construction Solid steel and aluminium precision-machined core components that are built to last. Specially Designed Vibration Damping Feet Specially designed 60 durometer hardness silicone feet isolate stand to desktop vibrations and firmly plant the stand on your desk. - Page 5 Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
-
Page 6: Assembly Instructions
Assembly Instructions STEP ONE From the underside of the base plate use the M6 fasteners to fasten the stand neck assembly to the base plate. STEP TWO Loosen the central M8 fastener in the neck assembly, extend the aluminium riser upward and temporarily re-tighten the M8 fastener. STEP THREE Seat the top plate spacer onto the top of the aluminium riser and using the remaining M6 fasteners fasten the top plate to the riser & top plate spacer as shown. STEP FOUR Fit the silicone top mat onto the top plate. Make sure that the locating nubs on the underside of the top mat slot into the holes on the top plate so that the top mat sits flat. - Page 7 Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
-
Page 8: Safety Instructions & Tips
Safety Instructions & Tips WARNING PLEASE ENSURE ALL FASTENERS ARE TIGHTENED FIRMLY BEFORE USING THE STANDS. This applies particularly to the central M8 pivot fastener. For each stand: please make sure this fastener is FULLY TIGHTENED after adjusting the height and tilt of the stand top plate BEFORE placing your speaker on the stand. -
Page 9: Technical Specifications
Technical Specifications HEIGHT ADJUSTMENT RANGE (MIN) 200 mm (MAX) 285 mm TOP SPEAKER PLATE SIZE (W) 170 mm (L) 200 mm BASE PLATE SIZE (W) 175 mm (L) 225 mm TILT ANGLE +/- 20 degrees WEIGHT 2.6 kg (per stand) RECCOMENDED WEIGHT LOAD CAPACITY Up to 10 kg (per stand) Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands... -
Page 10: Audio Set-Up Guide
Audio Set-up Guide To enjoy more precise audio imaging, an unhindered sound stage and improved audio clarity in a near field listening set-up, correct placement and positioning of your speakers is crucial. Achieving an optimum near field listening set-up using the Ion Forge Pro Series Desktop Speaker Stands is easily achievable. STEP ONE Setting the Correct Height FIGURE 1.1 Adjust the height settings of your desktop speaker stands so that when you place your speakers on top of the stands the mid-axis between each speaker’s tweeter and woofer is set at your seated ear level. - Page 11 Follow the simple set-up steps outlined in this guide and then experiment with your desktop speaker stand settings and speaker placement until you feel that you have created a near field listening ‘sweet spot’ that works best for you. 85mm 85mm Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
- Page 12 Audio Set-up Guide STEP TWO Set Toe In FIGURE 2.1 (BIRDS EYE VIEW) Place and then ‘toe in’ your desktop speaker stands and speakers so that they are arranged in an equilateral triangle relative to you as the listener. A good guide to work with is to place your speakers at arm’s length away, equidistant apart and toed inwards at 30 to 45 degrees. ANGLE EACH SPEAKER FACE INWARDS APPROXIMATELY 30°...
- Page 13 For the majority of speakers, the tweeter’s sound source is closer to you than the woofer’s sound source; tilt your speakers slightly back to correct for this. MAXIMUM TILT 20° FORWARD 20° BACK Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
- Page 14 Audio Set-up Guide STEP FOUR Fine Tune Your Set-up FIGURE 4.1 (BIRDS EYE VIEW) Experiment with further desktop speaker stand and speaker positioning options until you find a configuration that sounds the best to you. If you feel the audio image is not deep enough, move your speakers further away from you. Alternatively if you feel the sound lacks weight, move your speakers closer toward you.
- Page 15 Placing your speakers too close to a rear wall or in a corner often results in sound waves bouncing off the rear or side walls before reaching your ears as secondary waves; this can degrade audio image and audio clarity. ALLOW AT LEAST 30CM OF CLEAR SPACE SURROUNDING SPEAKERS Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
- Page 16 Audio Set-up Guide STEP SIX Subwoofer Placement For a 2.1 channel set-up we suggest placing your subwoofer on the floor, in-line with and mid-way between your left and right channel speakers. The direction and source of low frequency sound waves (generally anything below 80 Hz) cannot be perceived by the human ear. This means that depending on the cross-over frequency set on your subwoofer, the exact placement of your subwoofer in your near field listening set-up is not as critical as the placement of your forward facing left and right channel speakers.
- Page 17 7.1 Set-up BIRDS EYE VIEW BIRDS EYE VIEW 5 SPEAKERS & 1 SUBWOOFER (DARK ORANGE) 7 SPEAKERS & 1 SUBWOOFER (DARK ORANGE) Congratulations! Set-up Is Now Complete You are ready to enjoy a near field listening experience with a whole new level of detail and satisfaction. Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands...
-
Page 18: About Ion Forge
About Ion Forge Based in Sydney Australia, Ion Forge is made up of a small team of people who share a love of all things gaming, creating and listening to good music and tinkering with audio hi-fi & gaming gear. Because we are enthusiasts ourselves we know that the pride and satisfaction you feel when personalising and optimising your listening or gaming space and audio & gaming gear can be just as important as the enjoyment you experience when gaming, listening to your favourite music or creating amazing audio. With this in mind our vision is to design and craft products that are... -
Page 19: Warranty
• the payment of the cost of replacing the goods; or • the payment of the cost of having the goods repaired. In no event shall Ion Forge’s liability exceed the retail purchase price of the goods. In no event shall Ion Forge be liable for any losses, damages, claims or expenses (incidental, special, exemplary, direct, indirect, consequential or other) arising from the use of Ion Forge products. Faulty Items Should an item prove faulty within the limited warranty period, we urge you to contact us at support@ionforgeonline.com to arrange a replacement, repair or refund (subject to limited warranty liability) if the product is legitimately faulty or defective. Product Manual & Audio Set-up Guide Pro Series Desktop Speaker Stands... - Page 20 SUPPORT@IONFORGEONLINE.COM WWW.IONFORGEONLINE.COM ‘ION FORGE’ & ‘CRAFTED FOR ENTHUSIASTS’ ARE TRADEMARKS OF ION FORGE...
