Summary of Contents for AUZAI ME16Z01

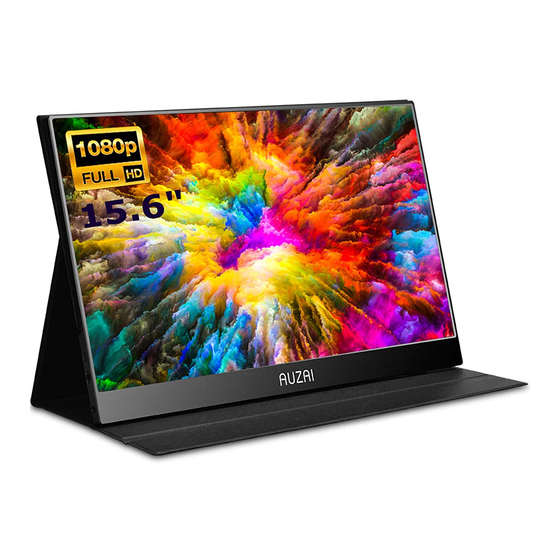

- Page 1 AUZAI ME16Z01 PORTABLE MONITOR USER MANUAL Tech Support Email:auzai-service@outlook.com...
-
Page 3: Table Of Contents
Table of Contents Section 1: Safety Precautions .............. 1 Section 2: What’s in the box? .............. 2 Section 3: Product Overview ..............3 Section 4: Connectivity Options ............4 4.1 – Connecting to Headphones ............4 4.2 – Connecting to a Computer Using Type-C .........4 4.3 –... -
Page 4: Section 1: Safety Precautions
AUZAI shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter. -
Page 5: Section 2: What's In The Box
Section 2: What’s in the box? Monitor x 1 Type-C to USB-A Cable x 1 Type-C to Type-C Mini HDMI to HDMI Cable x 1 Cable x 1 AUZAI ME16Z01 PORTABLE MONITOR USER MANUAL Cleaning Cloth x 1 User Manual x 1... -
Page 6: Section 3: Product Overview
Section 3: Product Overview Power/Return Button: Press and hold ~3 seconds to turn on/off the monitor. Turning Button: 1. OSD Menu: Press to enter OSD menu. 2. UP/DOWN turning switch: Push up/down to move up/down in the menus. When in a menu, press Turning Button to select menu item. 3. -
Page 7: Section 4: Connectivity Options
Listening to loud audio for prolonged periods of time may permanently damage your hearing. 4.2 – Connecting to a Computer Using Type-C Use a standard Type-C cable (included) to connect the ME16Z01 monitor directly to a computer with a full-featured USB Type-C interface. The monitor can be used for extended display. -
Page 8: Mobile Phone With Tv-Out Function
4.3 – Mobile Phone with TV-Out Function Use the standard Type-C cable (included) to connect the monitor to a Type-C compatible mobile phone. Monitor Phone Power Supply When not connected to an external power source, the mobile phone supplies power to the monitor In this case, energy-saving mode will be activated. -
Page 9: Connecting To A Computer Using Mini-Hdmi
4.5 – Connecting to a Computer Using Mini-HDMI • The mini-HDMI port on the monitor is compatible with most HDMI devices. When connecting to a computer through HDMI, the monitor must be powered with a 5V/3A or higher external power source. Video/Audio signal Computer Monitor... -
Page 10: Section 5: Basic Operations
Section 5: Basic Operations 1. Connect the Type-C power cable to your monitor, then connect the other end to your power source. It is recommended to 2. Insert one end of the Type-C cable into your computer or mobile phone with Type-C jack. -
Page 11: Section 6: Osd
Section 6: OSD The On-Screen Display (OSD) Menu can be used to adjust your monitor’s settings and appears on the left corner of screen after turning on the monitor and pressing the Turning Button When using the monitor for the rst time, settings will automatically adjust to 1. -
Page 12: Osd Menu Functions
Section 6: OSD Menu Functions Main Menu Sub-Menu Options Description Brightness/ Brightness 0~100 Adjust display brightness Contrast Contrast 0~100 Adjust display contrast Standard, Game, Set visual display mode Movie, Photo Turn on DCR function Turn off DCR function Sharpness Adjust display sharpness Color Settings Aspect Wide, Auto, 4:3 Set aspect ratio... -
Page 13: Brightness And Volume Quick-Access Menu
• Check the power cable and make sure there are no damaged/bent pins. Try to connect other devices to the monitor. If the problem persists, please contact the AUZAI customer service. The screen shows no signal • Check if the signal cable is properly connected to the device properly using the correct cables. -
Page 14: Section 8: Maintenance
Section 8: Maintenance 8.1 – Cleaning 1. Turn off the monitor and unplug the power cord. A cloth that cleans the surface of the monitor and is clothed in a neutral detergent. Wipe stubborn stains after wet. 2. Do not use detergents containing alcohol or acetone. Do not spray the cleaner directly on the screen, otherwise the cleaner may seep into the display and cause an electric shock. - Page 16 AUZAI Tech Support Email: auzai-service@outlook.com COPYRIGHT © 2019 AUZAI ALL RIGHTS RESERVED...
