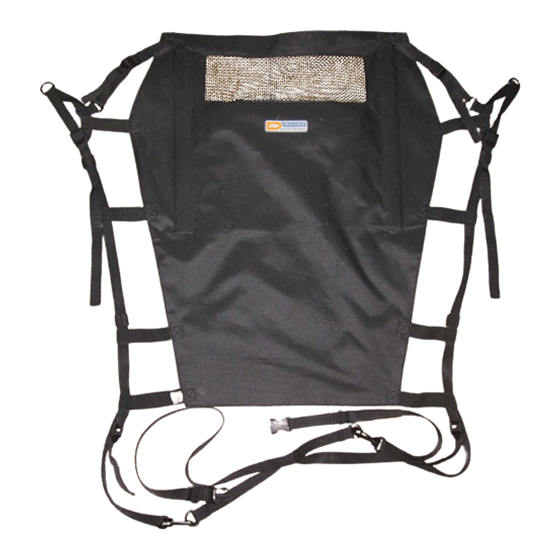

Kurgo back seat BARRIER Instructions And Care

Parts List & Key:
A inner D-ring
B outer D-ring
C under seat hook
D top headrest strap
E top tension buckle
F under seat strap
G steel support velcro closure
H horizontal steel support rod
I steel support rod pocket
J vertical steel support bar pocket
Optional extra support for barrier extension:
Flip up orange velcro (G) and slide metal rod (H) through
slot (I) that runs across the top of the barrier between
the vertical bar pockets (J). Close and secure velcro (G).
To lower barrier extension:
1) Open velcro (G) on the left and right side, and remove
the metal bar found in each slot (J), also remove metal rod (H).
2) Roll mesh top from bar slot (I) down and tuck fabric
into large black pocket
Attaching the barrier: Detachable Headrests
1. Orient the barrier so the
Kurgo logo is facing the
back of the car. Remove the
driver's seat headrest. Slide
the inner headrest column
through the large D-ring
attached to strap (A). Slide
outer D-ring (B) through
outer headrest post. Repeat
on passenger side.
Instructions and care
2. OPTION A - Clip hook (C)
to the underside of the front
seat base plate or springs.
Pockets
View from backseat
Center Console
OR
OPTION B - Run strap (F)
around the outside footing
of each seat and secure
hook (C).
kurgo.com/product-instructions
INSTALLED VIEW
Cup Holder
Passenger Seat
3. Pull top straps (D) tight
on both sides; pull both
bottom straps (F) tight.
