Seiki SCREEN SYSTEMS MX-0710E Installation Manual

Installation
Retractable Screen
Manual
Thank you for purchasing the Retractable Screen (Single Sliding Panel).
Please read the instructions in this manual carefully prior to commencing installation.
Tools required for installation; an electric driver, Phillips screwdriver, tape measure, level and carpenter square.

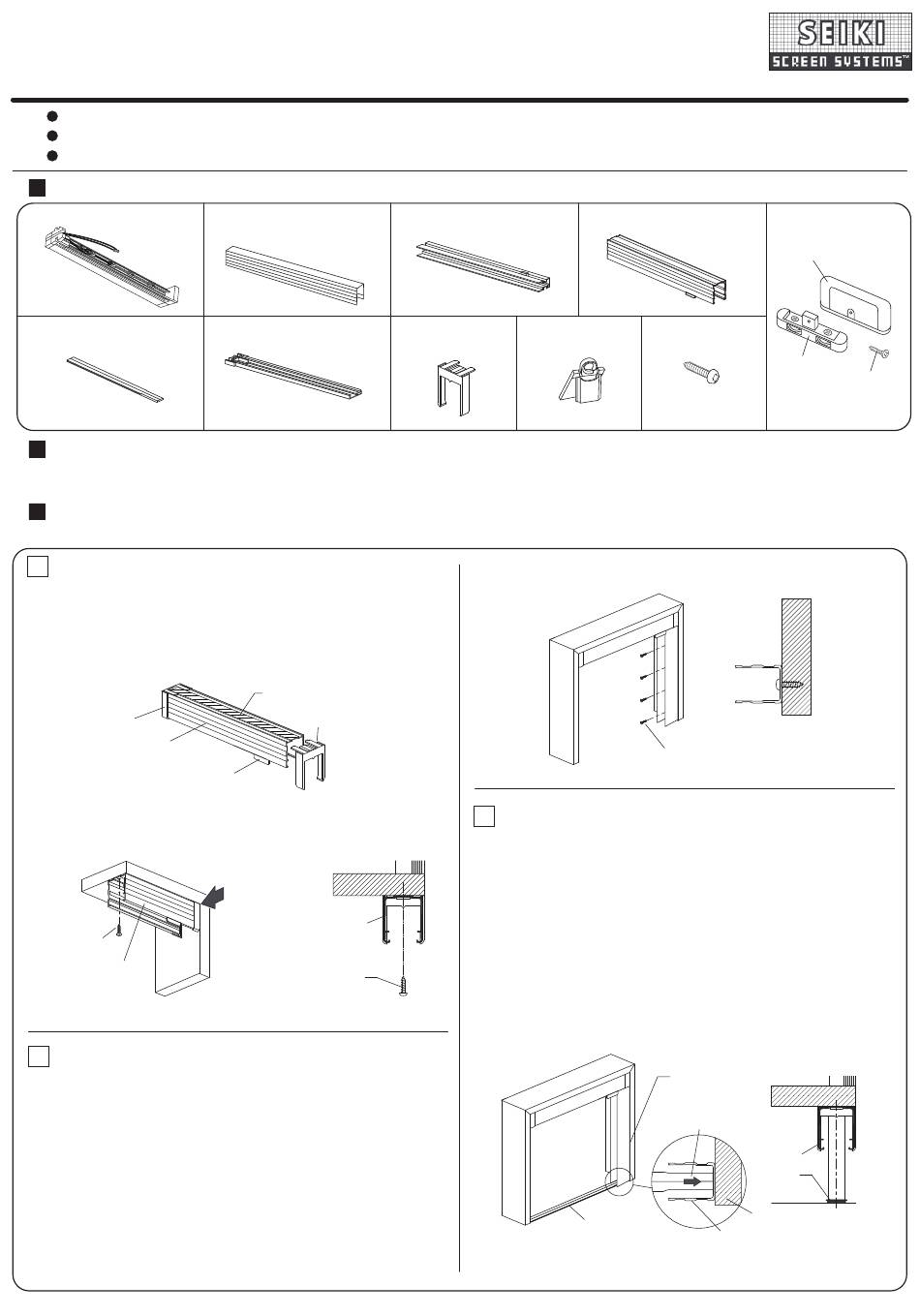

Parts List
Main Screen Cartridge x 1
Bottom Rail x 1
Prior to Installation
Prior to install, all surfaces where any screen component is to be installed must be flat, straight, square, plumb and level. Surfaces
must be free of dirt and debris.
Installation Procedure
This manual depicts the screen installing on the right of the opening, reverse the procedure for a left mount.
Installing the Top Rail
1
(1) Attach the Top Rail End Caps to both ends of the Top Rail.
(2) Remove the backing from the double sided tape on top of the Top Rail.
When attaching the Top Rail to the upper side of the frame, make sure the
guide is located on the side to which the screen is folded. The Sliding Bar
Guide should be located on the right side when the screen is folded to right,
and it should be located on the left side when the screen is folded to left.
Top Rail End Cap
Top Rail
(3) Adjust the position of the Top Rail End Cap by moving it to right and left so that
no clearance is created between the cap and the frame.
Fix the Top Rail in place using panhead screws.
Panhead Screw
Top Rail
Installing the Main Screen Cartridge Cover
2
(1) Remove the backing from the double sided tape on the Main Screen
Cartridge Cover.
(2) Tilt the Main Screen Cartridge Cover and insert the top of it into the Top Rail.
Using a level, bring the Main Screen Cartridge Cover to a vertical position,
lower to meet the threshold or frame below, press against the frame, in this
case, to the right side of the frame.
Main Screen
Cartridge Cover x 1
Catch Frame x 1
Double Sided Tape
Top Rail End Cap
Sliding Bar Guide
Extend the Top
Rail End Cap
to meet with
the frame.
Top Rail
Panhead Screw
(Single Sliding Panel)
Sliding Bar Cover x 1
Top Rail End Caps
Mesh Hooks x 5
x 2
(3) Fix the Main Screen Cartridge Cover in place using panhead screws.
Installing the Bottom Rail
3
(1) Clean the surface area where the Bottom Rail is to be installed.
(2) Note; the Bottom Rail must install parallel with the Top Rail, a plumb line on
the opposite side of the frame from the Main Screen Cartridge Cover is
recommended as a positioning guide for placement of the Bottom Rail.
(3) Remove the backing from the double sided tape on the Bottom Rail.
(4) When installing the Bottom Rail, note that it has a narrow end at one side.
Place the Bottom Rail with the narrow end facing the Main Screen Cartridge
Cover. Align the center of the Bottom Rail (V-Groove) with the center of the
Main Screen Cartridge Cover.
(5) Press the Bottom Rail firmly against the Main Screen Cartridge Cover.
Applying force evenly, ensure the Bottom Rail is attached to the surface
firmly and straight.
Bottom Rail
- 1 -
Top Rail x 1
Panhead Screws
x 15
(Some of the panhead screws
may be left unused depending
on the product dimensions.)
Panhead Screw
Narrow end of
Bottom Rail
Meet with Main Screen
Cartridge Cover.
Frame
Main Screen Cartridge Cover
MX-0710E
Handle Set x 2
Handle
Handle Base
Screw
Top Rail
Bottom
Rail
