- Page 1 User Manual User Manual CE-CVAD 18G HDMI Repeater w/ Audio Extraction...
- Page 2 18G HDMI Repeater w/ Audio Extraction. All Rights Reserved Version: CE-CVAD_2018V1.2 Version: UMX8A2013V1.1...

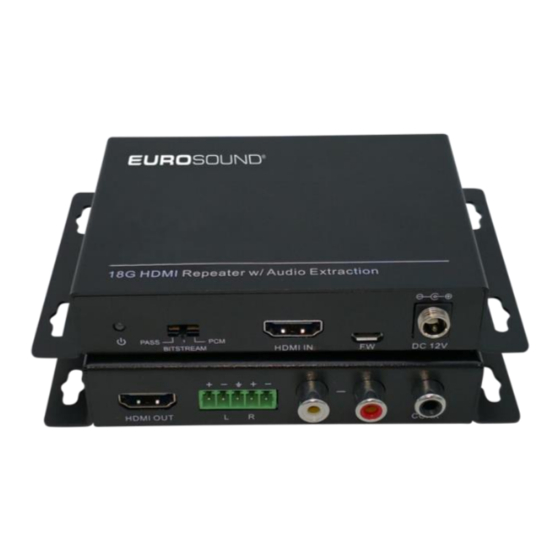

- Page 3 (The purchase invoice shall prevail). Introduction The CE-CVAD is a small-size HDMI2.0 audio de-embedder with 1 HDMI input, 1 HDMI output, and three kinds of audio outputs. It is designed to extract audio from 4K HDMI signal via stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports.
- Page 4 PASS (default): The source device obtains its EDID from display. BITSTREAM: Set the audio block of the display EDID to DTS/Dolby with built-in multi-channel EDID data of the CE-CVAD. Ensures the source output DTS/Dolby audio when the display only supports PCM audio.
- Page 5 18G HDMI Repeater w/ Audio Extraction.
- Page 6 18G HDMI Repeater w/ Audio Extraction. Specification Video Input (1) HDMI Input connector (1) 19-pin type-A female HDMI 2.0, HDCP2.2 Output (1) HDMI Output connector (1) 19-pin type-A female HDMI 2.0, HDCP1.4 Audio Output (1) Stereo balanced audio L/R; (1) Analog audio L+R ; (1) COAX Output connector (1) 5-Pin phoenix connector;...
- Page 7 18G HDMI Repeater w/ Audio Extraction. Note: This picture is for reference only, the specific scheme is subject to real devices.
