Summary of Contents for fantastic furniture JUNO UTILITY 3 DRAWER

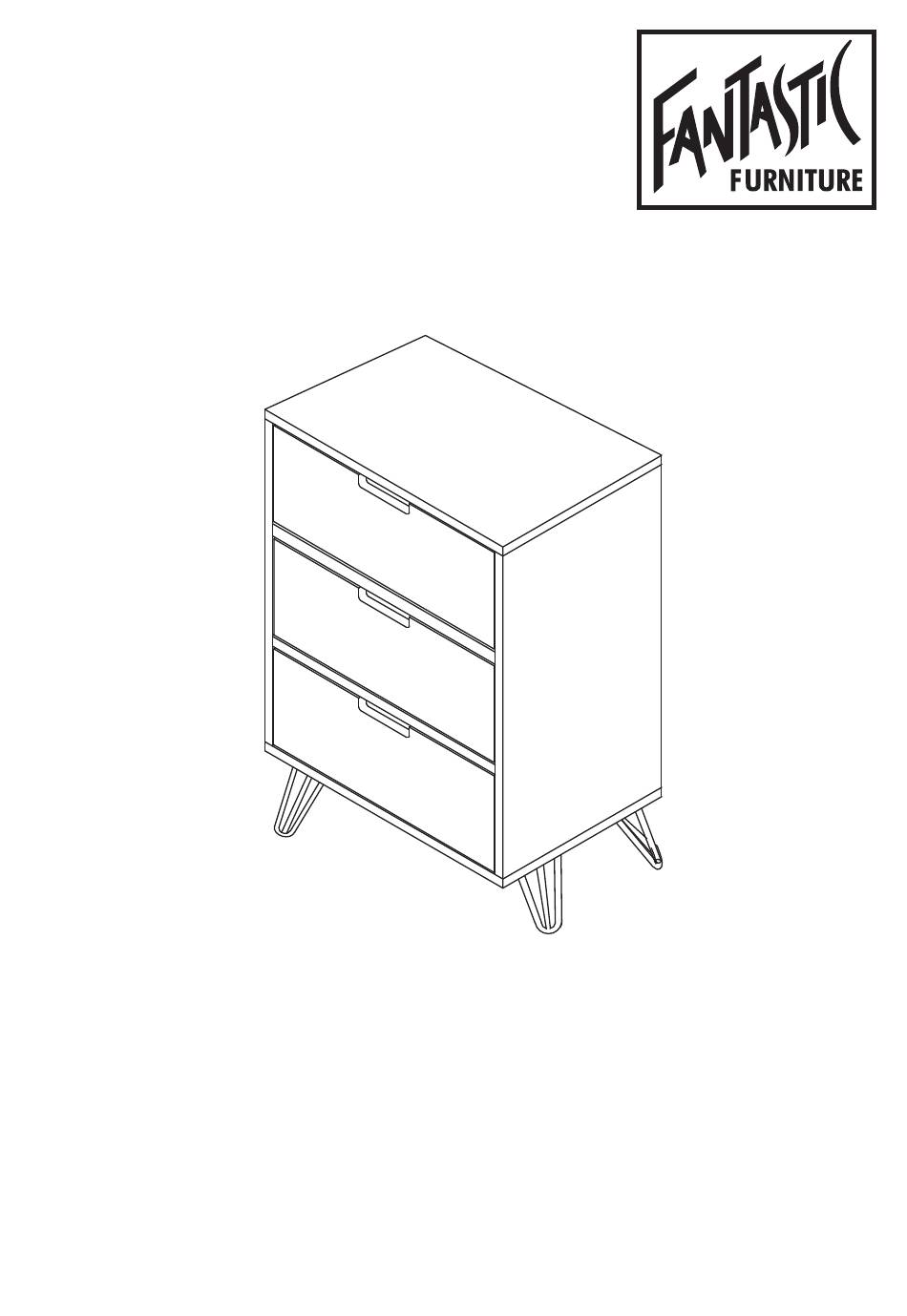

- Page 1 Version 1.0 JUNO UTILITY 3 DRAWER www.fantasticfurniture.com.au...
- Page 2 Recommended weight capacity : 30KG. WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been supplied with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
-
Page 3: Assembly Checklist
Assembly checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly. until the item is fully assembled. -
Page 4: What You Need
What you need to assemble the product Top Panel (P1) Rail Right DO NOT USE (P5) Side Other tools you need Panel Phillips head screwdriver; Back (P3) Panel (P6) Rail Left (P5) Side Panel Parts list (P2) Box 1: Top panel (P1); Drawer Back Left Side Panel(P2);... - Page 5 Step 1 You will need 4 x Cam Phillips head Bolts (H3) screwdriver (P1) Attach 4 x cam bolts (H3) to top panel (P1) as shown.Tighten with a Phillips head screwdriver. Step 2 You will need (P2) 2 x Dowels Phillips head (H1) screwdriver...
- Page 6 Step 3 You will need (P3) 2 x Dowels Phillips head (H1) screwdriver 2 x Cam 9 x Small Bolts (H3) Screws (H5) 3 x CR Runner Tracks (H7) Attach 3 x CR runner tracks (H7) to right side panel (P3) with 9 x small screws (H5). Insert 2 x dowels (H1) and 2 x cam bolts (H3) into right side panel (P3) as shown.
- Page 7 Step 5 You will need (P2) Phillips head 4 x Dowels screwdriver (H1) (P1) (P3) 4 x Cam Nuts (H4) This is how a cam nut works ..The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam (P1) nut so it tightens over...
- Page 8 Step 7 You will need (P7) (P4) 12 x Bolts 1 x Allen Key (H16) (H10) 4 x Felt Pads (H17) (P7) (P4) Attach 4x legs (P7) to bottom panel (P4) and secure with 12 x bolts (H10). Tighten with an Allen key (H16).Apply 4 x felt pads (H17) to bottom of legs (P7) as shown. Step 8 You will need 12 x Cam...
- Page 9 Step 9 You will need (P10) (P11) Phillips head 12 x Cam screwdriver Nuts (H4) This is how a cam nut works ..(P8) The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt.
- Page 10 Step 11 You will need (P9) 12 x Long (P10) Phillips head screwdriver Screws (H2) (P11) Attach drawer back (P9) to drawer sides (P10, P11) with 4 x long screws (H2), make sure that the groove lines up the whole way around the drawer. Tighten screws using a Phillips head screwdriver.Repeat for all 3 drawers.
- Page 11 Step 13 Carefully turn the unit over to an upright position. Slide all 3 assembled drawers into the unit. Step 14 You will need (P1) 1 x Safety 1 x Screw Strap (H11) (H12) 1 x Washer Phillips head (H13) screwdriver (P6) 4 x Wedges...
-
Page 12: Job Complete
Step 15 Seek advice from a qualified trades person on how to attach this safety strap to You will need your specific wall. 1 x Washer Phillips head Wall screwdriver (H13) Screw and Wall Plug are not provided. Screw Please use appropriate fixtures for your wall.
