Summary of Contents for ITL MKR-S750-0DH

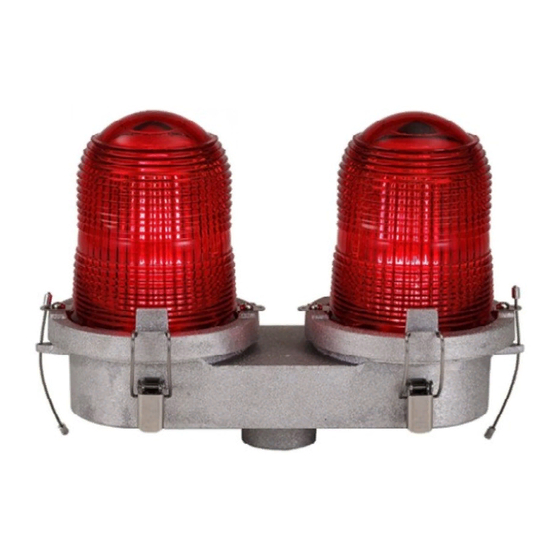

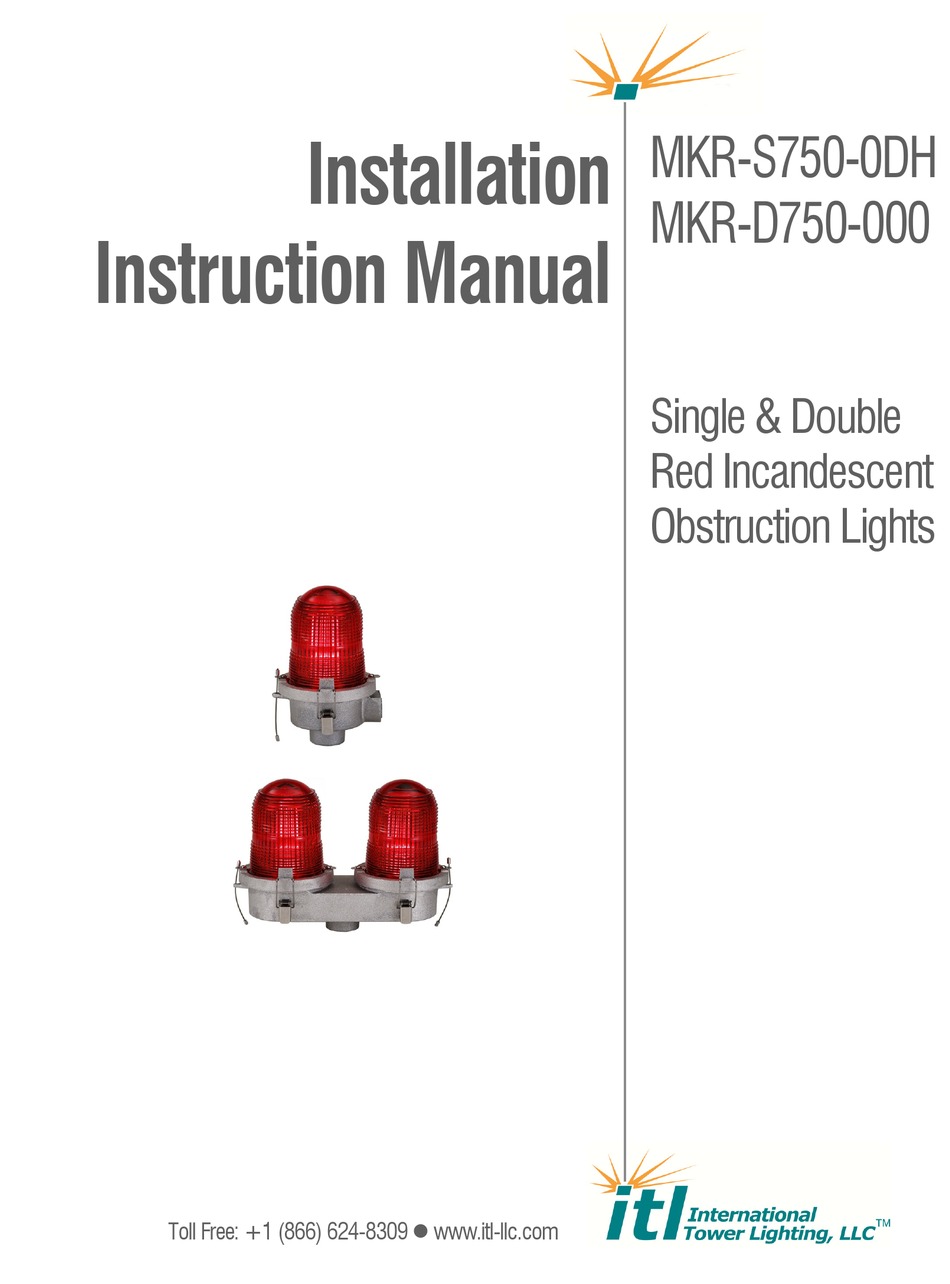

- Page 1 Installation MKR-S750-0DH MKR-D750-000 Instruction Manual Single & Double Red Incandescent Obstruction Lights Toll Free: +1 (866) 624-8309 www.itl-llc.com...
-
Page 2: Front Matter
ITL, LLC in order to obtain a Return Authorization Number, RMA. In no event shall ITL, LLC’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. -
Page 3: Table Of Contents
.................... 6 Parts Locator (MKR-S750-0DH) ..................7 Parts Locator (MKR-D750-000) ..................7 Replacement Parts ......................8 Technical Support and Contact Info .................. 8 Contact Info ........................8 ..........................8 Copyright 2004-2020 ITL, LLC DOC-MKR-X750-MNL Rev6.doc (03/30/2020) Page 3 of 8... -
Page 4: Introduction
Congratulations, and thank you for choosing an ITL L-810 red obstruction light. The ITL, LLC L-810 red obstruction light has been tested for compliance with applicable FAA specifications for marking hazards to air navigation such as towers, smoke stacks or similar structures. -
Page 5: Specifications
(15.3cm) Weight 10 lbs (4.5Kg) max Electrical Input Power 120VAC 50/60Hz (240 Vac version available) Lamps 116W, 120 Vac (Lamps sold separately) Mounting: 3/4 inch conduit entrance (bottom) Copyright 2004-2020 ITL, LLC DOC-MKR-X750-MNL Rev6.doc (03/30/2020) Page 5 of 8... -
Page 6: Installation
Crimp Tool Needle Nose Pliers Quick Installation The MKR-S750-0DH (L-810) single obstruction light has ¾ inch NPT side and bottom hubs available for mounting. The L-810 must be leveled during installation for correct vertical beam alignment. The MKR-D750-000 (L-810) double obstruction light has a ¾ inch NPT bottom hub available for mounting. -
Page 7: Parts Locator (Mkr-S750-0Dh)
MKR-S750-0DH / MKR-D750-000 Parts Locator (MKR-S750-0DH) Parts Locator (MKR-D750-000) Copyright 2004-2020 ITL, LLC DOC-MKR-X750-MNL Rev6.doc (03/30/2020) Page 7 of 8... -
Page 8: Replacement Parts
For information on the MKR-S750-0DH / MKR-D750-000 obstruction lights’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below.
