Dynamic DX-SLM Installation Manual

Servo steering and lighting module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

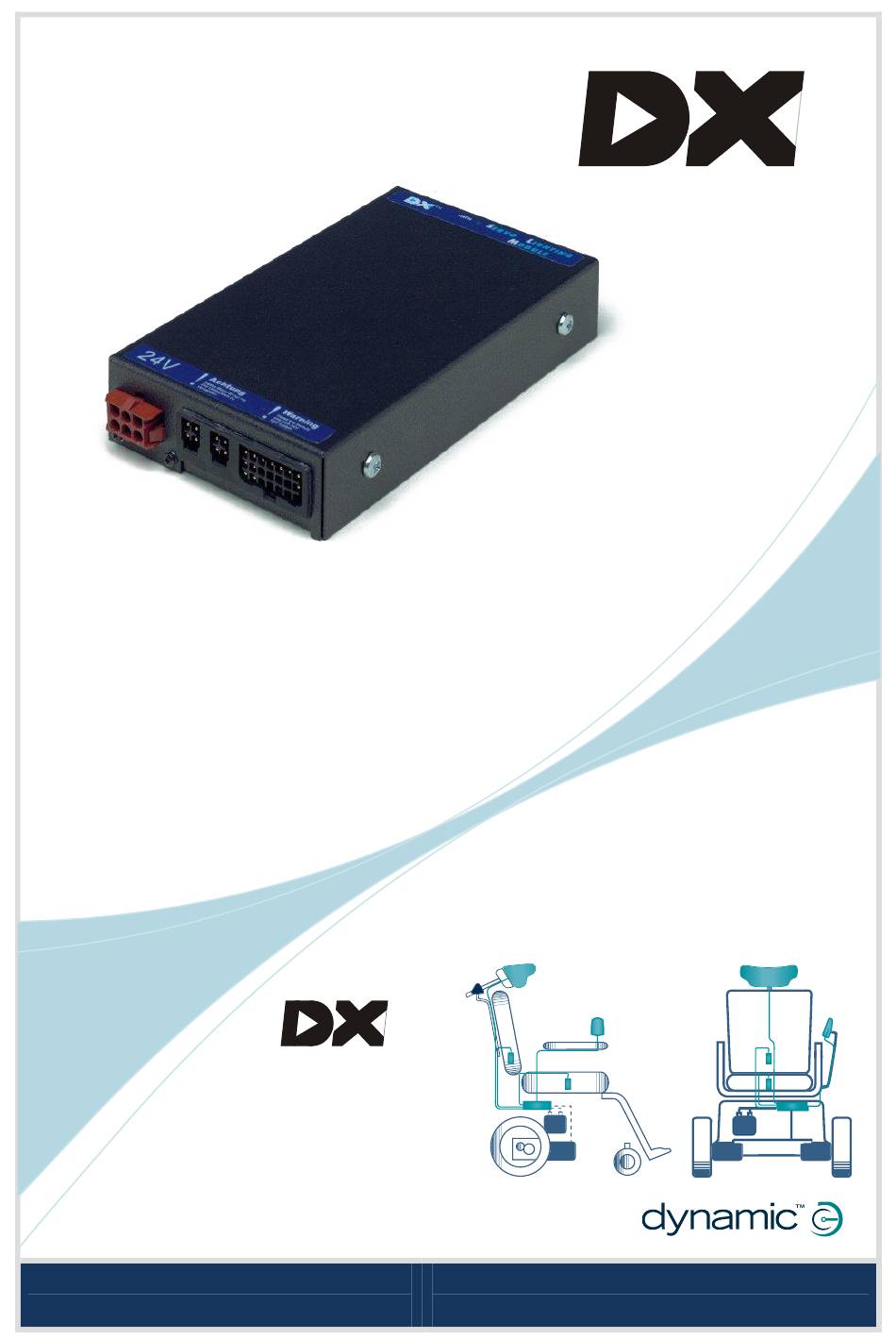

T
M
DX-SLM
Servo Steering and Lighting
Module
T
M
THE
ULTIMATE
POWERCHAIR
CONTROL
SOLUTION
DX-SLM
DX-SLM INSTALLATION MANUAL
Servo Steering and Lighting Module
GBK60027: Issue 5 - March 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-SLM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamic DX-SLM

Summary of Contents for Dynamic DX-SLM

  • Page 1 DX-SLM Servo Steering and Lighting Module ULTIMATE POWERCHAIR CONTROL SOLUTION DX-SLM DX-SLM INSTALLATION MANUAL Servo Steering and Lighting Module GBK60027: Issue 5 - March 2014...

  • Page 3: Table Of Contents

    GBK60027 DX-SLM Installation Manual Issue 5 Contents Introduction ............. 3 Related Documentation ......... 4 General Description ..........5 General Features ................ 6 Safety and Protection Features ..........6 Specifications ............7 Electrical Specifications ............7 Mechanical Specifications ............9 Environmental Specifications ........... 9 Installation .............
  • Page 4 GBK60027 DX-SLM Installation Manual Issue 5 Calibrating the SLM using the HHP ........40 7.4.1 Initial Operation ............. 40 7.4.2 Calibrating Parameters ..........41 Diagnostics ............43 Troubleshooting ................ 43 Flash Codes ................43 Wizard Diagnostics ..............46 Maintenance ............47 Safety and Misuse Warnings ........

  • Page 5: Introduction

    The SLM has two standard DX BUS connectors so that it may be connected to the DX System. This manual, and others listed in Section 2, must be read and understood. For more information, please contact Dynamic Controls or one of the sales and service agents listed at the back of this manual. Page 3...

  • Page 6: Related Documentation

    Any attempt to gain access to or in any way abuse the electronic components and associated assemblies that make up the powerchair system renders the manufacturer’s warranty void and the manufacturer free from liability. The latest version of this manual can be downloaded from the Dynamic Controls website: www.dynamiccontrols.com Page 4...

  • Page 7: General Description

    GBK60027 DX-SLM Installation Manual Issue 5 3 General Description The SLM is designed to enable the DX System to run on a servo steered power wheelchair, with lights. The wheelchair will have: a servo motor, a position sense potentiometer, a steering release microswitch, one or two drive motors with integral park brakes, a 24 V battery supply, and optional 24 V lights.

  • Page 8: General Features

    GBK60027 DX-SLM Installation Manual Issue 5 3.1 General Features The SLM has the following general features: • Servo output capable of supplying 5 A continuous and 30 A peak to a 24 V servo actuator. • Fully DX BUS compatible.

  • Page 9: Specifications

    GBK60027 DX-SLM Installation Manual Issue 5 4 Specifications 4.1 Electrical Specifications Power Supply Input Symbol Parameter Units Battery voltage 18.0 24.0 32.0 Quiescent Current (No servo load) Operating Current (+ servo load) DX BUS Current (RMS Continuous to entire DXBUS...
  • Page 10 GBK60027 DX-SLM Installation Manual Issue 5 Lighting Specification Symbol Parameter Units Turn Indicator Outputs (each output) Output Voltage BAT-1 BAT-0.1 Continuous Output Current Sidelight (Head / Tail Light) Output Output Voltage BAT-1 BAT-0.1 Continuous Output Current Page 8...

  • Page 11: Mechanical Specifications

    GBK60027 DX-SLM Installation Manual Issue 5 4.2 Mechanical Specifications Size: 210 * 123 * 38 mm Weight: 0.530 Kg Mounting: M5 screws four places, or placed in tray Case material: Aluminium sheet, powder coat finish Case sealing: Tamper proof, IP54 if mounted as per mounting instructions SLM Configuration 4.3 Environmental Specifications...

  • Page 12: Installation

    GBK60027 DX-SLM Installation Manual Issue 5 5 Installation 5.1 Introduction Installing a SLM requires the following steps: Mounting the SLM Refer Section 5.2 SLM Connection with the DX system Refer Section 5.3 SLM 21 Way Connector Refer Section 5.4 SLM Servo Connector Refer Section 5.5...
  • Page 13 GBK60027 DX-SLM Installation Manual Issue 5 Securing the SLM The SLM can be mounted using the four mounting holes and mounting screws provided, or placed in a suitable tray. Do not use screws that protrude into the SLM case by more than 12 mm.

  • Page 14: Slm Connection With The Dx System

    GBK60027 DX-SLM Installation Manual Issue 5 5.3 SLM Connection with the DX System 5.3.1 DX BUS Connections 2 x D X B U S C o n n e c t o r s Note: If only one DX BUS connector is used on the SLM and the remaining connector is accessible to the wheelchair user, a GPL65009 DX BUS Connector Cover should be fitted to the unused connector.

  • Page 15: Dx Module Interconnection Topology Options

    GBK60027 DX-SLM Installation Manual Issue 5 5.3.2 DX Module Interconnection Topology Options The battery and DX Power Module combination are always considered the heart of a DX system. Other DX Modules can be arranged in several ways: DX BUS Expander...

  • Page 16: Dx Bus Length And Voltage Drop Restrictions

    The star and mixed topologies both require the use of one or more DX BUS Expanders (DX-SKT-X3). The DX-SKT-X3 may be purchased from Dynamic Controls or a Dealer. For lowest cost and simplicity the in-line topology is generally preferred, provided the DX BUS length and voltage drop requirements described below can be met.
  • Page 17 GBK60027 DX-SLM Installation Manual Issue 5 Example: Consider a Power Module connected to an SLM via five other DX Modules using 1 metre cables. DX Power Module Module Module Module Module Module Battery Servo Motor Example of DX Module interconnection...
  • Page 18 GBK60027 DX-SLM Installation Manual Issue 5 This favours topologies such as: B a t t e r y 2 4 V P o w e r M o d u l e L o w C u r r e n t M o d u l e s...

  • Page 19: Slm 21 Way Connector

    Part/Order Number GCN 0793* DX Positronics Contact, FC116N2 (Med) Part/Order Number GCN 0797 DX Positronics Contact, FC120N2 (Sml) Part/Order Number GCN 0794* The DX Positronics Contacts are crimp terminals *Included in DX-SLM Loom Connector Kit Part/Order Number DXLOOM-SLM Page 17...

  • Page 20: Power Supply From The Dx Bus

    GBK60027 DX-SLM Installation Manual Issue 5 Wire Sizes The minimum wire sizes that must be used are: Function Wire Size (minimum) Terminal Part* DX BUS - 1.0 mm² FC116N2 Side Lights - 0.5 mm² FC120N2 Left Indicator - 0.5 mm²...

  • Page 21: Power Supply From The Battery

    GBK60027 DX-SLM Installation Manual Issue 5 5.4.4 Power Supply from the Battery When the servomotor and lighting require more current than the 12 A DX BUS has available, the SLM must be powered directly from the battery, and both battery negative terminals on the SLM must be used.

  • Page 22: Slm Connection To Lights

    The DX System is designed to perform optimally with either Lead-Acid or Gel Cell deep cycle batteries. Consult Dynamic Controls for other battery types. It is recommended that two 12 V batteries with capacity greater than 20 A hours be used.
  • Page 23 Note: If a DX2-PMAxxL is used, the lighting can be split between the Power Module and the DX-SLM. For example, the DX-SLM can drive the front indicators and side lights while the DX2-PMAxxL drives the rear indicators and side lights.

  • Page 24: Slm Servo Connector

    AMP Part Number 350547 (solid pin) For 1.0 and 2.0 mm² wires AMP Part Number 350705 (split pin) * One housing and four 0.5mm contacts are included in the DX-SLM Loom Connector Kit, Part Number DXLOOM-SLM. Wire Sizes The minimum wire sizes that must be used are:...
  • Page 25 GBK60027 DX-SLM Installation Manual Issue 5 When the steering wheels are centred, there should be equal resistance between the Position Sense Pot wiper and each end of the pot. Small differences can be overcome during calibration (refer to the Programming section).

  • Page 26: Operation

    GBK60027 DX-SLM Installation Manual Issue 5 6 Operation 6.1 SLM Activation The SLM is operated by a DX Remote. Each DX Remote has different facilities and not all support a full lighting system. The operation of the lighting is therefore very dependent on what remote it is used with.

  • Page 27: Programming

    Incorrect or inappropriate programming of a DX System may put the wheelchair into a dangerous state. Dynamic Controls accept no responsibility or liability for accidents caused by incorrect programming. This chapter must be read and understood before attempting to program a DX System containing an SLM.

  • Page 28: Dx Remote Wizard Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 7.2 DX Remote Wizard Parameters Key: Editable at this level (see section 7.1.2.1 of the DX System manual)   Viewable at this level Note: Refer to the Wizard User Manual and the DX System Manual for detailed operating instructions.

  • Page 29: Drive Program Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 7.2.2 Drive Program Parameters The DX System supports up to five Drive Programs. The Drive Programs are defined in the DX Remote programming as factory settings specified by the customer. The Drive Programs govern the driving performance of the wheelchair as suitable for different environmental conditions.
  • Page 30 GBK60027 DX-SLM Installation Manual Issue 5 7.2.2.3 Turning Deceleration Parameter Possible Values Default Lite Turning Deceleration 15 - 100 % 70 %     The rate of response when the joystick is deflected left or right towards neutral. A value of 15% gives slow response, 100% gives fast response.

  • Page 31: Slm Wizard Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 7.3 SLM Wizard Parameters Key: Editable at this level (see section 7.1.2.1 of the DX System manual)   Viewable at this level Note: Refer to the Wizard User Manual and the DX System Manual for detailed operating instruction.
  • Page 32 GBK60027 DX-SLM Installation Manual Issue 5 The first eight parameters define the maximum forward and reverse speeds for four non-zero turning positions: 25, 50, 75 and 100% turning. The greater the turning %, the less the assigned speed value should be. It is assumed that a safe speed is the same for left and right turning.
  • Page 33 GBK60027 DX-SLM Installation Manual Issue 5 7.3.1.4 Maximum Turn @ 100% Speed Parameter Possible Values Default Lite   Maximum Turn @ 100% Speed 10 - 100 % 50 %  The purpose of this parameter is to give finer control of the wheelchair when travelling at high speed.

  • Page 34: Steering Motor Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 7.3.2 Steering Motor Parameters 7.3.2.1 Straighten at Start Parameter Possible Values Default Lite Straighten at Start Yes / No  If set to ‘yes’, the steering wheels will straighten when the DX System is turned on.
  • Page 35 GBK60027 DX-SLM Installation Manual Issue 5 7.3.2.6 Current Limit Parameter Possible Values Default Lite Current Limit 4 - 40 A 10 A  The current limit for the servo motor. The SLM will ensure that no more than the stated current will go through the servo motor.
  • Page 36 If set to ‘on’, Motor I²T Protection is enabled. I²T parameters define the thermal characteristics of the motors used in wheelchair. The OEM must provide sample motors or detailed motor specifications to Dynamic Controls. Dynamic will then provide recommended setting to ensure correct motor protection against overheating.

  • Page 37: Steering Position Feedback Pot Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 7.3.3 Steering Position Feedback Pot Parameters Physical Pot Limits Actual Lock Limits Lock Margin Lock Margin Pot Voltage Tolerance Right Lock Left Lock Min Pot End V Max Pot End V Position Sense 7.3.3.1...
  • Page 38 GBK60027 DX-SLM Installation Manual Issue 5 7.3.3.3 Lock Margin Parameter Possible Values Default Lite Lock Margin 0 - 50 %  The lock margin voltage ratio; added or subtracted to Left and Right physical Locks. It should be set so that the SLM will target the positions of maximum steering deflection when the joystick is deflected fully left or right.

  • Page 39: Joystick Restrictor Plate Table

    GBK60027 DX-SLM Installation Manual Issue 5 7.3.4 Joystick Restrictor Plate Table 7.3.4.1 Restrict Speed Parameter Possible Values Default Lite  Restrict Forward Speed 25 % 60 - 100 % 90 %   Restrict Forward Speed 50 % 40 - 100 % 60 % ...
  • Page 40 GBK60027 DX-SLM Installation Manual Issue 5 A Speed Scalar value of 100 % will double the speed demand so that 100 % speed will occur at point ‘d’, mid way between neutral and point ‘c’. The purpose of this adjustment is to allow full speed to be achieved with some turning deflection.
  • Page 41 LED bulbs are used, or when only one indicator bulb (per side) is being driven by the SLM. The side light channel is not affected by this parameter because the DX-SLM module does not check the amount of current being drawn by the side light circuit.

  • Page 42: Calibrating The Slm Using The Hhp

    GBK60027 DX-SLM Installation Manual Issue 5 7.4 Calibrating the SLM using the HHP Twelve SLM parameters must be calibrated to the individual wheelchair system using the HHP. These parameters are all described in section 7.3. The first four parameters calibrated by the HHP are approached sequentially. The eight Restrictor Plate parameters are grouped and calibrated in one operation of the HHP.

  • Page 43: Calibrating Parameters

    GBK60027 DX-SLM Installation Manual Issue 5 Press 'YES'. The display reads: VIEW/EDIT SERVO MOD Veer compensation Right EXIT NEXT LEFT RIGHT 7.4.2 Calibrating Parameters Pressing ‘EXIT’ at any point during the calibration procedure will return you to screen  Calibrate the Veer Compensation (Veer (right +)) Parameter.
  • Page 44 GBK60027 DX-SLM Installation Manual Issue 5 Calibrate the Motor Speed Parameter. VIEW/EDIT SERVO MOD Max motor speed calibration EXIT NEXT START Press 'START'. The steering wheels move to their left and right extremes, then return to centre. Press ‘NEXT’. This calibration should be performed with the normal weight on the chair i.e. while sitting on the chair.

  • Page 45: Diagnostics

    DX System off and then on again. If the suggested action does not remove the fault, contact a Dynamic Sales and Service Centre (listed at the back of this manual).
  • Page 46 GBK60027 DX-SLM Installation Manual Issue 5 DX System SLM Status Likely Cause of Fault and Possible Action Status LED LED Flash Flash Code Code Module Fault Cause: Connections between DX Modules may be faulty, or there may be an internal fault in the SLM.
  • Page 47 GBK60027 DX-SLM Installation Manual Issue 5 DX System SLM Status Likely Cause of Fault and Possible Action Status LED LED Flash Flash Code Code Lighting Fault Cause: 1. A fault is detected in the lighting circuits. 2. Indicator lights are flashing faster than normal.

  • Page 48: Wizard Diagnostics

    GBK60027 DX-SLM Installation Manual Issue 5 DX System SLM Status Likely Cause of Fault and Possible Action Status LED LED Flash Flash Code Code CANH Fault Cause: 1. An invalid voltage has been detected on the DXBUS CANH line. 2. Communication is not possible using the CANH wire.

  • Page 49: Maintenance

    GBK60027 DX-SLM Installation Manual Issue 5 9 Maintenance 1. All Dynamic electronic components should be kept free of dust, dirt and liquids. For cleaning the product, use a cloth dampened with warm soapy water. Do not use chemicals, solvents or abrasive cleaners, as this may cause damage to the product.

  • Page 50: Safety And Misuse Warnings

    GBK60027 DX-SLM Installation Manual Issue 5 10 Safety and Misuse Warnings All warnings throughout this Installation Manual must be read and understood. If in doubt ask for advice. This DX component must not be used other than in the manner described in this Installation Manual.

  • Page 51: Warranty

    GBK60027 DX-SLM Installation Manual Issue 5 11 Warranty All equipment supplied by Dynamic Controls is warranted by the company to be free from faulty materials or workmanship. If any defect is found within the warranty period, the company will repair the equipment, or at its discretion, replace the equipment without charge for materials and labour.
