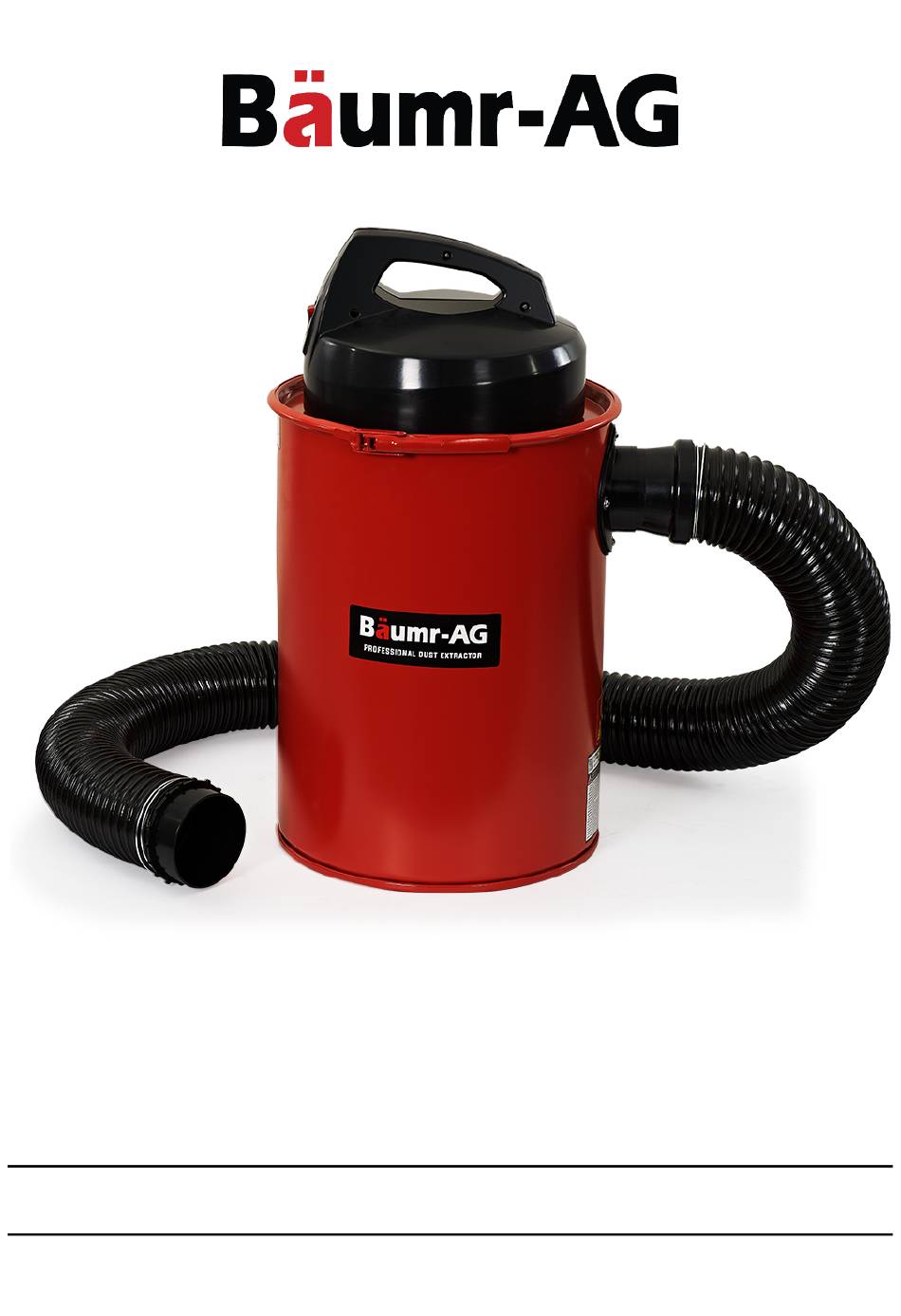

Dust Collector – BM-DD5
User Manual
[Revision 2.0 July 2020]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND
MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in
appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2020 Baumr-AG
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Baumr-AG BM-DD5
- Page 1 Dust Collector – BM-DD5 User Manual [Revision 2.0 July 2020] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Safety
Dust Collector – BM-DD5 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or... - Page 3 Dust Collector – BM-DD5 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
- Page 4 Dust Collector – BM-DD5 Inspect your Machine • Check your machine before starting it. Keep guards in place and in working order. Make sure all nuts, bolts, etc., are securely tightened. • Never operate the machine when it is in need of repair or is in poor mechanical condition. Replace damaged, missing, or failed parts before using it.
- Page 5 Dust Collector – BM-DD5 Residual Risks The manufacturer shall not be liable for any changes made to the machine nor for any damage resulting from such changes. Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors during work.
-
Page 6: Safety Symbols
Dust Collector – BM-DD5 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard Read User Manual... - Page 7 Dust Collector – BM-DD5 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without...
-
Page 8: Table Of Contents
Dust Collector – BM-DD5 Table of Contents Safety ................................2 Safety Symbols ................................6 Parts Identification ............................9 Contents Supplied ..............................9 Know Your Machine ..............................10 Assembly ..............................11 Operation ..............................13 Before Starting ................................13 To Start ..................................13 To Stop .................................. -
Page 9: Parts Identification
Dust Collector – BM-DD5 Parts Identification Contents Supplied The dust collector comes partially assembled and is shipped in carefully packed carton. After all the parts have been removed from the carton, you should have: Name Motor housing Filter cartridge Filter bag... -
Page 10: Know Your Machine
Dust Collector – BM-DD5 Know Your Machine E&OE © 2020 Baumr-AG... -
Page 11: Assembly
Dust Collector – BM-DD5 Assembly Push the suction inlet mouth out of the hole in the drum from inner side, a gasket seal should be positioned inside between the drum wall and the suction inlet. Secure the suction inlet with 4 groups of M5x14 screws, nuts and washers as shown. - Page 12 Dust Collector – BM-DD5 Place the motor housing with filter cartridge/bag on to the collection canister and lock in place with the locking strap. Plug the hose coupling onto the suction inlet. Secure it in place with the supplied hose clamp.
-
Page 13: Operation
Dust Collector – BM-DD5 Operation Before Starting 1. Make sure both the dust collector and dust producing machine are turned OFF. 2. Place the dust collector near the dust producing machine on a flat/level surface. 3. There are four hose adapters supplied. Select the hose adapter that best fits the dust producing machine outlet and attach it to the hose coupler. -
Page 14: Maintenance
Dust Collector – BM-DD5 Maintenance DANGER: Make sure the machine is turned off and the cord is disconnected from the power source before servicing and removing/replacing any components on the machine. General Maintenance Measures Pull the mains plug before any adjustments, maintenance or repair. Have any work on the device that is not described in this manual performed by a professional. -
Page 15: Transport And Storage
Dust Collector – BM-DD5 Transport and Storage • Turn off the power tool before any transport and disconnect it from the power supply. The machine must only be lifted and transported on its top handle. Never lift the machine at the suction hose or the power cord. -
Page 16: Troubleshooting
Dust Collector – BM-DD5 Troubleshooting Problem Cause Remedy No mains voltage. Main circuit Check the socket, mains supply cable, cord, breaker is tripped. mains plug; if necessary, have them repaired the main fuse. Device will not start On switch (green) / Off Switch (red) (1) is broken. -
Page 17: Specifications
Dust Collector – BM-DD5 Specifications Flow Rate 183m³/h Tank/Bag Capacity Intake Hose Diameter 10cm Hose Length Motor 1100W E&OE © 2020 Baumr-AG... - Page 18 ©2020 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
