Thank you for choosing this IDK product.
To ensure the best performance of this product, please read this User's Guide fully and carefully
before using it and keep this manual beside this product.
Power Distribution Unit for IP-NINJAR
IDK Corporation
PDU-1209
User's Guide Ver. 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDU-1209 and is the answer not in the manual?

Questions and answers

Summary of Contents for IDK PDU-1209

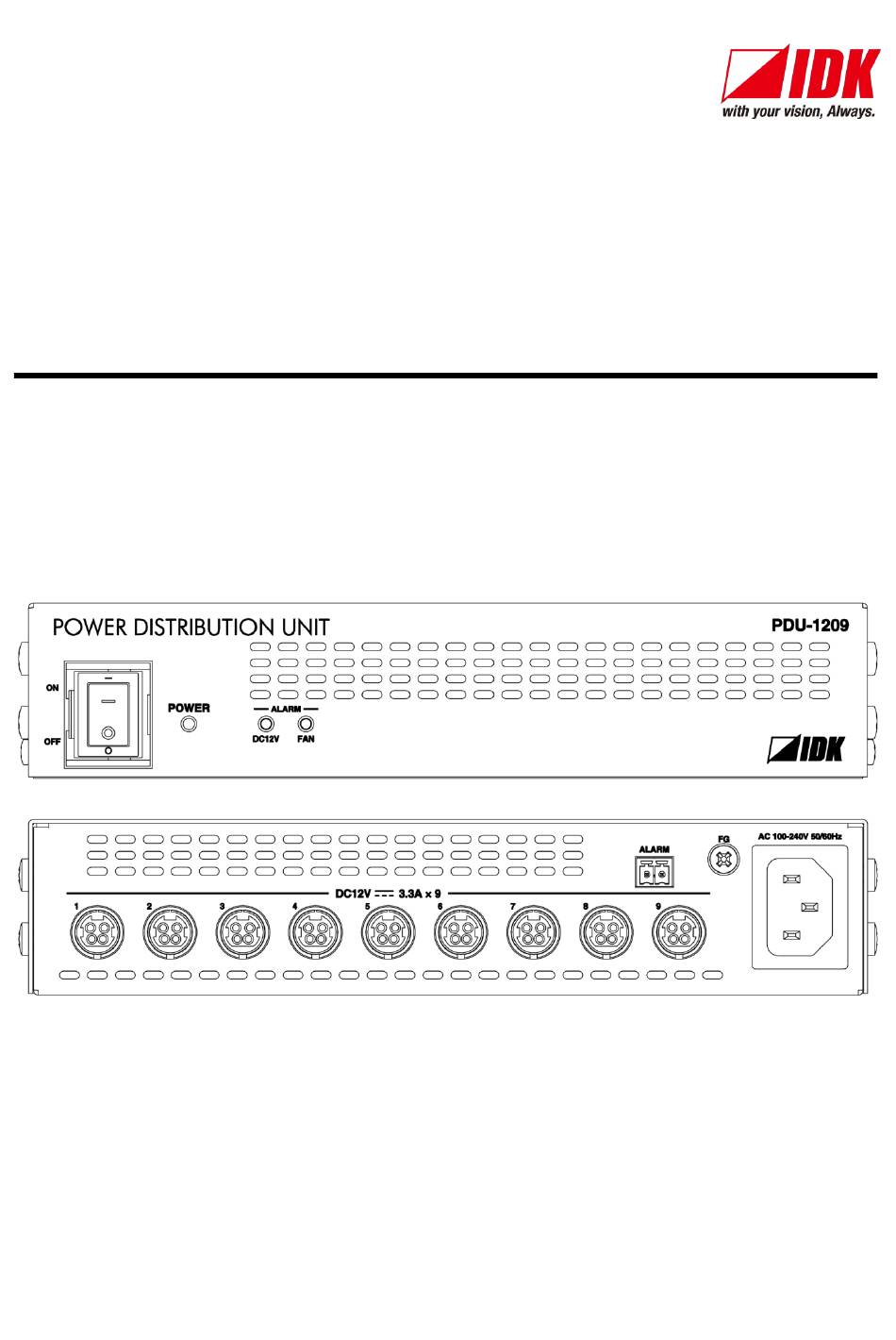

  • Page 1 PDU-1209 User’s Guide Ver. 1.0.0  Thank you for choosing this IDK product. To ensure the best performance of this product, please read this User’s Guide fully and carefully  before using it and keep this manual beside this product.
  • Page 2 PDU-1209 User’s Guide Trademarks  Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association.  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
  • Page 3 ● Some of the contents in this User’s Guide such as product appearance in diagrams, menu operations, communication commands, and so on may differ depending on the version of the product. ● This User’s Guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
  • Page 4 PDU-1209 User’s Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 The product is intended to be installed by skilled technicians. For installation, please contact a system integrator or IDK. Otherwise, it may cause fire, electric shock, injury, or property damage. Set the power plug in a convenient place to unplug easily.
  • Page 6 PDU-1209 User’s Guide Caution Double Pole / Neutral Fusing Electrical Hazard Do not touch the product’s hot surface. If the product is installed without enough space, it may cause failures of other products operation. If you touch product’s hot surface, it may cause burn.
  • Page 7 PDU-1209 User’s Guide Altitude: Do not place the product at elevations of 2,000 meters (6562 feet) or higher above sea level. Failure to do so may shorten the life of the internal parts and result in malfunctions. Instruction Fuse (For products having a fuse holder) Products with a fuse holder, the fuse can be replaced with a new one.

  • Page 8: Table Of Contents

    PDU-1209 User’s Guide Table of Contents Included Items ............................9 Product Outline............................10 Features ..............................11 Front and Rear Panels.........................12 System configuration example ......................13 Precautions and preparations ......................14 Attaching Rubber feet ........................14 Installation ............................14 Cabling ............................15 6.3.1 Connecting to compatible models ....................16 6.3.2...

  • Page 9: Included Items

    PDU-1209 User’s Guide 1 Included Items Ensure that all items below are included in the package. If any items are missing or damaged, please contact IDK. PDU-1209 Power cord (5.9 ft./1.8 m) (1) DIN plug DC cable with a lock (4.9 ft./1.5 m) (9)

  • Page 10: Product Outline

    [Fig. 2.1] Typical application diagram [Table 2.1] Compatible models Series Model number IP-NINJAR products NJR-01UHD, NJR-04HD, NJR-CTB Other IDK products MSD-402, HDC-TH200 Note: Do not use the PDU-1209 for any purpose other than for power distribution to the products listed above.

  • Page 11: Features

    PDU-1209 User’s Guide 3 Features ■ Power supply ・Power distribution for IP-NINJAR products ・Up to 9 independent 12 VDC and 3.3 A simultaneous outputs ・Overcurrent protection ■ Others ・Alarm (in case of excessive DC output current or cooling fan malfunction)

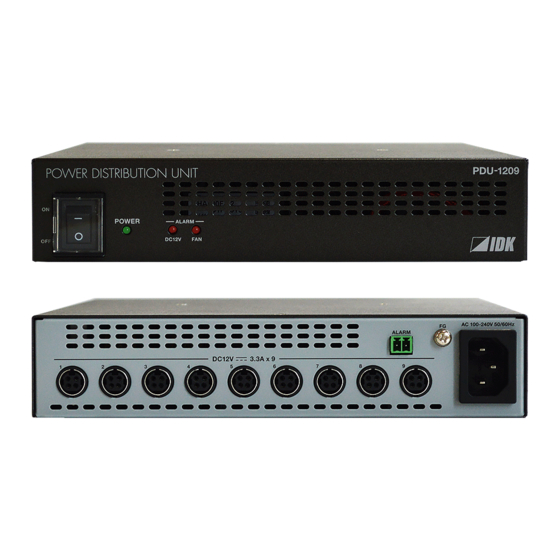

  • Page 12: Front And Rear Panels

    Number ① POWER switch Powers the PDU-1209 ON/OFF. The POWER LED (green) lights when the PDU-1209 is powered on. ② Connects to target devices using DIN plug DC cables. When ① is DC output connectors turned ON, power is supplied to the target devices.

  • Page 13: System Configuration Example

    PDU-1209 User’s Guide 5 System configuration example System configuration example: The PDU-1209 is connected to IP-NINJAR series products which are connected to source and sink devices. Blu-ray Player 4K Monitor Fiber optic Fiber optic Fiber optic Fiber optic IP network...

  • Page 14: Precautions And Preparations

    Before using the PDU-1209, follow the precautions and instructions below. 6.1 Attaching Rubber feet First, clean the bottom surface of the PDU-1209 as needed, and then peal the release papers from the rubber feet and place them in each of the four corners.

  • Page 15: Cabling

    ・Do not connect the AC adapter that is supplied with the compatible models (NJR-01UHD, NJR-04HD, and NJR-CTB, MSD-402, and HDC-TH200) to a DC output connector of the PDU-1209. ・Do not connect the PDU-1209’s DC outputs to one another using the supplied DIN plug DC cable.

  • Page 16: Connecting To Compatible Models

    6.3.1 Connecting to compatible models Use a supplied DIN plug DC cable to connect the PDU-1209 to a compatible product. Insert each DC plug into an output connector until it clicks. To remove a plug from the output connector, grasp the plug as illustrated below.

  • Page 17: Connecting Alarm

    PDU-1209 User’s Guide 6.3.2 Connecting alarm In order to activate the alarm function which warns you of a power failure and a decrease in cooling fan speed, attach the supplied 2-pin terminal block to a cable and connect to the ALARM connector.

  • Page 18: Alarm Conditions

    【See: 7.2 Fan rotating speed slows down】 Note: In case an alarm is output, the PDU-1209 may be damaged. Power off the PDU-1209 and stop using it. Tip: ALARM (DC12V) LED lights if even one DC output connector has an overcurrent condition.

  • Page 19: Overcurrent Protection

    Once an overcurrent condition is detected, the PDU-1209 stops supplying power from the affected DC output connecter temporarily. In order to notify you of the problem, the PDU-1209 outputs an alarm and it lights the ALARM (DC12V) LED. When the overcurrent condition is corrected, the PDU-1209 re-establishes power to the DC output connector automatically.

  • Page 20: Fan Rotating Speed Slows Down

    PDU-1209 User’s Guide 7.2 Fan rotating speed slows down If the fan’s rotational speed decreases due to age-related deterioration or other causes, the PDU-1209 may not operate correctly. If the fan’s rotational speed is insufficient to maintain the correct internal temperature,...

  • Page 21: Product Specification

    PDU-1209 User’s Guide 8 Product Specification Item Description DC power Number/Signal 9 outputs/12 VDC, 3.3 A (designated DC cables are supplied) Output Connector 9 4-pin female DIN Function Overcurrent protection Number/Signal 1 port/signal in case abnormality of DC output or fan is detected...

  • Page 22: Troubleshooting

    PDU-1209 User’s Guide 9 Troubleshooting In case the PDU-1209 does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ･Is the PDU-1209 powered on correctly? ･Are cables connected correctly?
  • Page 23 PDU-1209 User’s Guide User’s Guide of PDU-1209 Ver.1.0.0 Issued on: 14 July 2017 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL: http: //www.idkav.com...
