Infinea BluePad Quick Start Manual

Infinea BluePad
®
Charging Station
(1-Unit)
QUICK START GUIDE
ASSEMBLY
1. Place the Infinea BluePad Charging
Station on a sturdy, clean and dry surface
in an open, well-ventilated area away
from direct sunlight.
2. Gently insert the USB plug into the USB
port on the charger.
3. Connect the other end of the USB cable
to a PC USB port or USB 5V power
adapter.
4. Insert the Infinea BluePad unit into
a charging bay ensuring the battery
contacts are aligned with the bay's
contacts. The LED lights up with the
charging status.
Mini USB Port
ABOUT YOUR INFINEA®
CHARGE STATUS
LED status indicate the charge status:
STATUS INDICATOR LEDS
Green Inserted device is fully charged.
Orange Inserted device is charging.
No LED No device in charging bay or no
power supply is attached the
charger.

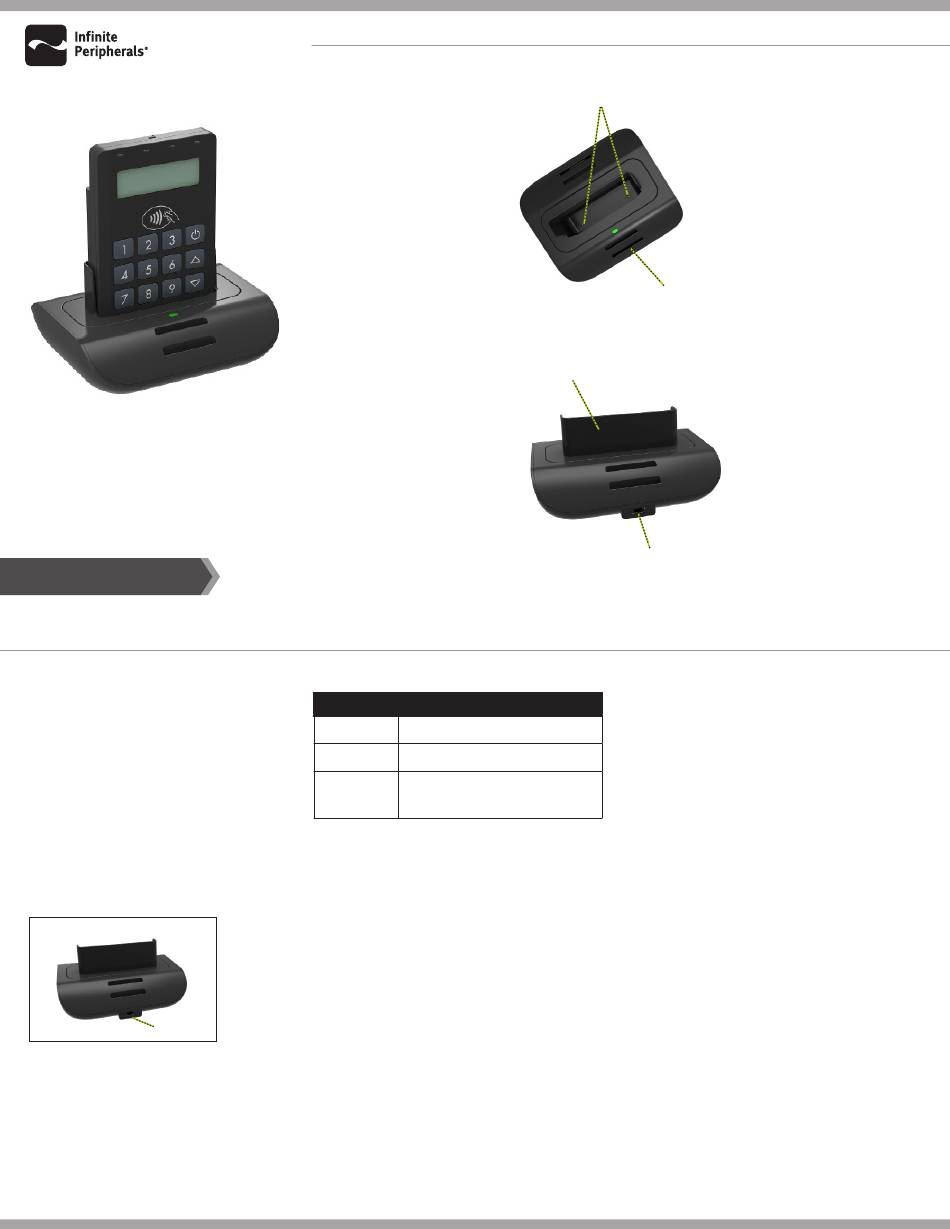

BLUEPAD CHARGING STATION (1-Unit)
Charging Contacts
Cooler Vent
Attachment
Mini USB Connector
TROUBLESHOOTING
The LED does not light up when the Infinea
BluePad is inserted into the charging station.
• Ensure USB cable is securely inserted into
the USB port on the charging station and
connected to the PC USB or USB 5V power
adapter
• Ensure the unit is seated properly in the
charging bay
It takes an excessive amount of time to fully
charge the battery.
• Verify ambient temperature meets the
operating temperature requirements:
Operating: 0°C – 40°C (32°F – 104°F)
