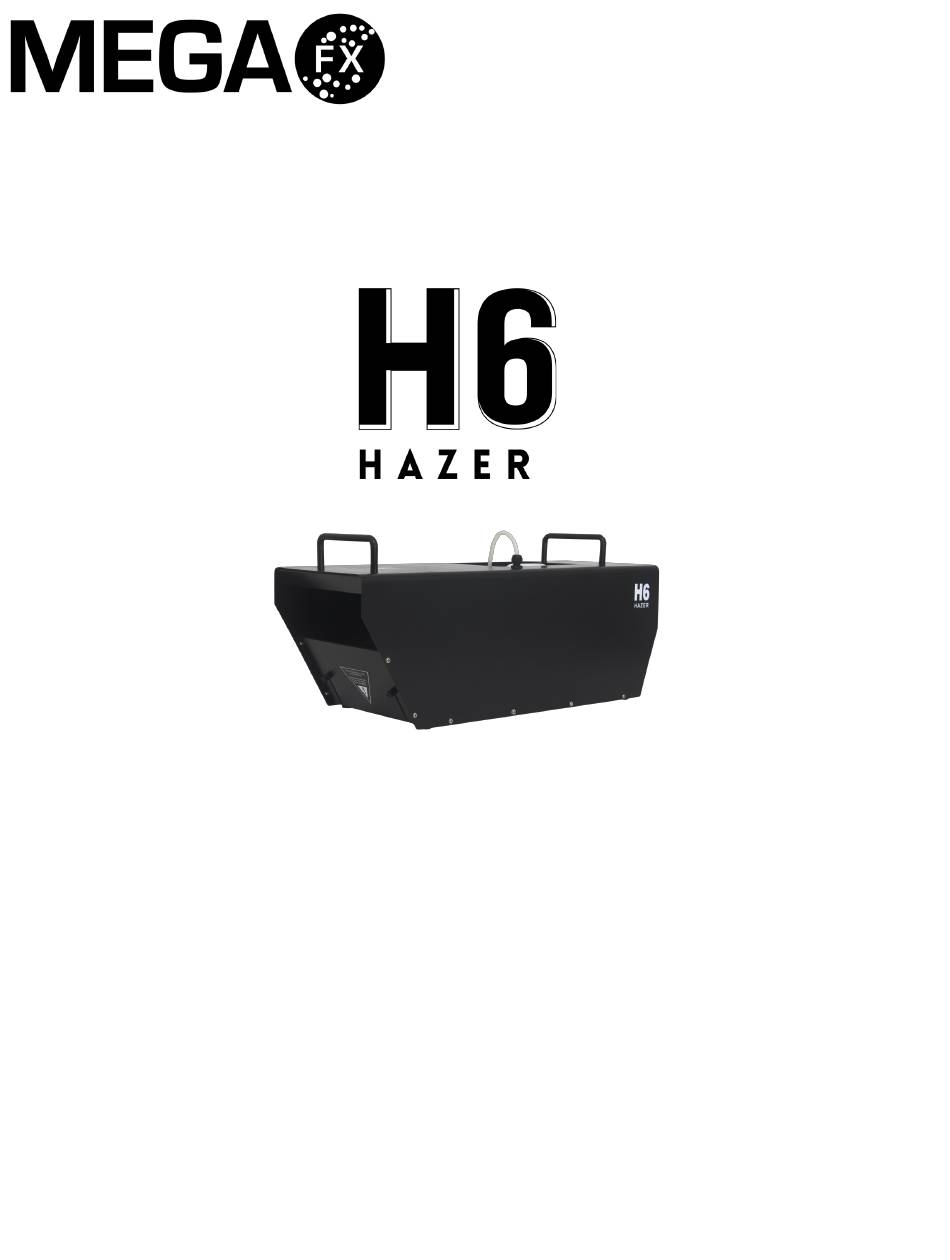

USER MANUAL
Safety Information...............................................................3
Specifications.....................................................................4
Main Power Connection........................................................5
DMX-512 Connection...........................................................5
Size and Weight.................................................................6
Main Control Menu..............................................................7
Wireless Connection............................................................9
DMX Profile.....................................................................................9
Item List...........................................................................9
Installing the Fixture..........................................................10
Cleaning & Maintenance...............................................................10
Advertisement
Table of Contents
Summary of Contents for Mega H6 Hazer
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………3 Specifications………………………………………...…………………4 Main Power Connection…………………………...…………………..5 DMX-512 Connection……………………………..…………………...5 Size and Weight………………………………………………………..6 Main Control Menu……………..…………………………………..….7 Wireless Connection…………………………………………………...9 DMX Profile..................9 Item List…………………………………………………………………9 Installing the Fixture……………………………….…………………10 Cleaning & Maintenance...............10... -
Page 3: Table Of Contents Safety Information
3. This unit must be earthed. (electronically grounded) 4. Do not leave unit on for a long period of time 5. Use only Mega FX water based haze nectar liquid Protection Against Mechanical Hazards 1. Unit is to be placed on a safe platform. -
Page 4: Specifications
Specifications Part Numbers Fixture Flight Case 2006 - H6 Hazer CAS-H6-1 Mechanical Specifications DMX Connectors: 3 -pin XLR connectors Power Connectors: Seetronic IP rated connection to Nema 5-15 cable mounted Housing: Painted Stainless Steel IP Rating: Wireless DMX: Wireless Solutions receiver... -
Page 5: Main Power Connection
120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa- ble for purchase from your Mega-FX dealer (P-DMX-T). -
Page 6: Size And Weight
Size and Weight Size 23.25" X 8.75" X 10.5" Weight 23lb Packaged 26.5" X 12" X 12.25" 25lb 10.5” 8.75” 23.25”... -
Page 7: Main Control Menu
The following will explain each function Version 1.0 and its options. Press FUNCTION Button to access control menu Ready to Use FUNCTION DOWN Mega FX H6 TIMER VOLUME MANUAL FUNCTION DOWN The Functions Below will adjust the hazer output when used in Timer, Volume and Manual Mode. - Page 8 Ready to Use Mega FX H6 FUNCTION DOWN TIMER VOLUME MANUAL DMX 512 Add. DMX Address Temp: 242 Work Use the up down button to give the fixture the DMX start address channel. Once DMX Signal is Present Work will appear in the display.
-
Page 9: Wireless Connection
1. To Connect to wireless DMX transmitter press the func- tion or transmit button on transmitter. 2. Then press the green link button on the H6 Hazer 3. Once connection is found the display will read Work. Wireless DMX Disconnection... -
Page 10: Installing The Fixture
2) The fans input vents need to be cleared from debris and residue. For internal cleaning of the piping system please contact or send fixture to Mega Systems Service Department Note: There is no serviceable parts inside the device. Maintenance and service operations are to be carried out by au- thorized dealers. - Page 11 Customer Support Mega FX has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
