Meccanica Fadini Elpro 27 Instruction Manual

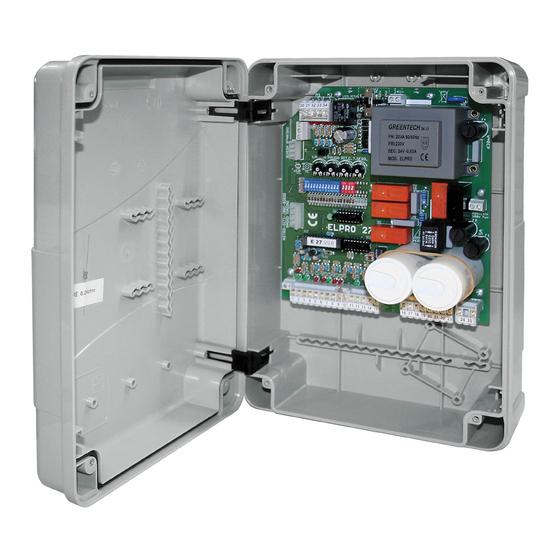

Electronic control box with incorporated motor capacitors; suitable for oil-hydraulic, single or double swinging gates, with or without limit switches and for single or double sliding gates
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Elpro 27
LIBRETTO DI ISTRUZIONI
I
PER APRICANCELLI SCORREVOLI CON FINECORSA MONOFASE 230 V - 50/60 Hz
A 1 O 2 ANTE
INSTRUCTIONS MANUAL
GB
FOR SLIDING GATE OPERATORS WITH LIMIT SWITCHES, S-PHASE 230 V - 50/60 Hz
SINGLE OR DOUBLE GATES
NOTICES D'INSTRUCTIONS
F
POUR OUVRE-PORTAILS COULISSANTS AVEC FINS DE COURSE MONOPHASE 230 V - 50/60 Hz
AVEC 1 OU 2 VANTAUX
BETRIEBSANLEITUNG
D
FÜR SCHIEBETORANTRIEBE MIT ENDSCHALTERN, EINPHASIG 230 V - 50/60 Hz,
MIT EINEM ODER ZWEI TORFLÜGELN
LIBRETTO DI ISTRUZIONI
I
PER APRICANCELLI A BATTENTE OLEODINAMICI MONOFASE 230 V - 50/60 Hz
A 1 O 2 ANTE
INSTRUCTIONS MANUAL
GB
FOR OIL-HYDRAULIC SWINGING ACTUATORS, S-PHASE 230 V - 50/60 Hz
SINGLE OR DOUBLE GATES
NOTICES D'INSTRUCTIONS
F
POUR OUVRE-PORTAILS A BATTANT HYDRAULIQUES MONOPHASE 230 V - 50/60 Hz
AVEC 1 OU 2 VANTAUX
BETRIEBSANLEITUNG
D
FÜR ÖLHYDRAULISCHE DREHTORANTRIEBE EINPHASIG 230 V - 50/60 Hz,
MIT EINEM ODER ZWEI TORFLÜGELN
6893
Dis. N.
Programmatore elettronico con condensatori motore incorporati; idoneo per
I
cancelli battenti a una o due ante, con o senza finecorsa e per cancelli scorrevoli a
una o due ante (max. 0,5 CV con frizione meccanica).
Electronic control box with incorporated motor capacitors; suitable for oil-
GB
hydraulic, single or double swinging gates, with or without limit switches and for
single or double sliding gates (max. 0,5 HP with mechanical clutch).
Programmateur électronique avec condensateurs moteur incorporé; adapté pour
F
ouvre-portails a battant avec 1 ou 2 vantaux, avec ou sans fin de course et pour
ouvre-portail coulissants avec 1 ou 2 vantaux (max. 0,5 CV avec embrayage
mécanique).
Elektronische Steueurung mit eingebauten Motor-Kondensatoren; geeignet für
D
ein-oder zweiflügeligen Drehtore, mit oder ohne Endschaltern und für ein-oder
zweiflügeligen Schiebetore (max. 0,5 PS mit mechanischer Kupplung).
DIP-SWITCH B
ON
OFF
1
DIP-SWITCH B
ON
OFF
1
Via Mantova, 177/A - 37053 Cerea (VR) Italy
Ph +39 0442 330422
info@fadini.net
pag. 2-3-4-5-6-7-8
pages 14-15-16-17-18-19-20
pages 26-27-28-29-30-31-32
Seiten 38-39-40-41-42-43-44
pag. 2-3-9-10-11-12-13
pages 14-15-21-22-23-24-25
pages 26-27-33-34-35-36-37
Seiten 38-39-45-46-47-48-49
Fax +39 0442 331054
www.fadini.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elpro 27 and is the answer not in the manual?

Questions and answers

Related Manuals for Meccanica Fadini Elpro 27

Summary of Contents for Meccanica Fadini Elpro 27

  • Page 1 Elpro 27 Programmatore elettronico con condensatori motore incorporati; idoneo per cancelli battenti a una o due ante, con o senza finecorsa e per cancelli scorrevoli a una o due ante (max. 0,5 CV con frizione meccanica). Electronic control box with incorporated motor capacitors; suitable for oil- hydraulic, single or double swinging gates, with or without limit switches and for single or double sliding gates (max.

  • Page 2: Before Installation

    □ Operator: maintenance inspection at least every 6 months, people. □ Meccanica Fadini snc is not liable for damages while for the electronic equipment and safety systems an caused by the incorrect use of the equipment, or for inspection at least once every month is required.
  • Page 3 General description: the electronic control box ELPRO 27 has been developed to provide a reliable unit to control single or double sliding gate automatic systems with or without limit switches, as well as single or double swinging gate systems fitted with pressure valves; single-phase 230 V - 50/60 Hz. The manufacturer is not liable for any incorrect use of this appliance;...
  • Page 4 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz DIP-SWITCH - B FOR SLIDING GATE AUTOMATIC SYSTEMS WITH LIMIT SWITCHES: dip-switch - B n° 1 = ON 2 3 4 DIP-SWITCH - A Dip-switch A 1 = ON Photocells stop gate in opening...

  • Page 5: Safety Edges

    UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz SAFETY EDGES The two inputs, that are fitted to control the safety edges, are separated for the opening and closing phases. Also, it is possible to select the type of contact connected to them, either NC mechanical or 8,2 kΩ...
  • Page 6 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz ELECTRICAL CONNECTIONS ON SLIDING GATE MODE - dip-switch - B n° 1 = ON Accessory Electrical connections Dip-switch setting and LED indication of functions 24 Vac output: 24 Vac OUTPUT - max load: 12 13 No.
  • Page 7 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz ELECTRICAL CONNECTIONS ON SLIDING GATE MODE - dip-switch - B n° 1 = ON Accessory Electrical connections LED indication of functions Power connections Terminals for the 28 27 26...
  • Page 8 (TX) to this output and OFF: DSA safety control disabled select dip-B n° 4 = ON: if this function is enabled, Elpro 27 checks that all the connected photocell devices are cleared from obstacles and properly working before starting any door/gate movements, 24 Vac output otherwise the door/gate is not started.
  • Page 9 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz DIP-SWITCH - B FOR SWINGING GATE AUTOMATIC SYSTEMS: set dip-switch - B n° 1 = OFF 2 3 4 Dip-switch A DIP-SWITCH - A 1 = ON Photocells stop gate in opening...
  • Page 10 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz SAFETY EDGES The two inputs, that are fitted to control the safety edges, are separated for the opening and closing phases. Also, it is possible to select the type of contact connected to them, either NC mechanical or 8,2 kΩ...
  • Page 11 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz ELECTRICAL CONNECTIONS ON SWINGING GATE MODE - dip-switch - B n° 1 = OFF Accessory Electrical connections Dip-switch setting and LED indication of functions 24 Vac output: 24 Vac OUTPUT - max load: 12 13 No.
  • Page 12 UNIVERSAL ELECTRONIC CONTROL BOX Elpro 27 SINGLE-PHASE 230 V - 50/60 Hz ELECTRICAL CONNECTIONS ON SWINGING GATE MODE - dip-switch - B n° 1 = OFF Accessory Electrical connections LED indication of functions Power connections Terminals for the 28 27 26...

  • Page 13: Party Function

    (TX) to this output and OFF: DSA safety control disabled select dip-B n° 4 = ON: if this function is enabled, Elpro 27 checks that all the connected photocell devices are cleared from obstacles and properly working before starting any door/gate movements, 24 Vac output otherwise the door/gate is not started.
  • Page 14 Elpro 27...
  • Page 15 Elpro 27...

  • Page 16: Dati Tecnici

    Elpro 27 DATI TECNICI TECHNICAL SPECIFICATIONS Alimentazione scheda monofase 230 V ±10% 50/60 Hz Single-phase PCB power supply 230 V ±10% 50/60 Hz Alimentazione scheda trifase Three-phase PCB power supply Potenza max. motori 750 W Max. power of motors 750 W...
