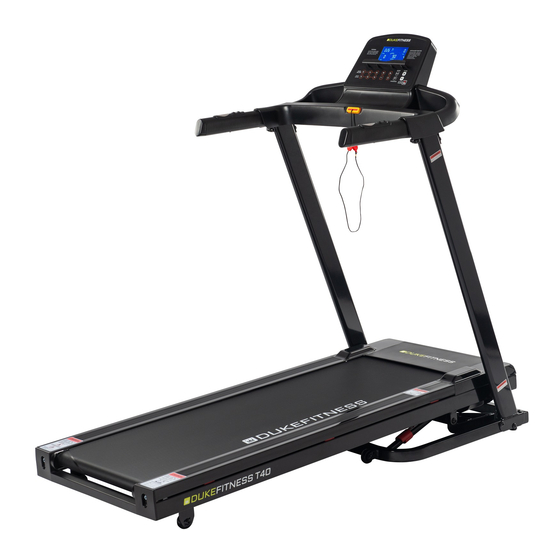

- Page 1 ASSEMBLY AND OPERATING INSTRUCTIONS max. 100 kg ~ 30 Min. 48.5 kg L 149 | W 68 | H 131 DUT40:01.03 Art. No. DU-T40 TREADMILL...
- Page 2 TREADMILL...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Programmes 3.3.1 Quick-Start Programme 3.3.2 Target Programmes 3.3.3 Pre-set Profile Programmes 3.3.4 User-Defined Programmes Body Fat Test STORAGE AND TRANSPORT General Instructions Folding Mechanism... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TREADMILL...
- Page 5 Dear customer, Thank you for choosing a Duke Fitness brand fitness equipment. Duke Fitness offers you fitness equipment that makes it easy to start exercising regularly, stay fit and lose weight. We want to help you to achieve your fitness goals quickly and sustainably and hope that your new fitness equipment will help you to do so.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD - Display of: Training time in minutes Speed in km/h Training distance in km Calories in kcal Incline in % Heart rate (when using the hand pulse sensors) Motor type: DC Motor (1.75HP) Speed: 1–16 km/h Handrail buttons (speed): Hotkeys (speed): Incline:... -
Page 8: Personal Safety
Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING The treadmill is equipped with high- pressure shock absorbers that can cause the treadmill to suddenly open if handled... -
Page 12: Scope Of Delivery
Scope of Delivery WARNING ⚠ Around the treadmill there is a strap that prevents the treadmill from opening during transport. This strap must be removed before assembly. The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. -
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step1: Assemble the upright posts ࣑... - Page 14 Step 2: Assemble the console unit Set up the console unit (66). Mount the console unit (66) to both upright posts (3&4) with a total of two bolts (7). Tighten ths bolts with the tool. Insert the safety key into the opening provided on the console unit.
- Page 15 Step 4: Connecting the equipment to the mains supply ࣑ ATTENTION The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed that the equipment will be supplied with sufficient power. Technical errors can result. Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical safety.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 17: Console Display
Console Display Display of the training time in minutes TIME Display range: 0:00–99:59 Setting range: 5:00–99:00 (in steps of 1 min.) Display of the training distance in km DISTANCE (DIS) Display range: 0.0–99.9 Setting range: 1.0–99.0 (in steps of 1.0 km) Display of the incline INCLINE (INC) Display range: 0–10... -
Page 18: Button Functions
Button Functions INCLINE Hotkeys Hotkeys for setting the incline to 2, 4 or 8. Incline Buttons to adjust the incline in 1% steps. NOTICE Incline +/- To adjust the incline during training, hold down the respective button for more than two seconds. Button to select between the three target programmes: Time Distance... -
Page 19: Programmes
Programmes The following programmes are available: Quick-Start programmes: Target programmes: Pre-set profile programmes: User-defined programmes: 3.3.1 Quick-Start Programme To start the Quick-Start programme, press the START/PAUSE button. The display counts down from 5 to 1, then a beep will sound and the programme will start. NOTICE The dafault value for the speed is 1 km/h. -
Page 20: Pre-Set Profile Programmes
3.3.3 Pre-set Profile Programmes There are a total of 36 pre-set profile programmes available. To select one of the pre-set profile programmes, press the PROGRAM button. NOTICE When you press the PROGRAM button, the view changes in the order of P1–P36. As soon as one of the programs is selected, the value for the time flashes. - Page 21 LEVEL SORT PROGRAM SPEED SPEED SPEED SPEED SPEED 10.0 10.0 10.0 SPEED 10.0 10.0 11.0 SPEED 11.0 10.0 11.0 SPEED 10.0 11.0 SPEED 10.0 11.0 12.0 12.0 SPEED 10.0 10.0 11.0 SPEED 10.0 11.0 10.0 10.0 11.0 SPEED 10.0 10.0 10.0 10.0 10.0...
-
Page 22: User-Defined Programmes
3.3.4 User-Defined Programmes There are a total of three user-defined programmes (U01–U03) available with each ten sections to be set. To select one of the user-defined programmes, press the PROGRAM button. NOTICE The user-defined programmes are placed in the sequence behind the preset programmes. NOTICE If you have already created a user-defined programme, press the MODE button and set the time. -
Page 23: Body Fat Test
Body Fat Test To select the body fat test (FAT), press the PROGRAM button. NOTICE The body fat test is placed in the sequence behind the user-defined programmes. Press the MODE button. The display shows F1 and the value for the gender is shown on the right side of the display. To select the gender (01 for Male, 02 for Female), use the +/- buttons for speed on the console or on the handrail. -
Page 24: Storage And Transport
STORAGE AND TRANSPORT General Instructions ࣑ ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. The storage location should be dry and well ventilated and have a constant ambient temperature between 5°C and 45°C. WARNING ⚠... -
Page 25: Folding Up The Treadmill
4.2.1 Folding Up the Treadmill ⚠ WARNING Do not connect the equipment to the power supply when it is folded up. Try not to operate the equipment when it is folded up. The running surface must have come to a complete stop before folding. ⚠... -
Page 26: Transportation Wheels
Transportation Wheels ࣑ ATTENTION If you want to transport your equipment over particularly sensitive and soft floor coverings, such as parquet, planks or laminate, lay out the transport route with cardboard or similar to avoid possible floor damage. Stand behind the equipment and lift it until the weight is transferred to the transportation wheels. -
Page 27: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 28: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. E-01: Communication wire damaged/not connected, console, transformer or controller damaged. -
Page 29: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 30: Re-Tensioning The Running Mat
5.4.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 31: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display console... -
Page 32: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 33: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Duke / treadmill Model Name: Article Number: DU-T40... -
Page 34: Parts List
Parts List Name Qty. Base frame Platform frame Upright post(L) Upright post(R) Console frame Ezfit linking parts Hexagon large flat head full tooth bolt M8×10 Cover fixed tube painting part painting parts for lifting frame Hexagonal large flat head half bolt M10×25×15 Hexagon socket head bolt M8×75 Hexagon socket head bolt M8×25 Cross recessed countersunk head tapping screw ST4×25... - Page 35 External serrated lock washer Φ5 Hexagon lock nut M8 communication wire L-1100MM communication wire L-500MM communication wire L-850MM Photoelectric sensor L-300 Handle pulse set Incline handle pulse set Handle pulse communication wire L-800MM Controller Safety key Power connection wire L-200MM red Power connection wire L-200MM black Rocker switch Self-reset switch...
- Page 36 Circular strip guide Double pipe plug Pipe strip Incline motor Incline axle sleeve TREADMILL...
-
Page 37: Exploded Drawing
Exploded Drawing... -
Page 38: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. Error Descriptions Your fitness equipment is developed for long-term, high-quality training. - Page 39 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 40: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 41 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store for www.sport-tiedje.co.uk home fitness equipment with currently 80 stores www.sport-tiedje.de/blog and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 web shops www.facebook.com/SportTiedje in the respective national language or have their desired equpiment assembled on site.
- Page 42 Notes TREADMILL...
- Page 44 TREADMILL...
